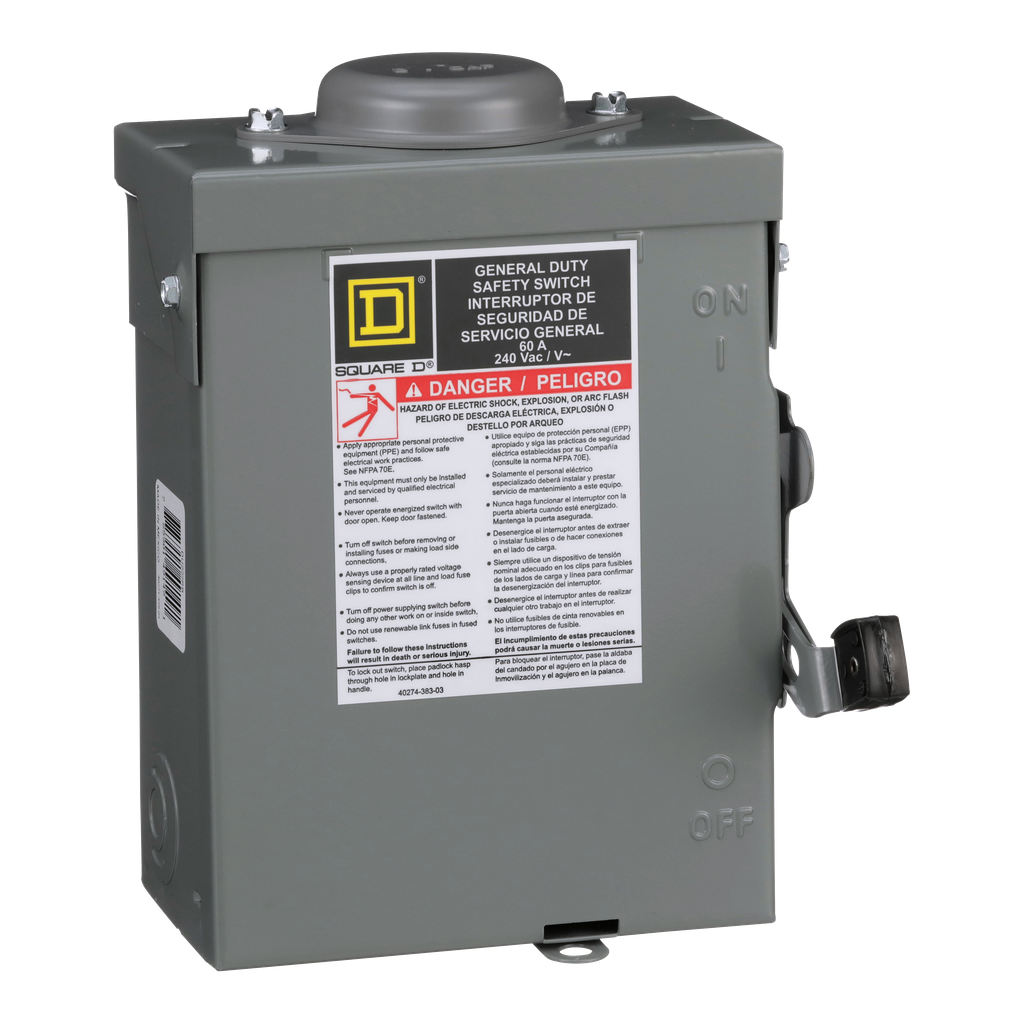

Square D DU222RBUP Safety Switch Not Fused 2P 60A 240V NEMA-3R

Product Description

The Square D DU222RBUP is a non-fusible disconnect safety switch designed for both residential and commercial use. This switch is rated for two poles and 60 amps at 240 volts, providing essential protection and control for various electrical loads including lighting and air conditioning.

• Designed for general duty applications.
• Meets UL standards for safety and reliability.
• Surface mounted with an enclosure rating of NEMA 3R.

Product Highlights

The DU222RBUP safety switch is ideal for service equipment when equipped with a neutral assembly or grounding kit. It features lugs that accommodate a range of wire sizes and is built to handle short circuit ratings of 10kA.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• Type: Non-fusible disconnect switch; Single Throw Safety Switch
• Height: 9.63 inches
• Width: 7.75 inches
• Depth: 3.75 inches
• Weight: 3.97 lb
• Current: 60 Amp
• Voltage: 240 Volt
• Wire Size: AWG 12 to AWG 3 aluminium; AWG 14 to AWG 3 copper
• Warranty Length: 18 months
