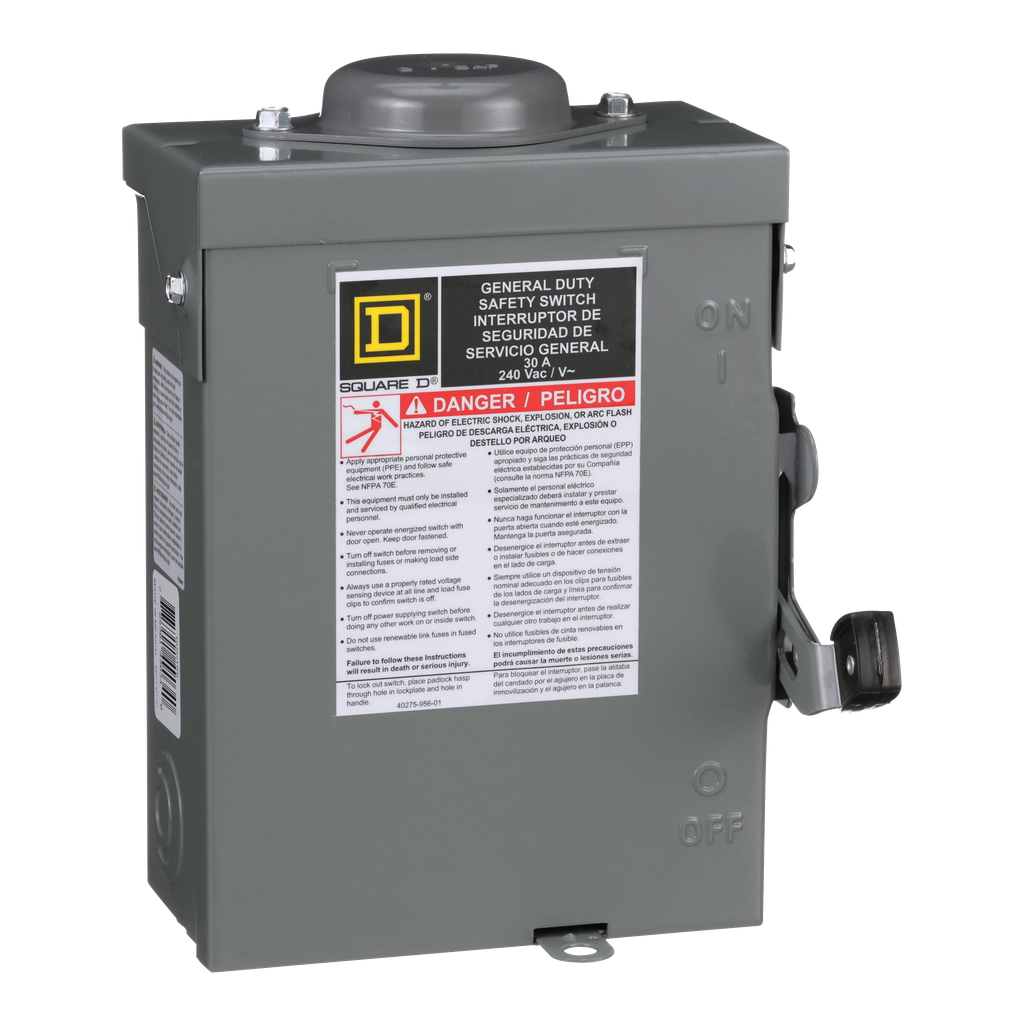

Square D DU221RBUP 30A 2Pole General Duty Single Throw Safety Switch Non-Fusible NEMA-3R

Product Description

The Square D DU221RBUP is a 30 amp, 2 pole general duty single throw safety switch. It is designed for residential and commercial use. This switch is ideal for applications where both durability and affordability are important. Typical use cases include lighting, air conditioning, and various appliances.

• Rated for 30 amps and 240 volts with a NEMA 3R rating.
• UL Listed and adheres to NEMA Standard KS1.
• Surface mounted and suitable for both residential and commercial applications.

Product Highlights

This safety switch features a non-fusible disconnect and comes equipped with lugs for electrical connections compatible with AWG 14 to 6 copper and AWG 12 to 6 aluminum wire. The product dimensions are nine and sixty-three hundredths inches in height, seven and seventy-five hundredths inches in width, and three and seventy-five hundredths inches in depth. It also includes an 18-month warranty.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: DU221RBUP
• Current Rating: 30 Amp
• Voltage Rating: 240 Volt
• Enclosure Rating: NEMA 3R
• Number of Poles: 2 Pole
• Weight: 3.97 lb
• Dimensions: 9.63 in (H) x 7.75 in (W) x 3.75 in (D)
• Warranty Length: 18 months
