Product Description

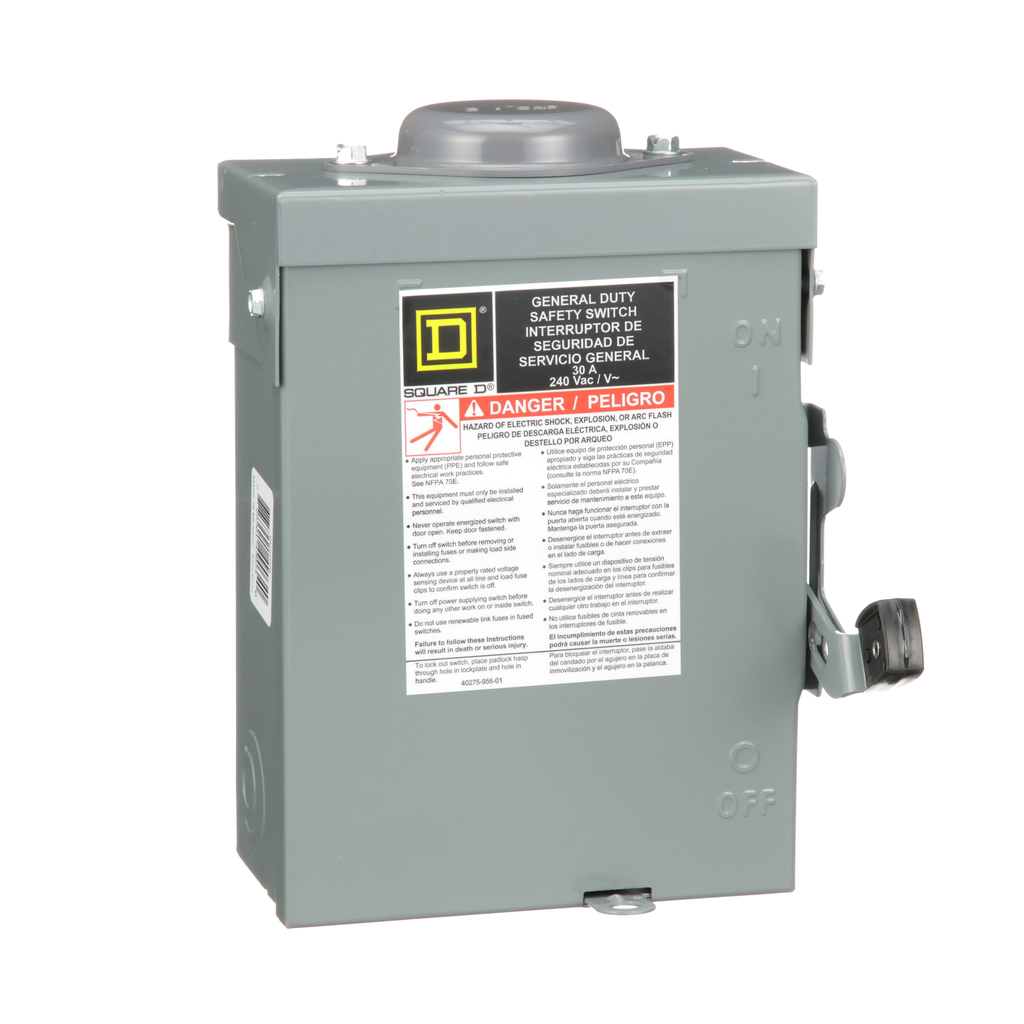

The Square D DU221RB is a safety switch not fusible rated at thirty amps and designed for two poles with a voltage of two hundred forty volts. It is suitable for both residential and commercial applications, handling typical loads like lighting and air conditioning. This non-fusible switch is ideal for service equipment when properly equipped with a neutral assembly or grounding kit. The switch meets UL standards and is NEMA rated at three R, ensuring safety and reliability in various environments.
- UL Listed and meets NEMA Standard KS1
- Surface mounted with lugs for electrical connections
- Dimensions: nine point six three inches height, seven point seven five inches width, three point seven five inches depth
Product Highlights
This product is a general duty safety switch that does not come with a neutral. It is surface mounted and equipped to accept wires ranging from AWG fourteen to AWG six for copper, as well as AWG twelve to AWG six for aluminum.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer: Schneider Electric
Technical Specifications
-
Catalog Number: DU221RB
-
Rated Current: 30 Amps
-
Voltage Rating: 240 Volts
-
NEMA Rating: 3R
-
Number of Poles: 2
-
Short Circuit Rating: 10kA
-
Mounting Type: Surface
-
Weight: 16.98 lbs
