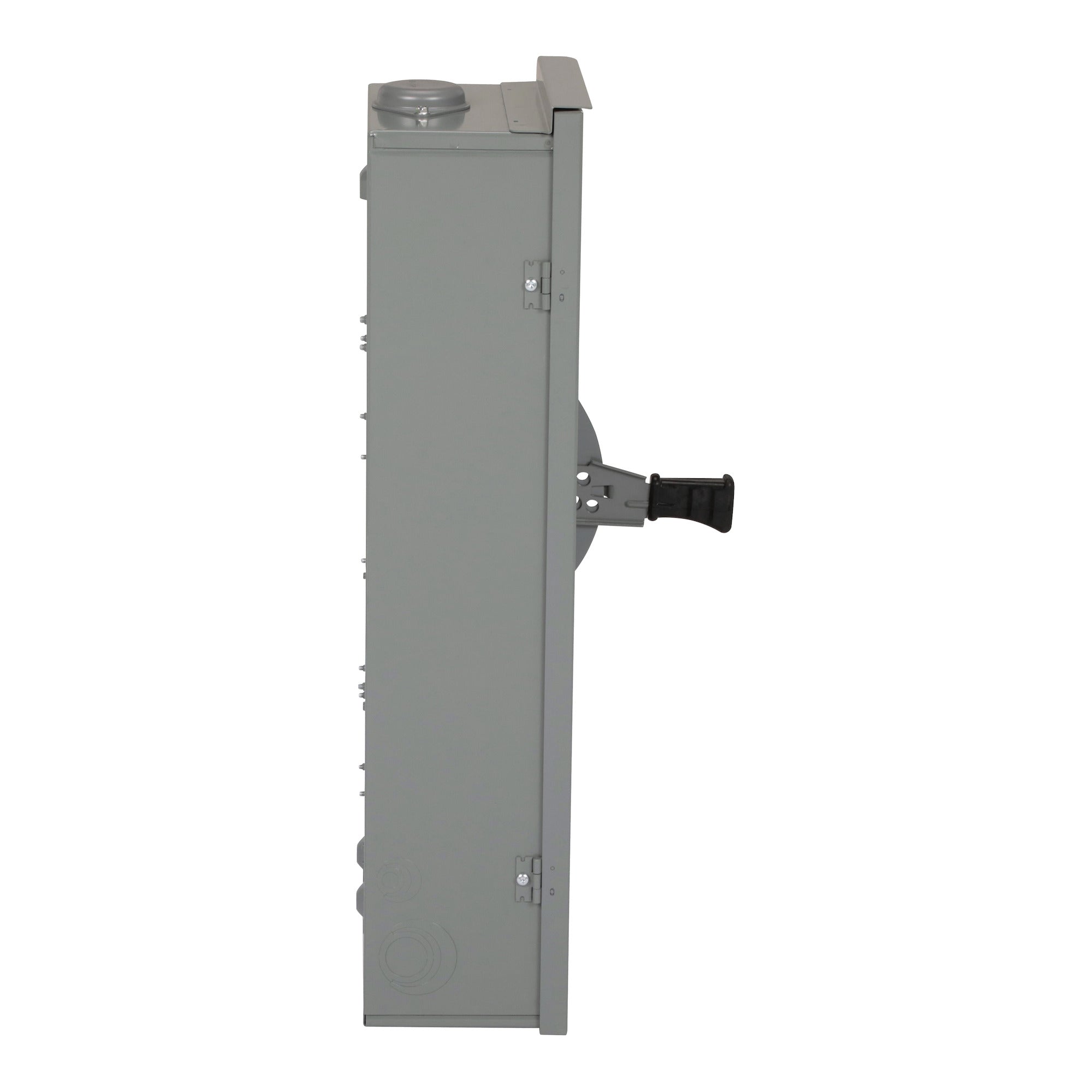

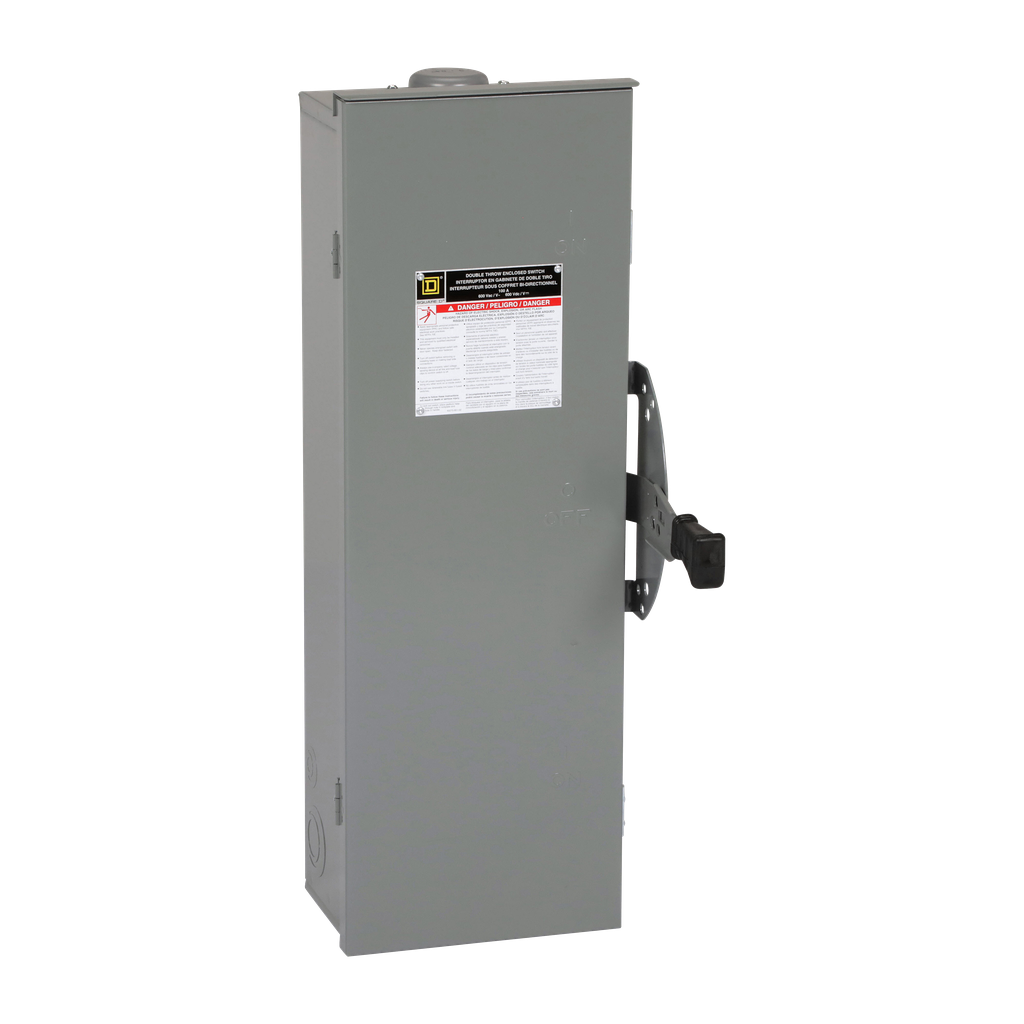

Square D DTU363RB Safety Switch Not Fusible NEMA-3R 600V 100A 3P

Product Description

The Square D DTU363RB is a double throw safety switch from Schneider Electric. This device is rated for 100 amps and operates at 600 volts. It is designed for reliable performance in various environments including residential, light commercial, and industrial applications.

• Transfers load between different power sources.
• Surface mounted with NEMA 3R rating for outdoor use.
• UL listed for safety compliance.

Product Highlights

This switch provides a safe and efficient method to control electrical loads with the ability to lock in the on or off position. It meets rigorous safety standards and is suitable for various applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: DTU363RB
• Rated Current: 100 Amps
• Voltage: 600 Volt
• Number of Poles: 3 Pole
• Enclosure Type: NEMA 3R
• Weight: 40.50 lb
• Height: 30.83 inches
• Width: 11.96 inches
• Depth: 6.93 inches
• Wire Type: AWG 12 to AWG 1/0 Aluminium; AWG 14 to AWG 1/0 Copper
