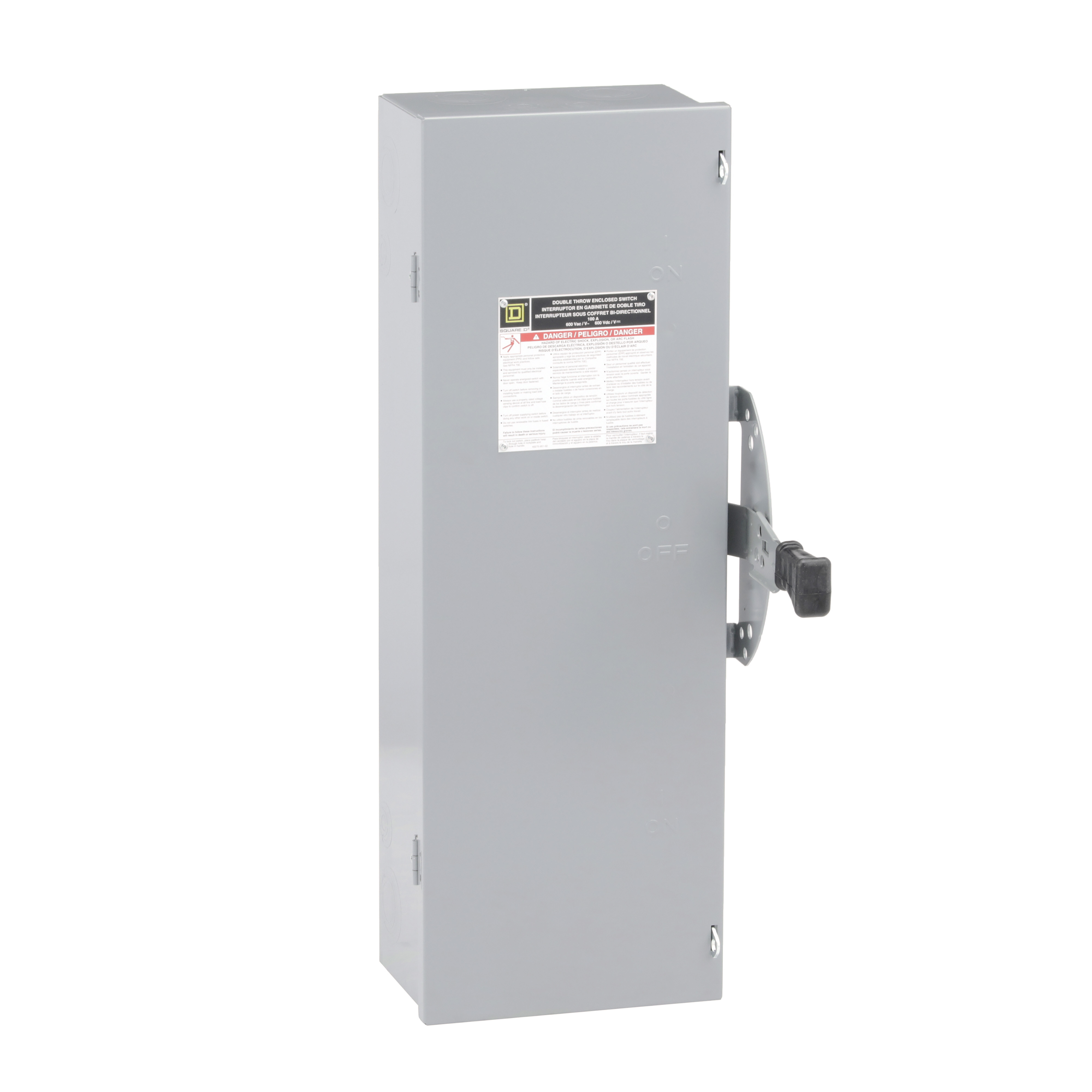

Square D DTU363 Safety Switch Not Fusible NEMA-1 600V 100A 3P Double Throw

Product Description

The Square D DTU363 by Schneider Electric is a non-fusible double throw safety switch designed for use in residential, light commercial, and industrial settings. It features a rugged design allowing it to withstand challenging environments and ensure reliable power transfer between two sources. The switch operates with a current rating of one hundred amps and supports voltages up to six hundred volts. It is equipped with a unique mechanism for quick load transfer and is suitable for applications requiring high mechanical endurance.

• Rated current of one hundred amps.
• NEMA 1 enclosure for indoor use.
• UL listed for safety and reliability.

Product Highlights

This switch allows power source transfer in installations where safety and performance are critical. It can be mounted on surfaces and provides a lockable mechanism in both ON and OFF positions.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: DTU363
• Width: 11.96 in
• Height: 29.94 in
• Depth: 6.93 in
• Weight: 39.00 lb
• Voltage: 600 Volt
• Amperage: 100 Amp
• Material: Steel
• Enclosure Rating: NEMA 1
• Conductor Size: AWG 12 to AWG 1/0 aluminium; AWG 14 to AWG 1/0 copper
• Warranty: 18 months
