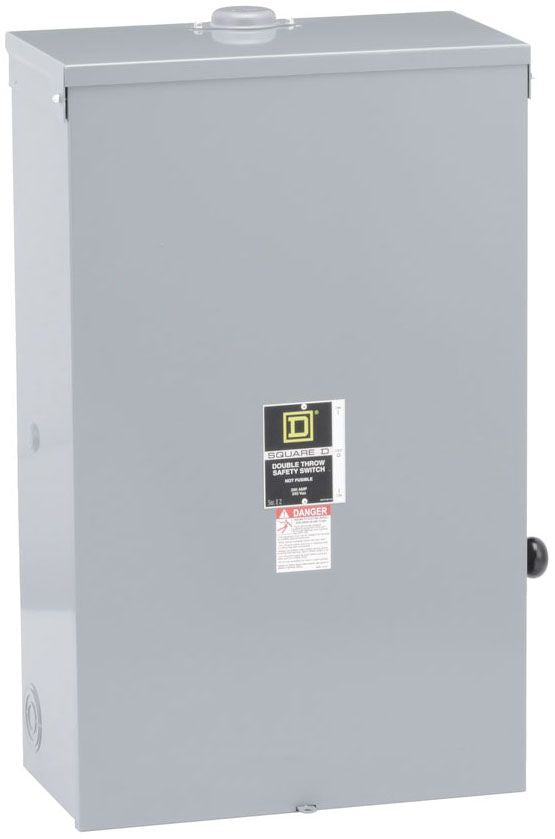

Square D DTU224NRB Switch Not Fusible Double Throw 200A 2P Nema3R/Neutral

Product Description

The Square D DTU224NRB is a manual transfer type switch designed for double throw operations. This switch features a 200 Ampere current rating and is ideal for both residential and commercial applications. The enclosure is made of galvannealed steel, offering durability and weather resistance.

• Manual Transfer Type with a NEMA 3R Enclosure
• Compatible with 240 Volt AC and 250 Volt DC Systems
• Appropriate for use with 15 HP at 240 VAC 1-Phase

Product Highlights

The Square D DTU224NRB switch is engineered to meet demanding safety standards while providing reliable performance as a non-fusible double throw safety switch.

Product Information

Standard Information

• Brand: Square D Co.
• UPC: 78590117452

Technical Specifications

• Catalog Number: DTU224NRB
• Enclosure: NEMA 3R
• Size: 24 inches W x 10.63 inches D x 32.5 inches H
• Enclosure Material: Galvannealed Steel
• Approval: UL
• Current Rating: 200 Ampere
• Power Rating: 15 HP at 240 VAC 1-Phase
• Number of Poles: 2
• Neutral Type: Solid
• Type: Manual Transfer
• Fuse Provision: Non-Fusible
• Application: Residential, Light Commercial, and Industrial Installation
• AC Voltage Rating: 240 V
• DC Voltage Rating: 250 V
• Full Technical Description: Manual Transfer Type; 24 inches W x 10.63 inches D x 32.5 inches H Size; Galvannealed Steel Enclosure Material; UL Approval; NEMA 3R Enclosure; 200 Ampere Current Rating; 15 HP at 240 VAC 1-Phase Power Rating; 2 Poles; Solid Neutral Type
