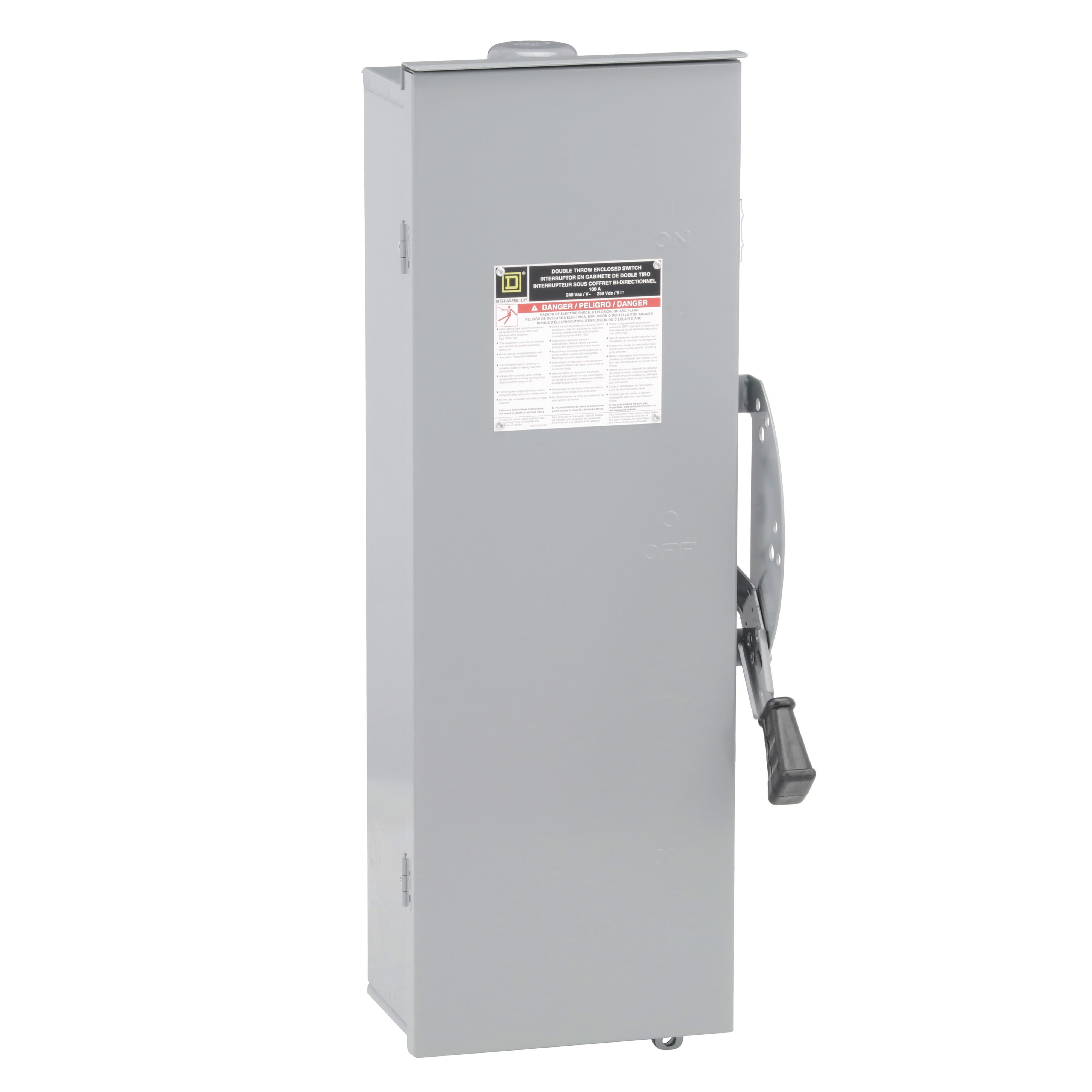

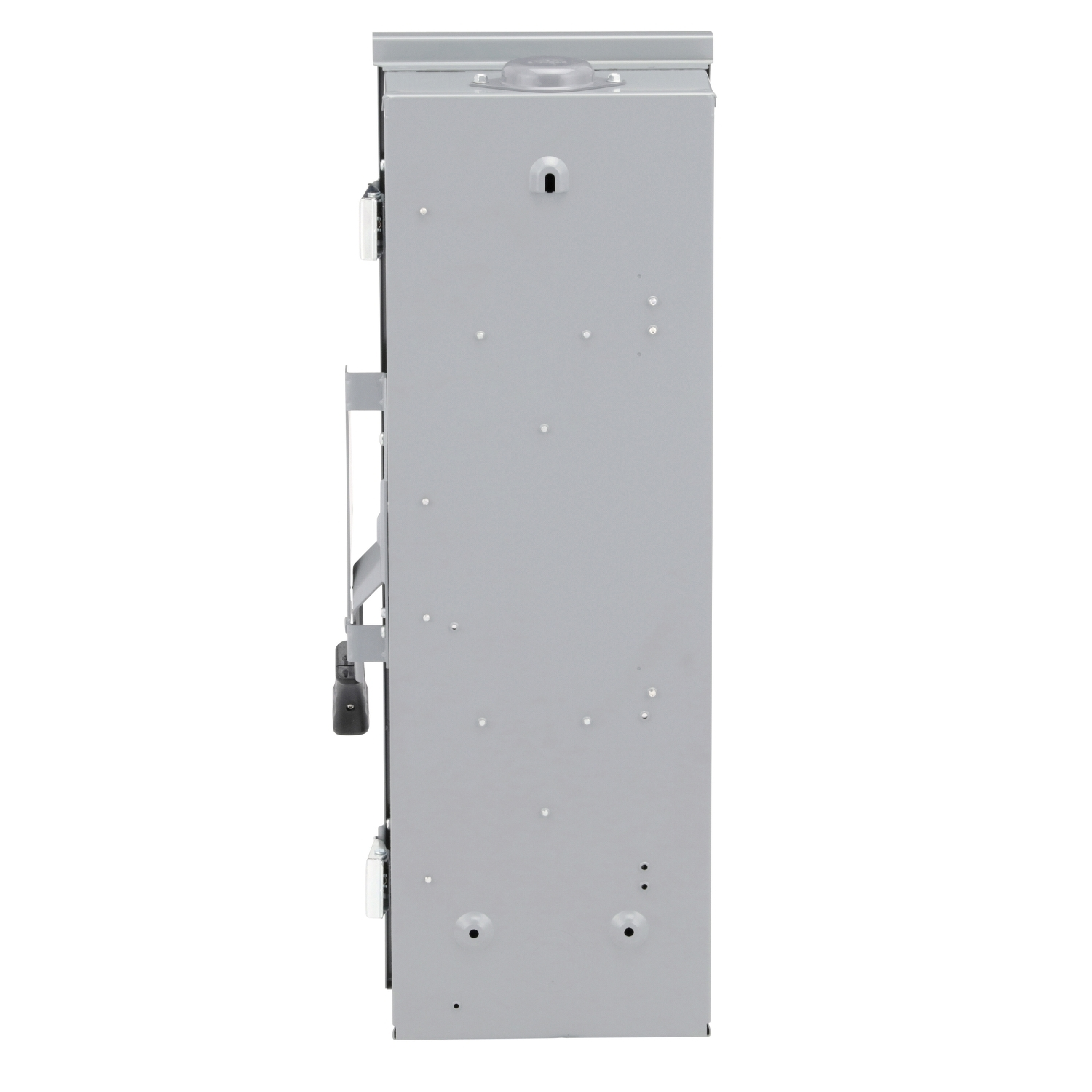

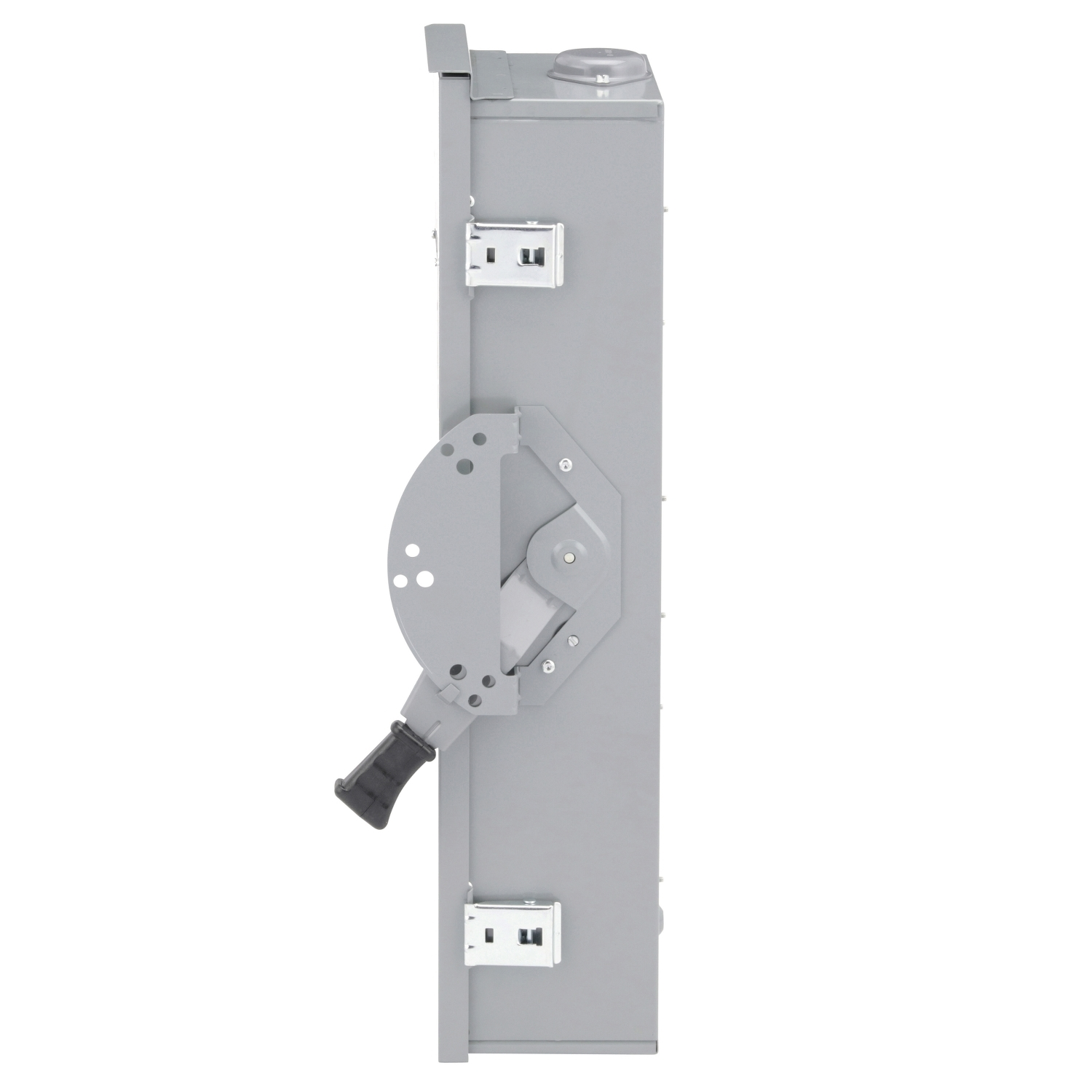

Square D DTU223RB Safety Switch Not Fusible NEMA-3R 240V 100A 2P, Double Throw

Product Description

The Square D DTU223RB Double Throw Safety Switch by Schneider Electric is designed for durability and exceptional performance in demanding conditions. Suitable for residential, commercial, and industrial use, it transfers loads between power sources. The switch features a 100A rated current and an operational voltage of 240VAC & 250VDC. It is surface mounted with a NEMA 3R galvannealed steel enclosure and accepts AWG 12-1/0 (Al) and AWG 14-1/0 (Cu) wire gauges.

• Designed to be tough and reliable
• Provides exceptional performance in grueling conditions
• Suitable for residential, light commercial, and industrial installations

Product Highlights

This Square D double throw safety switch ensures reliable power transfer with a robust design and NEMA 3R protection.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: DTU223RB
• Country of Origin: United States

Technical Specifications

• Catalog Number: DTU223RB
• Brand: Square D
• Manufacturer: Square-D / Schneider
• Current: 100 Amp
• Voltage: 240 Volt
• Amperage: 100 Amp
• Material: Steel
• Enclosure: NEMA 3R
• Fuse Type: Class H, K, R, J or T
• NEMA Size: 3R
• Wire Size: AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
• Mounting Type: Surface
• Certifications: UL
• Number of Poles: 2 Pole
• Country of Origin: USA
• Line Rated Current: 100 A
• Short Circuit Current: 10 kA
• Environmental Conditions: RAINPROOF AND SLEET/ICE PROOF (INDOOR/OUTDOOR)
• Type: Non-fusible disconnect switch;Double Throw Safety Switch
• Depth: 6.93 Inch
• Width: 11.96 in
• Height: 30-1/2 Inch
• Wire Type: AWG 12...AWG 1/0 ALUMINIUM-AWG 14...AWG 1/0 COPPER
• Conductor Size: 12-1/0 AWG (AL)/14-1/0 AWG (CU)
• Enclosure Material: Stainless Steel
• Made in USA: Yes
• Mounting: Surface
• UPC: 785901308492
• GTIN: 00785901308492
• Rated Current: 100A
• Operational Voltage Rating: 240VAC & 250VDC
• Neutral: No neutral installed
• Wire Gauges: AWG 12/AWG 1/0(Al), & AWG 14/AWG 1/0(Cu)
• HP: 15 hp @ 240V AC
• Duty: Heavy
• Item: Safety Switch
• Phase: 1
• Amps AC: 100 A
• IP Rating: 14
• Standards: UL listed
• Environment: Indoor/Outdoor
• Contact Form: 2PDT
• Current Type: AC
• Current Rating: 100 A
• For Fuse Class: Not Applicable
• Mounting Style: Surface Mount
• Enclosure Depth: 6 - 12 inches
• Enclosure Width: 10 to 19 3/4 inches
• Gauge/Conductor: 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper)
• Number of Wires: 2
• Enclosure Height: 30 inches and larger
• Housing Material: Steel
• Protection Method: Nonfusible
• NEMA Enclosure Type: 3R
• UL 98 Certification: Yes
• Fusible / Nonfusible: Nonfusible
• Horsepower @ 240V AC: 15 hp
• Horsepower @ 480V AC: 75 hp
• Horsepower @ 600V AC: 100 hp
• NEMA Enclosure Rating: 3
• Metallic / Non-Metallic: Metallic
• Material of Construction: Steel
• Combo Features x Includes: Neutral Assembly Included: No
• Neutral Assembly Included: No
• Combo Environmental Protection: Indoor/Outdoor / 3
• Country of Origin (subject to change): United States
• AC Voltage Rating: 240 V
• DC Voltage Rating: 250 V
• Power Rating: 15 HP at 240 VAC 1-Phase (Maximum), 20 HP at 250 VDC
• Fuse Provision: Non-Fusible
• Neutral Type: No
• Approval: UL, UL (Canada and US)
• Applicable Standard: ANSI/NSFA 70, NEC 702, NEMA KS-1
• Disconnector Device Type: non-fusible disconnect switch
• Product Or Component Type: Double Throw Safety Switch
• Series Name: heavy duty
• Nema Degree Of Protection: NEMA 3
• [Ue] Rated Operational Voltage: 240 V AC || 250 V DC
• Device Mounting: surface
• Short-Circuit Current: 10 kA H or K || 200 kA R, J or T
• Awg Gauge: AWG 12...AWG 1/0 aluminium || AWG 14...AWG 1/0 copper
• Product Certifications: UL Listed
• Voltage Rating: 240/250
• Amperage Rating: 100
• Alternative Part Number: 8130943
• Short Circuit Current Rating: 200
• Finish: Hot Dipped Galvanized
• Series: F5 Series
• Horsepower: 15 hp, 20 hp
• Voltage Rating UOM: VAC/VDC
• Amperage Rating UOM: A
• IGCC: 5216
• UNSPSC: 39122218
• ECCN: EAR99
• NEMA Rating: 3R
