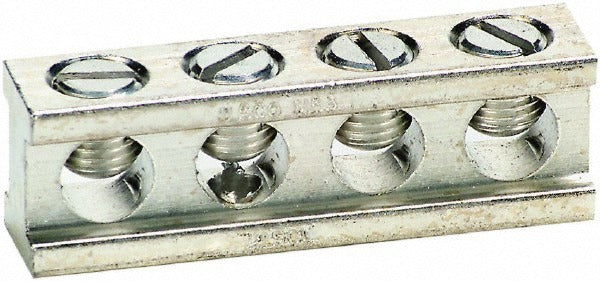

Square D DT100SG Equipment Ground Lug 200 Amp

Product Description

The SQUARE D DT100SG is an equipment ground lug accessory designed for use with 200-amp safety switches. Ground lugs provide a secure, code-compliant termination point for equipment grounding conductors, ensuring proper fault-current paths within the electrical enclosure. This lug mounts directly to compatible safety switch hardware and is installed by licensed electricians during new installations or service upgrades. At 0.08 pounds and compact dimensions, it integrates cleanly without adding bulk to the switch assembly. It is a direct replacement or add-on accessory for qualifying SQUARE D safety switch models rated at 200 amps.

This ground lug is suited for residential and light commercial electrical installations where a dedicated equipment ground termination is required inside a safety switch enclosure. Electricians use this accessory when the base switch configuration does not include a pre-installed ground lug or when an additional grounding point is needed to meet NEC requirements. It is shipped individually and is ready for field installation without modification.

Key Features

• Rated for 200-amp safety switch applications
• Provides a dedicated equipment grounding conductor termination point
• Compact form factor at 5.5 inches long, 3 inches wide, and 0.6 inches tall
• Lightweight at 0.08 pounds for easy handling during installation
• Sold individually — no additional accessories required for basic installation

Compatibility

Designed as an OEM-style accessory for SQUARE D 200-amp safety switches requiring an equipment ground lug termination point.

Installation Notes

Installation should be performed by a qualified, licensed electrician. Disconnect and lock out all power to the safety switch before beginning work, following OSHA lockout/tagout procedures. Verify compliance with applicable NEC articles governing equipment grounding conductor sizing and termination. Do not overtighten the lug fastener beyond the switch manufacturer's documented torque specification for the enclosure terminal hardware.
