Square D DASKGS400 Transformer Lug Kit Mechanical 201-400AMP

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: DASKGS400
Availability: In Stock

Ships same day if ordered by 12 pm
$185.24
$185.24
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

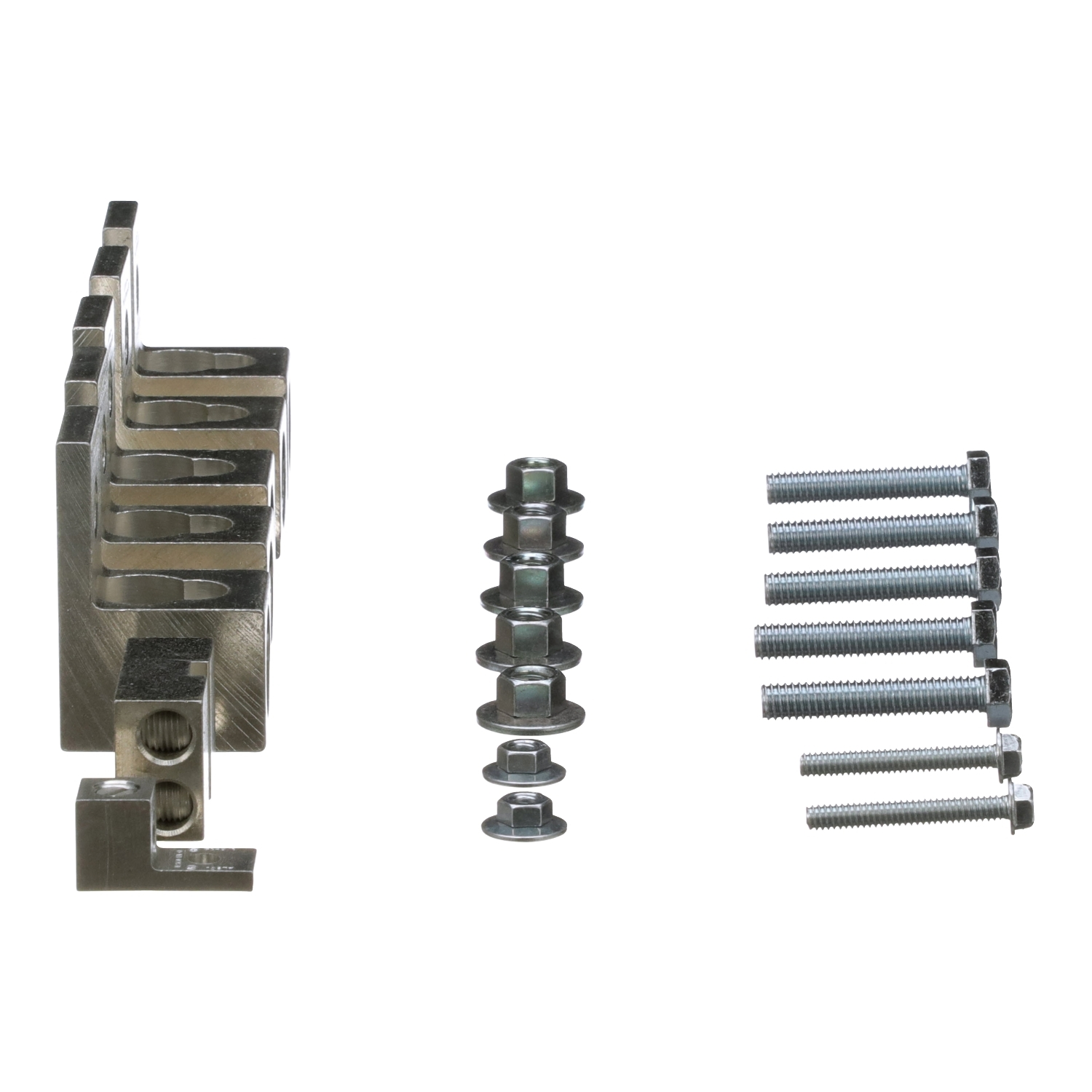

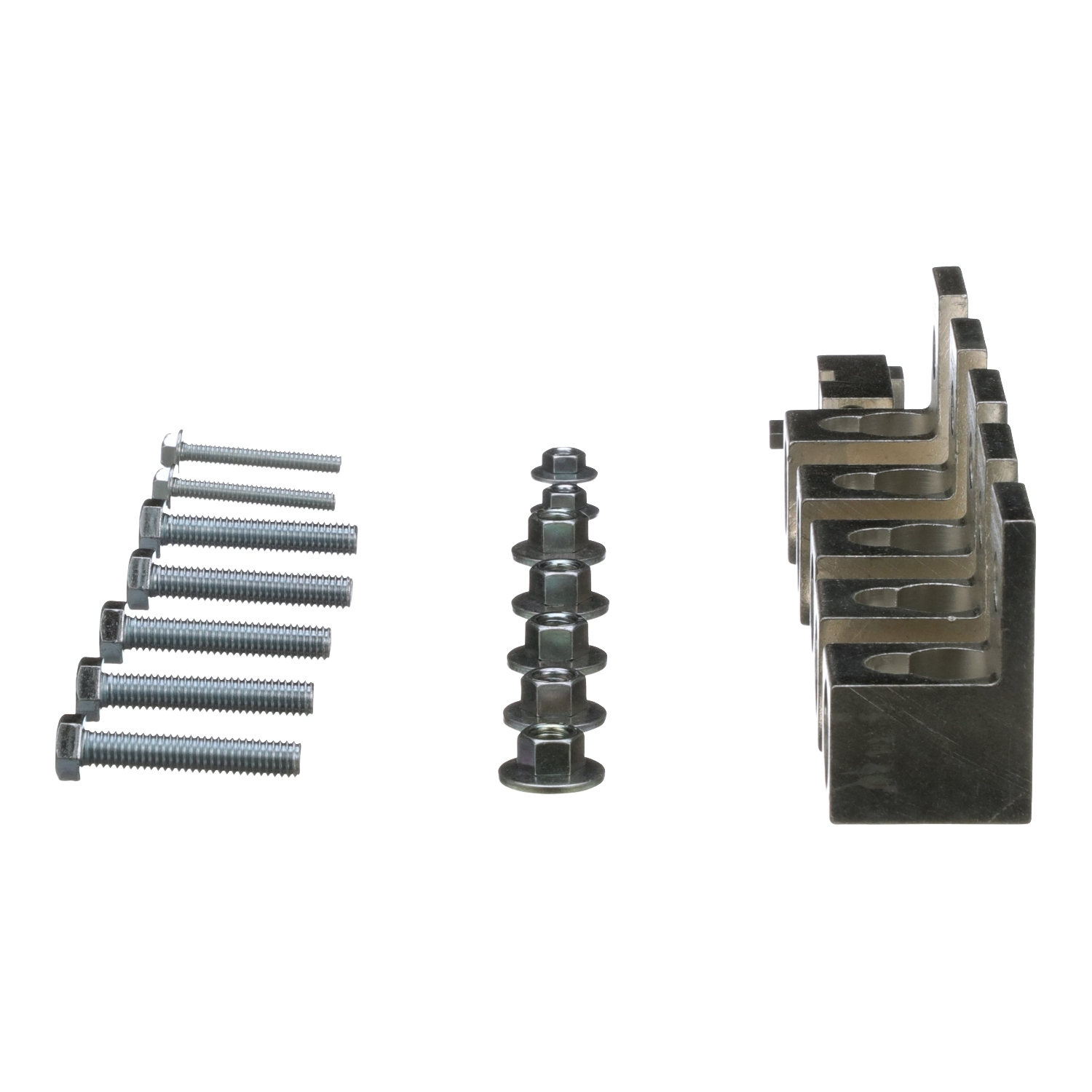

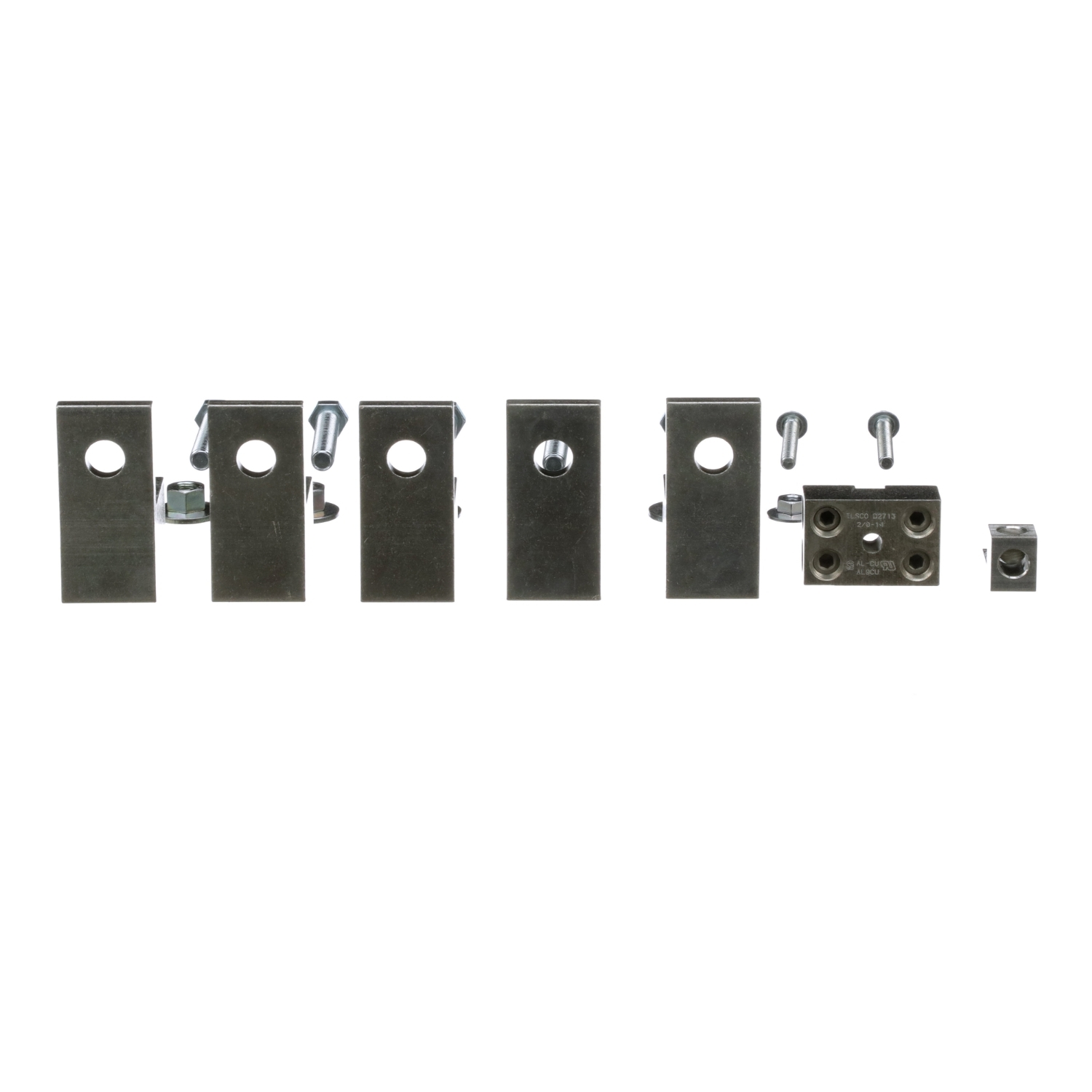

The Square D DASKGS400 is a mechanical lug kit, an electrical accessory suitable for transformers. Designed for low voltage, general purpose transformers, this kit meets demands with reliable products. It is made of aluminum and comes in a set of 5, requiring AWG 14/AWG 2/0.

  • Mechanical Lug Kit
  • 400A
  • Made of aluminum

Product Highlights

The Square D DASKGS400 mechanical lug kit is an essential electrical accessory for transformers, ensuring secure and reliable connections.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: DASKGS400
  • Country of Origin: United States
Technical Specifications
Type
Mechanical lug
Brand
Square D
Amperage
400 Amp
Material
Aluminum
Line Rated Current
400 A
Manufacturer
Schneider Electric
Catalog Number
DASKGS400
Made in USA
Yes
UPC
785901480266
GTIN
00785901480266
Item Type
Mechanical lug
Transformer Type
General Purpose Dry Type
Terminal Size
5 Terminal (4 AWG Stranded to 600 KCMIL, (2) 1/0 AWG Stranded to 250 KCMIL), (4) 14 AWG Stranded to 2/0 AWG, 14 AWG Stranded to 1/0 AWG
Cap Screw Size
3/8 Inch x 2 Inch
Current Rating
201 to 400 Ampere
Includes
(1) Bonding Lug, (1) Grounding Lug, (5) Phase Lugs, Hardware
For Use With
EE112T211H, EE112T3H, EE112T65H, EE112T67H, EE75T211H, EE75T3H, EE75T65H, EE75T67H, EP112T3HNISCUNP, EP75T3HNISCUNP, HM112T208HNCUEP, HM112T208NCU, HM112T255HNCUEP, HM112T255NCU, HM75T208NCU, HM75T255HNCUEP, HM75T255NCU, Mfr. No. HM75T208HNCUEP
Accessory Type
Lug Kit
Provided Equipment
lug 1 , ground AWG 14...AWG 2/0 || nut 7 , || bolt 7 , || lug 5 , secondary AWG 4...600 kcmil stranded) || bonding lug 1 , AWG 14...AWG 1/0 stranded)
Product Destination
transformer
Product Or Component Type
mechanical lug
Description/Special Features
Phase Conductors, 600 kcmil- 4 STR, or (2) 250 kcmil - 1/0 STR
Accessory / Separate Part Category
electrical accessory
Country of Origin (subject to change)
United States
Lugs per kit
5
Wire Range
4 AWG to 600 kcmil or (2) 1/0 to 250 kcmil
Application
1Ph Primary-3Ph Wye or Delta Secondary Transformer
Requires
AWG 14/AWG 2/0
Quantity Per Set
set of 5
Standards
California Proposition 65
Suitable For
Mechanical Set Screw Transformer
Specifications
3/8 x 2 in Cap Screw
Number of Pieces
5
Suitable For Use With
1-Phase Primary and Secondary, 3-Phase Wye Secondary and 3-Phase Delta with Center Tap Transformer
Style
Mechanical
Type of finish
Polished
Part number
DASKGS400
Product model number
DASKGS400
Finish
Polished
Quantity of item packages
1
Included components
DASKGS400
Are batteries included?
No
Are batteries needed?
No
ASIN
B00CON8TWC
ECCN
EAR99
UNSPSC
39121001
Use With
1- or 3-Phase Delta Center-Tap or 3-Phase Wye Transformer
