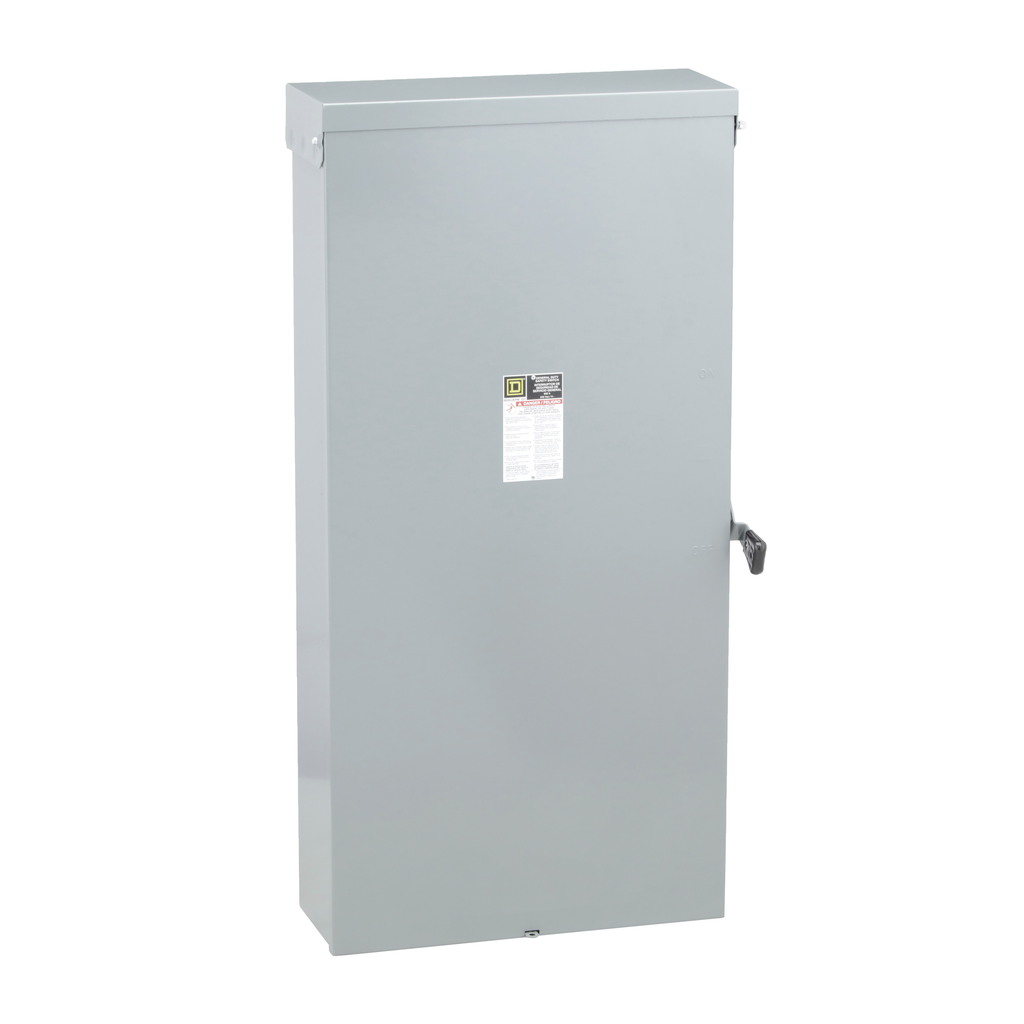

Square D D326NR Fusible General Duty Safety Switch 600 Amp 240 Volt NEMA 3R

Product Description

The Square D D326NR is a fusible general duty safety switch designed for residential and commercial use. This switch operates at two hundred forty volts and can handle six hundred amps. It features a three-pole configuration and has a NEMA 3R enclosure for outdoor use. It is UL Listed and meets or exceeds the NEMA Standard KS1.

• Fusible disconnect switch with factory-installed neutral.
• Short circuit rating of one hundred kA.
• Dimensions are forty-nine point thirteen inches in height, twenty-five point thirteen inches in width, and eight point eight eight inches in depth.

Product Highlights

This safety switch is suitable for various applications, including lighting, air conditioning, and appliances.

Product Information

Standard Information

• Catalog Number: D326NR
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Fusible disconnect switch; Single Throw Safety Switch
• Current Rating: 600 Amp
• Voltage Rating: 240 Volt
• Weight: 116.85 lb
• Enclosure Rating: NEMA 3R
• Short Circuit Current: 100 kA
• Mounting Type: Surface
• Country of Origin: Mexico
