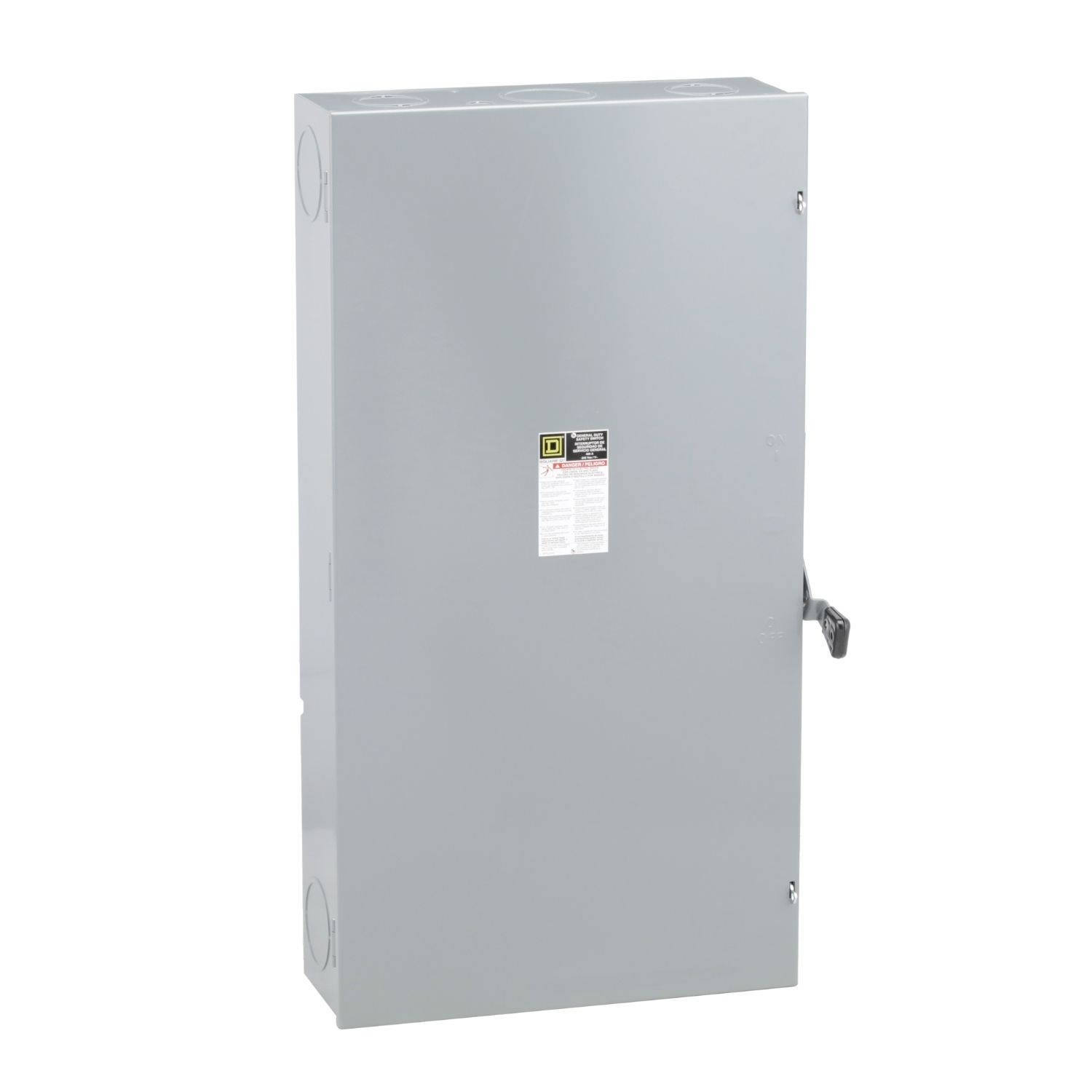

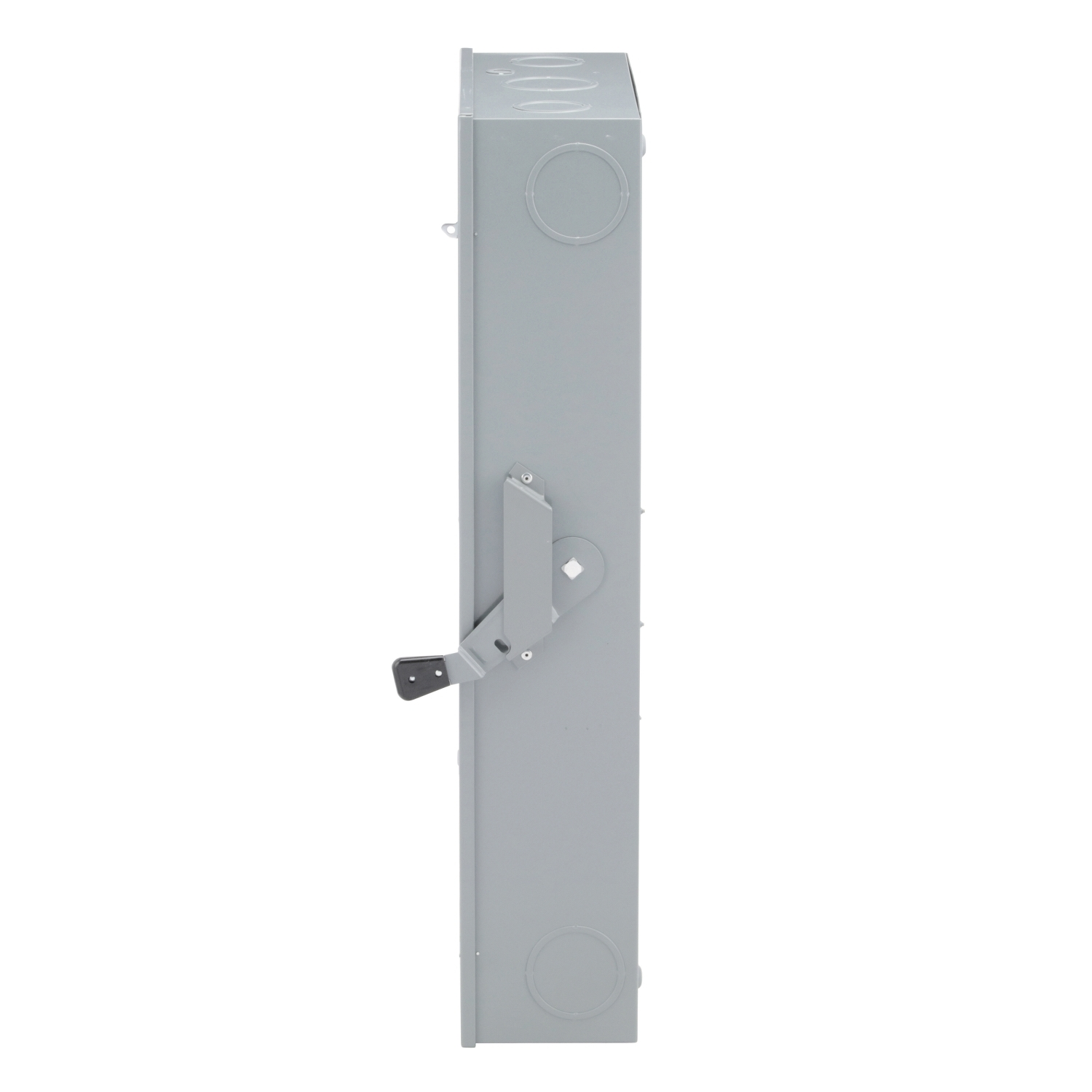

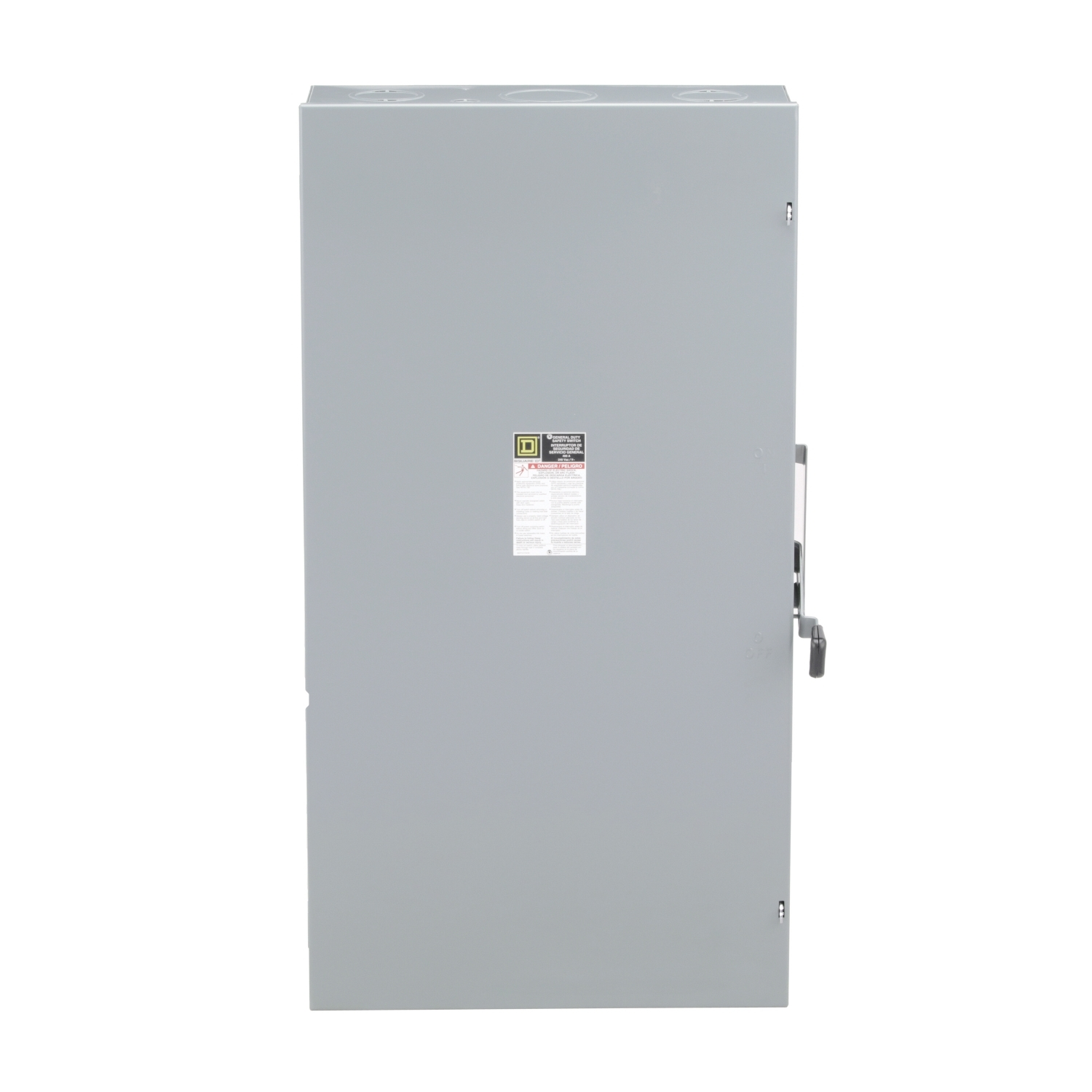

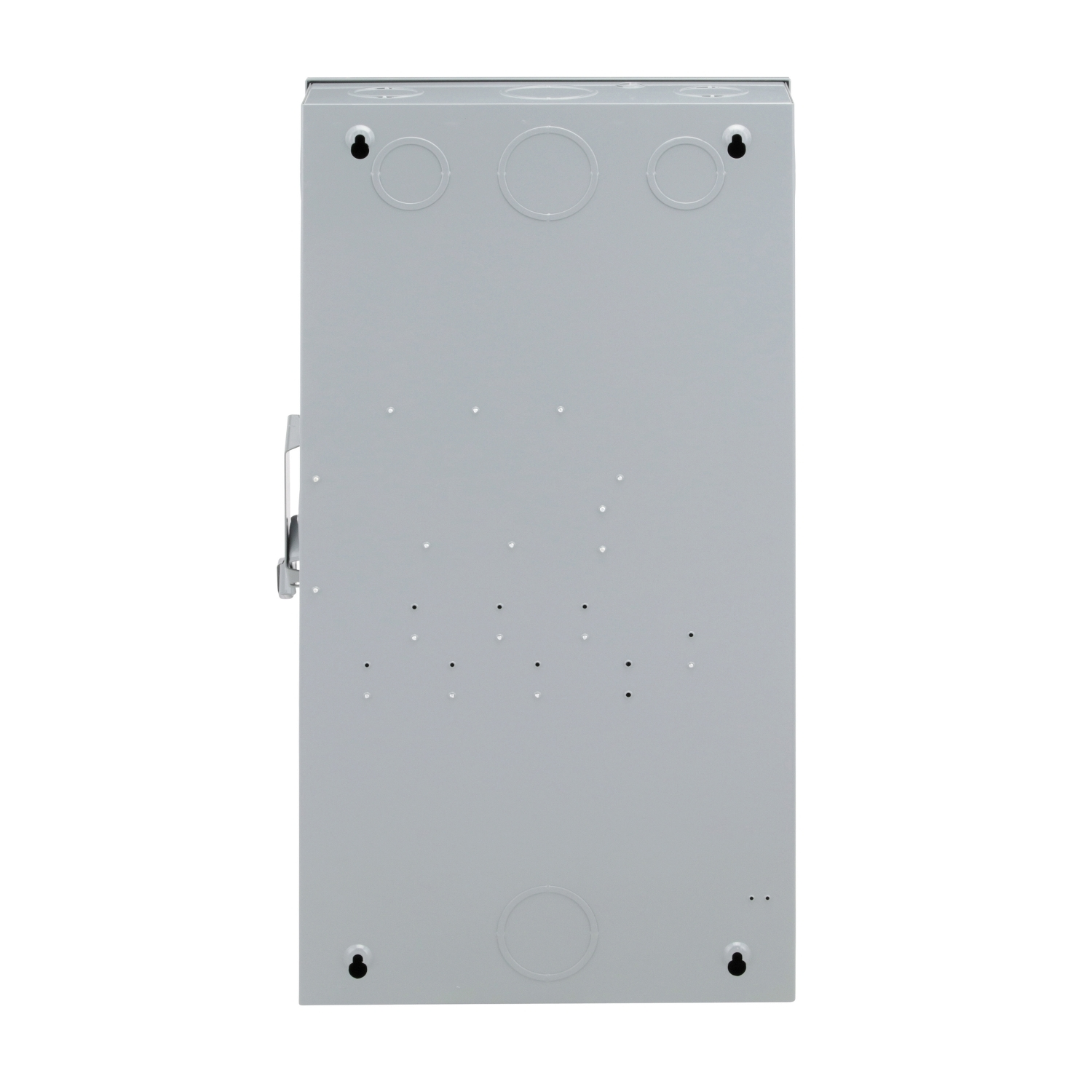

Square D D325N Safety Switch Fusible GD 240V 400A 3P NEMA-1

Product Description

Square D D325N is a safety switch designed for general duty applications. This fusible disconnect switch has a rated current of four hundred amps and operates at two hundred forty volts AC. It features three poles and is suitable for both residential and commercial use. The switch is equipped with a factory-installed neutral and has NEMA one protection.

• Fusible disconnect switch rated for 400 amps at 240 volts AC
• NEMA one degree of protection for indoor installations
• UL listed and meets NEMA standards for safety

Product Highlights

This safety switch is ideal for various loads including lighting, air conditioning, and appliances. It is designed for quick make and break operation, ensuring efficient performance in demanding environments.

Product Information

Standard Information

• Brand: Square D
• MPN: D325N

Technical Specifications

• Height: 45.12 inches
• Width: 24.88 inches
• Depth: 8.88 inches
• Weight: 114.64 pounds
• Short Circuit Current Rating: 100 kA
• Amperage: 400 Amps
• Voltage: 240 Volts AC
• Number of Poles: 3
• Enclosure Rating: NEMA 1
• Fuse Types Supported: H, J, or R
• Wiring Configuration: 4-wire (3PH + G)
• Country of Origin: Mexico
• Warranty Length: 18 months
