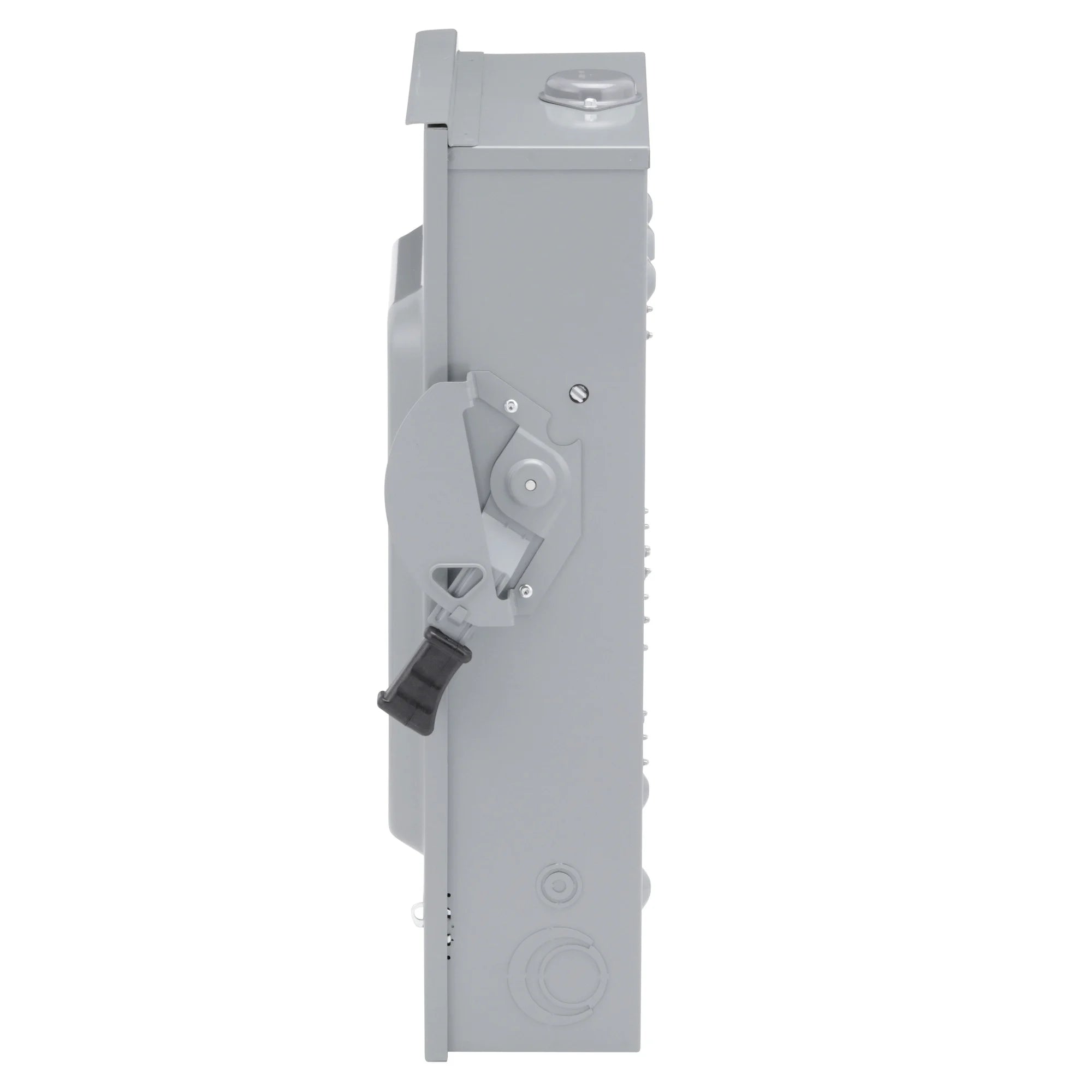

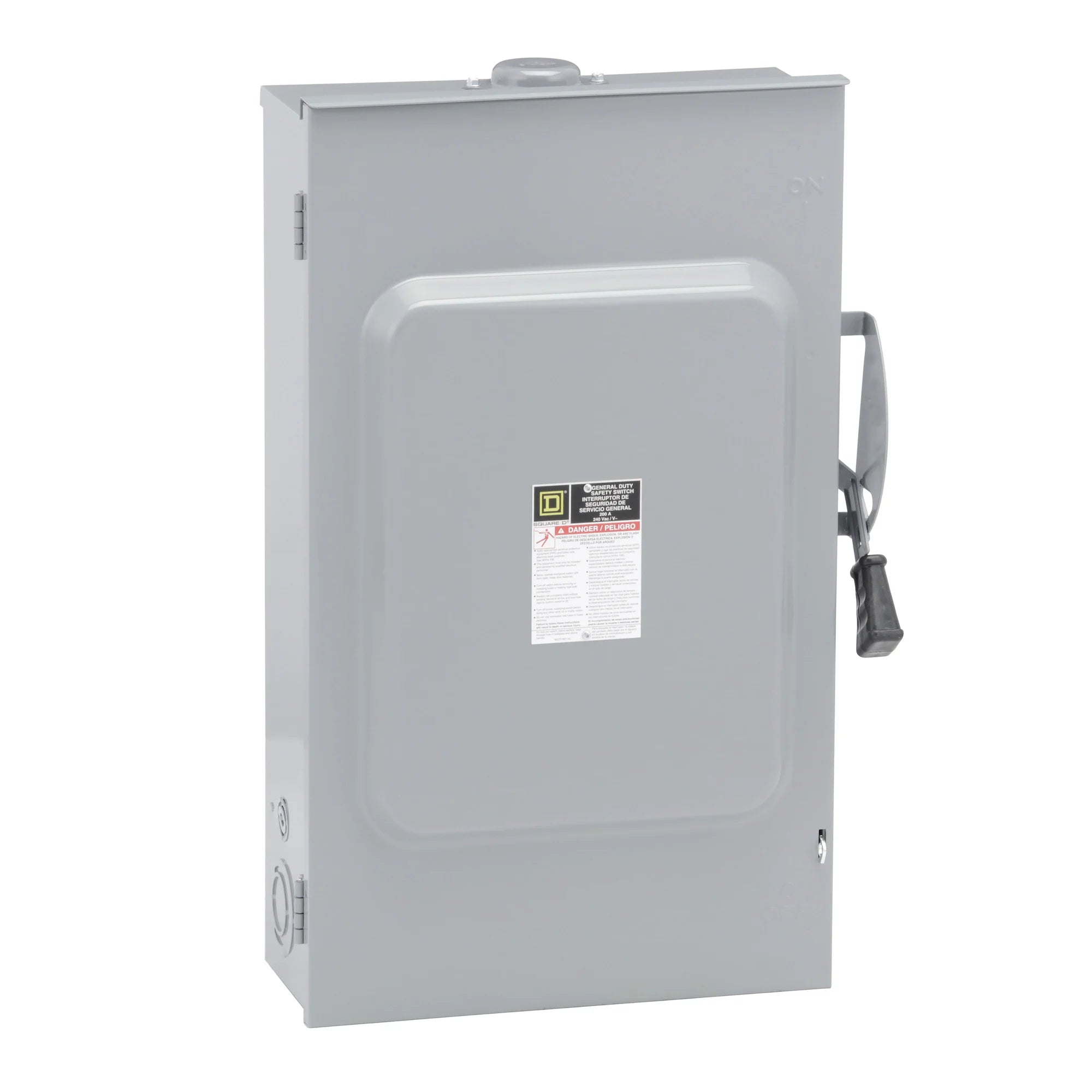

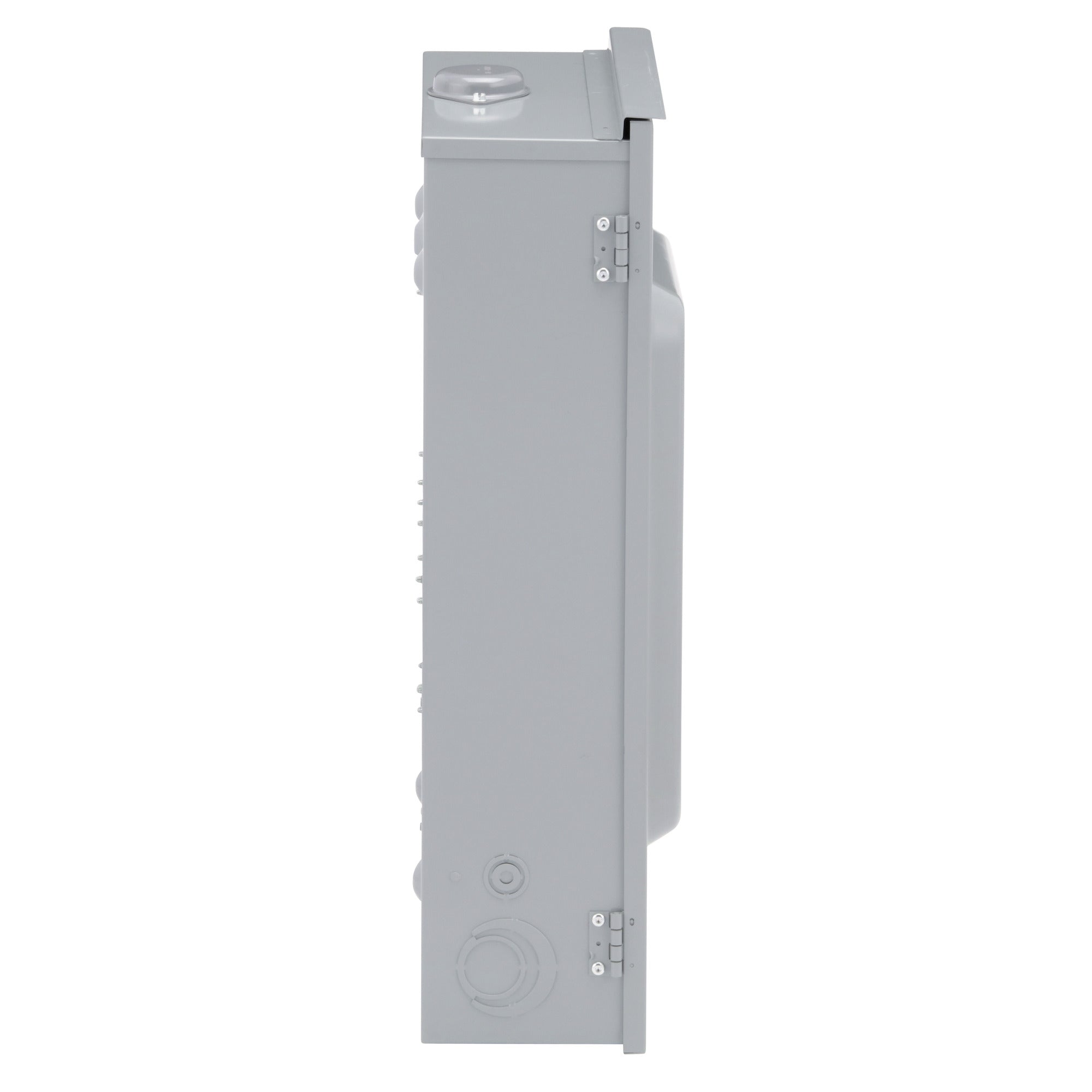

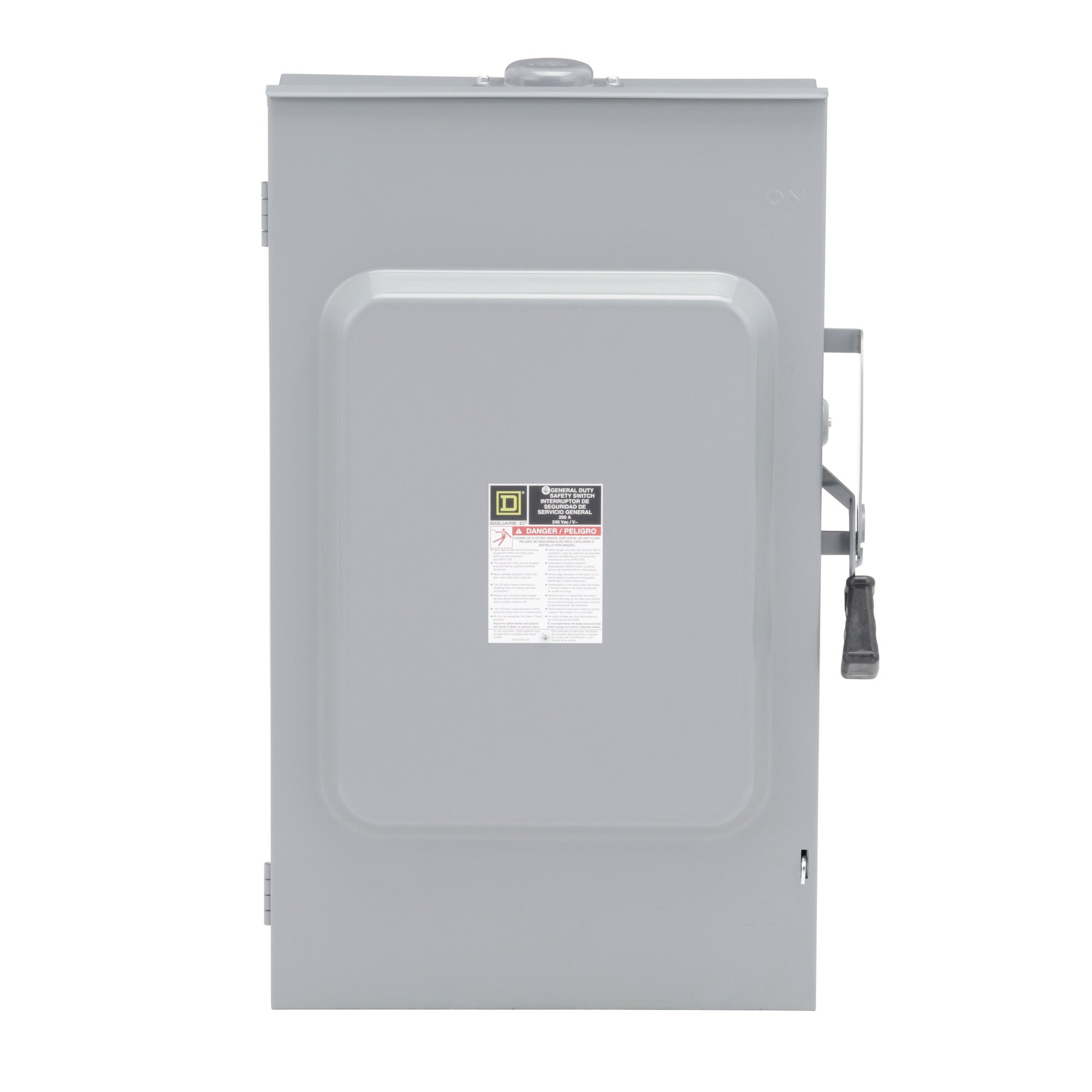

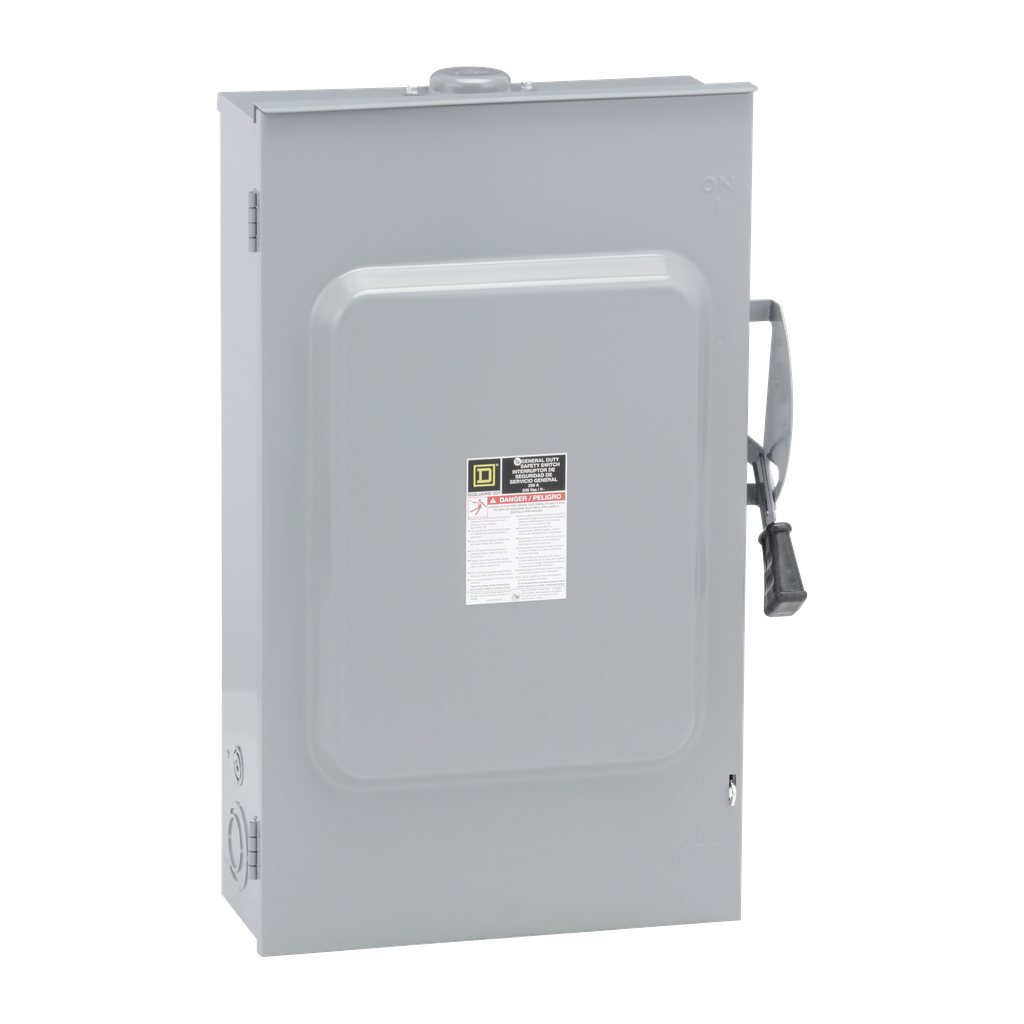

Square D D324NRB Safety Switch Fusible 200A 3P NEMA 3R 240V, Single Throw

Product Description

The Square D D324NRB is a safety switch designed for residential and commercial use. It operates at a current rating of 200 amps with a voltage of 240 volts. This switch is a single throw, three-pole fusible disconnect switch that is UL listed and meets NEMA standards.

• Rated current: 200A
• NEMA 3R rated for indoor and outdoor use
• Includes factory-installed neutral assembly

Product Highlights

This general duty safety switch is ideal for lighting, air conditioning, and appliance loads.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: D324NRB
• Number of Poles: 3 Pole
• Voltage: 240 Volt
• Current: 200 Amp
• Material: Steel
• Enclosure Rating: NEMA 3R
• Fuse Type: H, K, or R
• Height: 29.25 inches
• Width: 19 inches
• Depth: 8.5 inches
• Weight: 56.50 lbs
• Short Circuit Current Rating: 100 kA
• Warranty: 18 months
