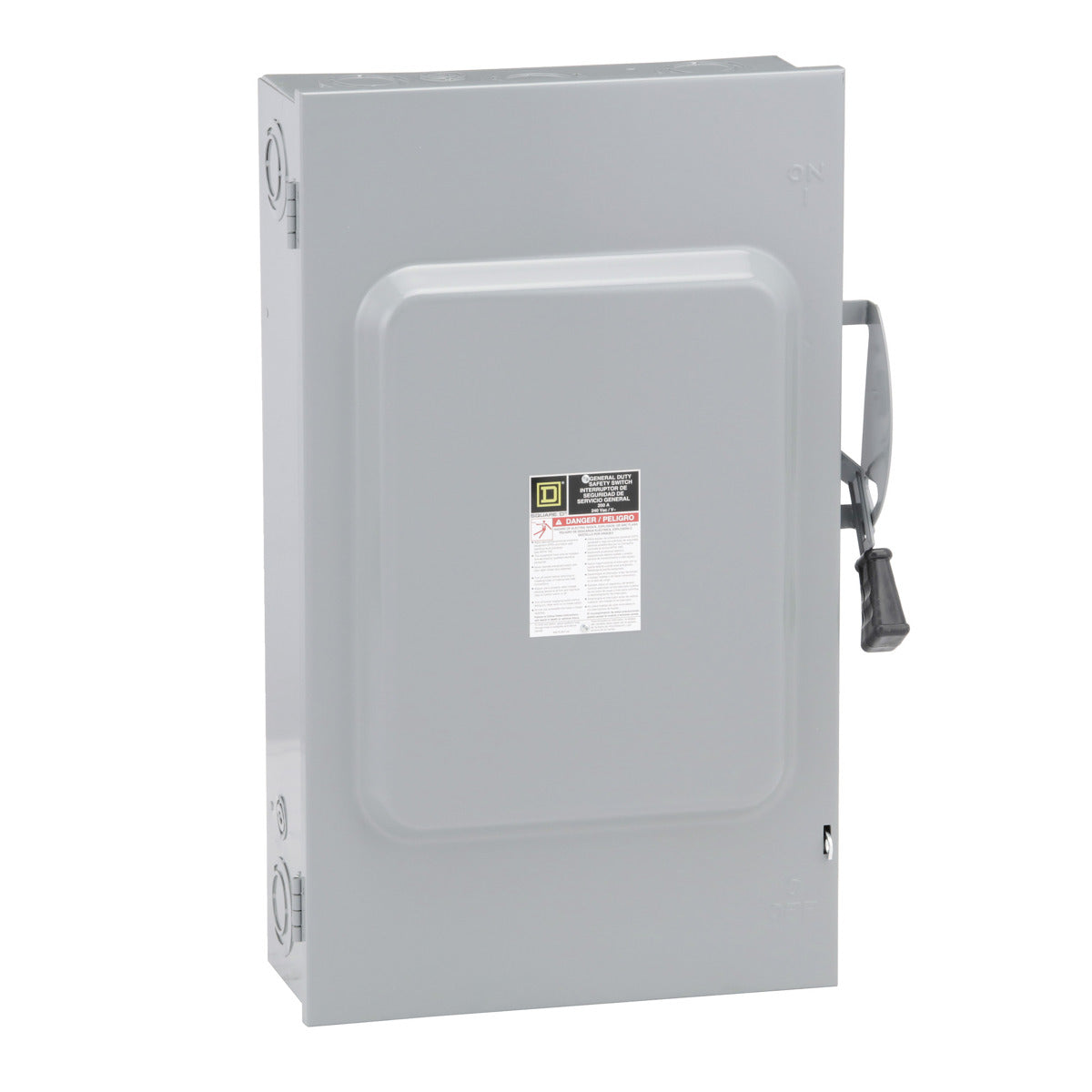

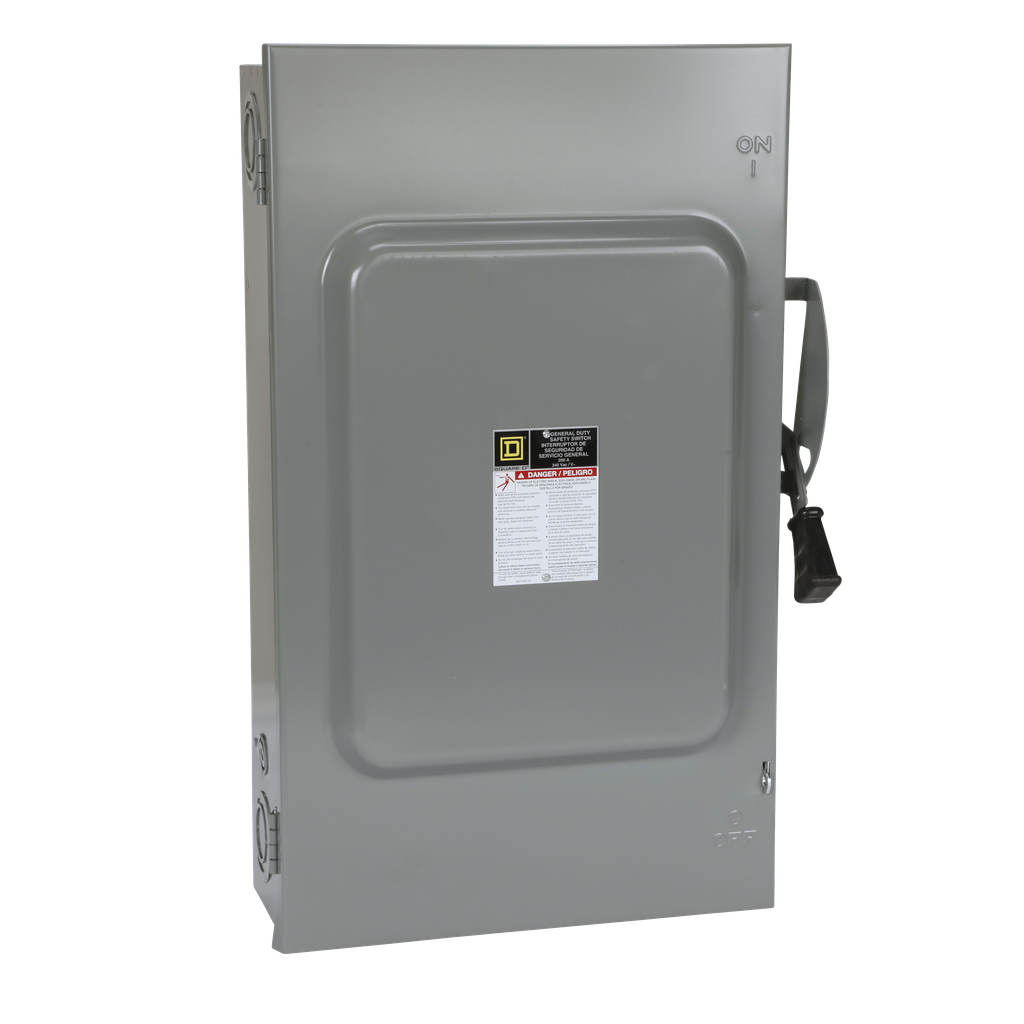

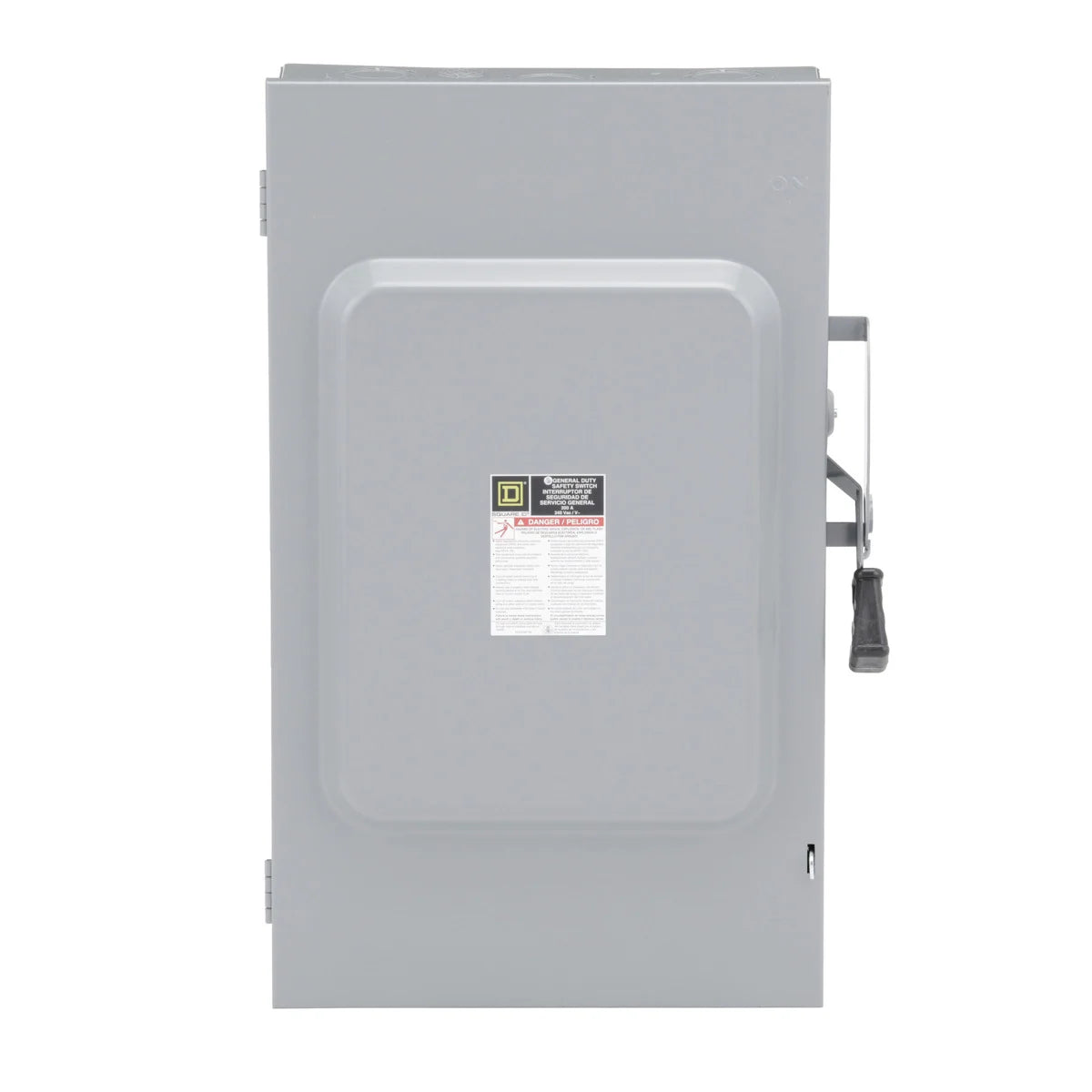

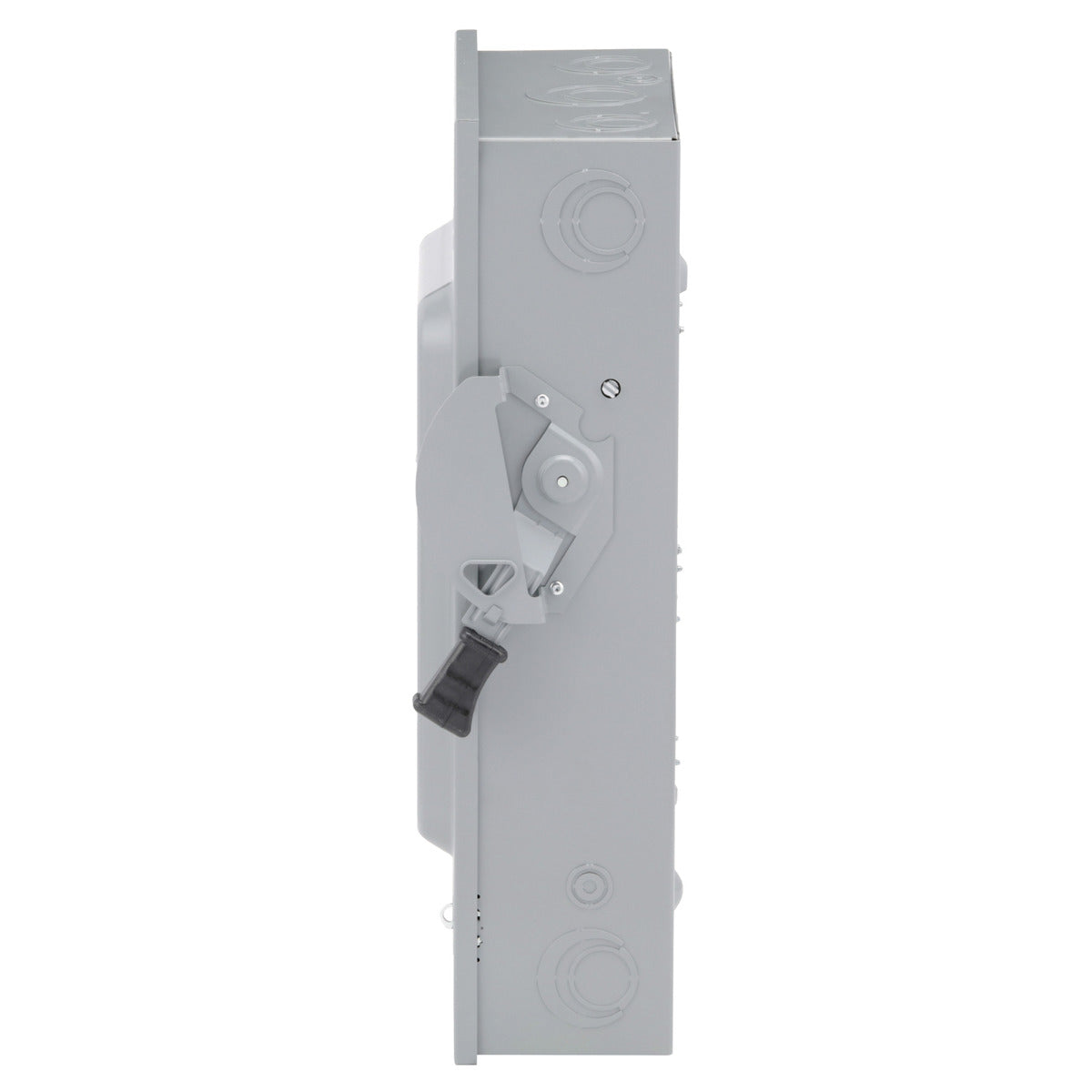

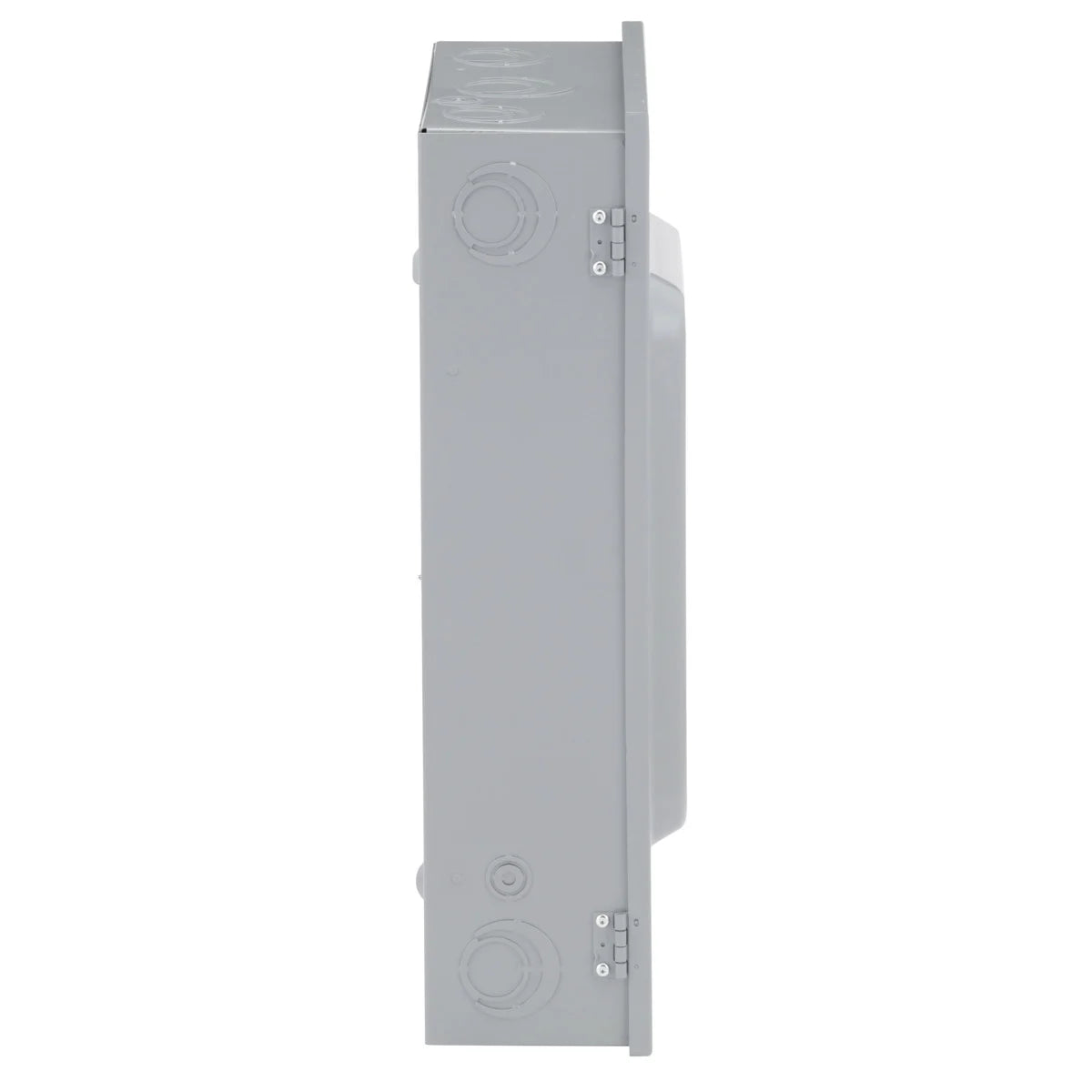

Square D D324N Safety Switch Fusible 200A 3P NEMA-1 240V Neutral Factory Installed

Product Description

The Square D D324N is a safety switch designed for both residential and commercial applications. This fusible disconnect switch features a rated current of 200A and operates at 240VAC. It includes a factory-installed neutral and complies with UL standards for safety and performance. The switch is surface mounted and provides short circuit protection with a rating of 100kA. Its three-pole configuration makes it suitable for controlling loads such as lighting and air conditioning units.

• Suitable for indoor use.
• Includes a factory-installed neutral assembly.
• Accepts wire sizes from AWG six to 250 kcmil.

Product Highlights

This general duty safety switch features a durable stainless steel enclosure and provides reliable performance in a variety of settings.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• MPN: D324N
• Catalog Number: D324N
• Current Rating: 200 Amp
• Voltage: 240 Volt
• Number of Poles: 3 Pole
• Short Circuit Rating: 100 kA
• Height: 29 inches
• Width: 19 inches
• Depth: 8.25 inches
• Weight: 55.49 lb
• Enclosure Rating: NEMA 1
• Wire Size Accepted: AWG 6 to 250 kcmil
