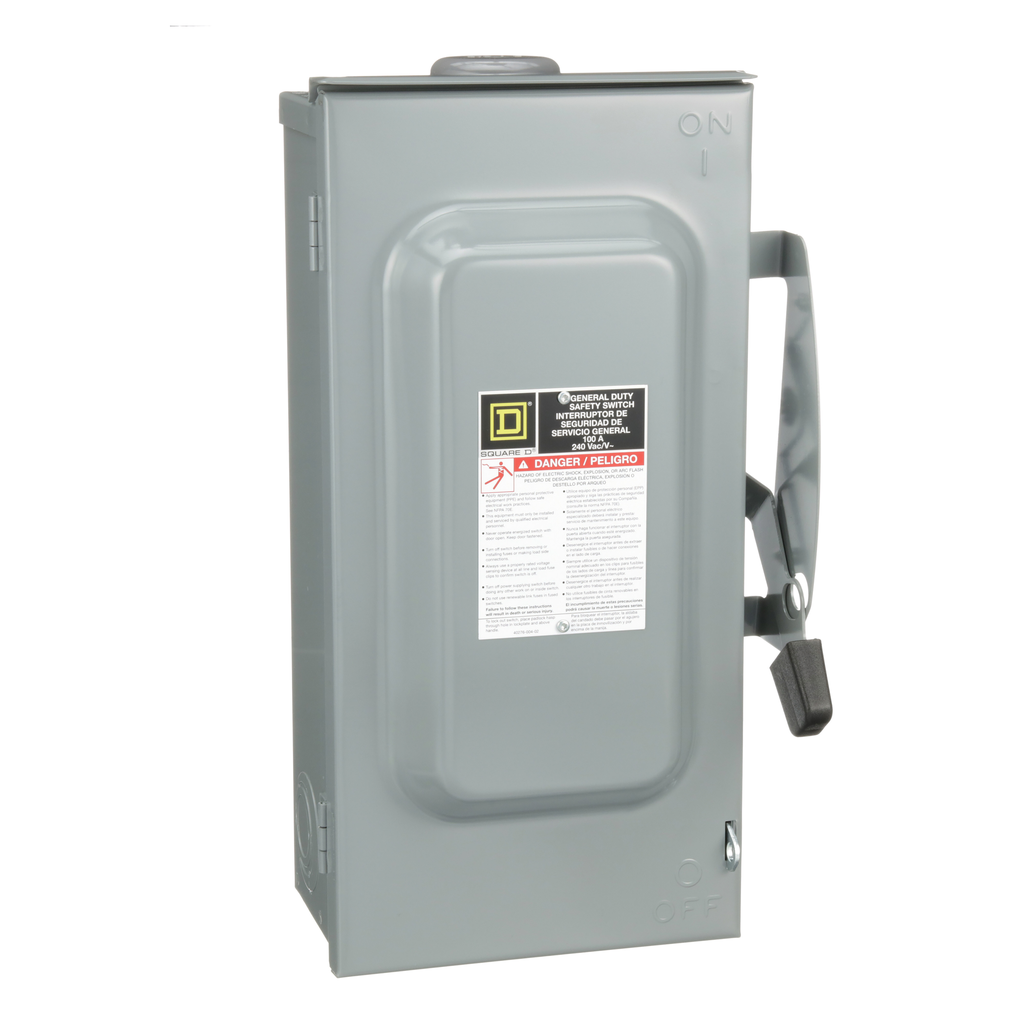

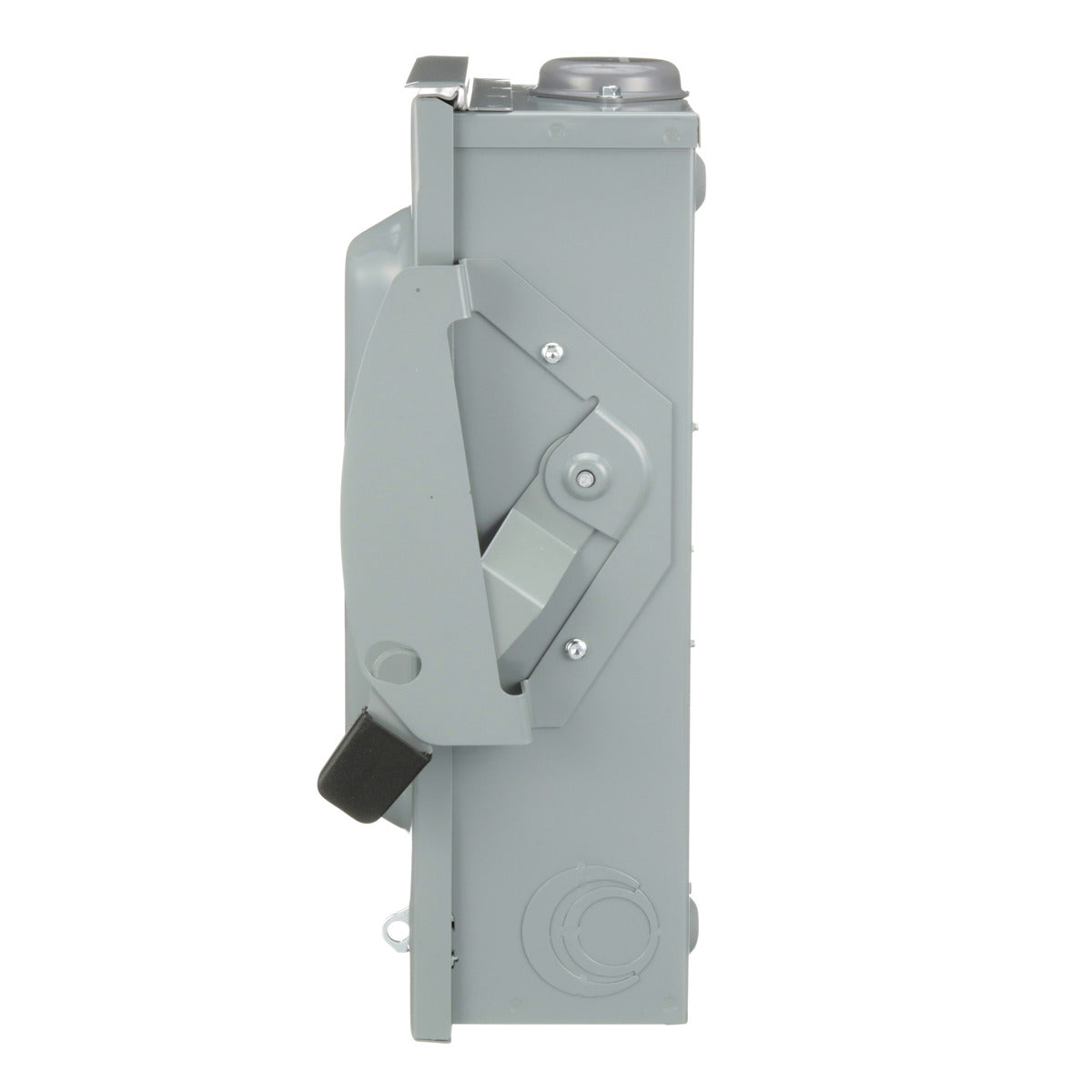

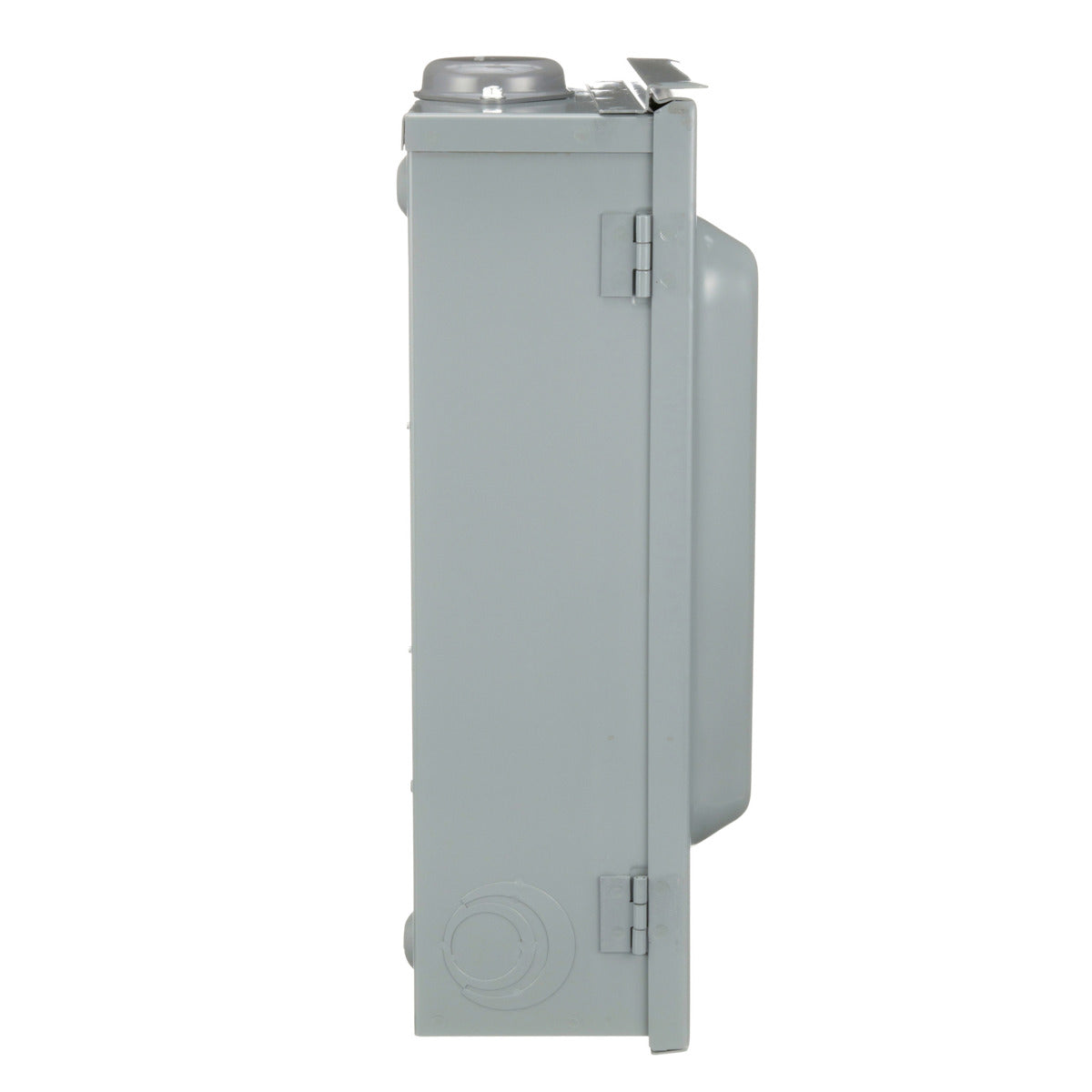

Square D D323NRB Safety Switch Fusible 100A 3P NEMA-3R 240V

Product Description

The Square D D323NRB safety switch with MPN D323NRB provides a reliable solution for electrical safety in residential and commercial settings. This safety switch is a fusible type with a rating of one hundred amps and operates at two hundred forty volts. It is designed for outdoor and indoor applications, featuring a NEMA three R enclosure. The switch is suitable for typical loads like lighting and appliances.

• Fusible disconnect switch rated at 100A
• 3-pole configuration with 240VAC voltage
• NEMA 3R enclosure ensures protection against the elements

Product Highlights

This general duty safety switch is ideal for a variety of applications requiring a dependable disconnect. Designed for easy installation, it is equipped with factory-installed neutral and can be readily used with aluminum and copper wires.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: D323NRB
• Voltage: 240 Volt
• Amperage: 100 Amp
• Enclosure Rating: NEMA 3R
• Number of Poles: 3 Pole
• Height: 17.5 inches
• Width: 10.5 inches
• Depth: 6.5 inches
• Weight: 15.95 lb
• Short Circuit Rating: 100 kA
• Warranty: 18 months
• Country of Origin: United States
