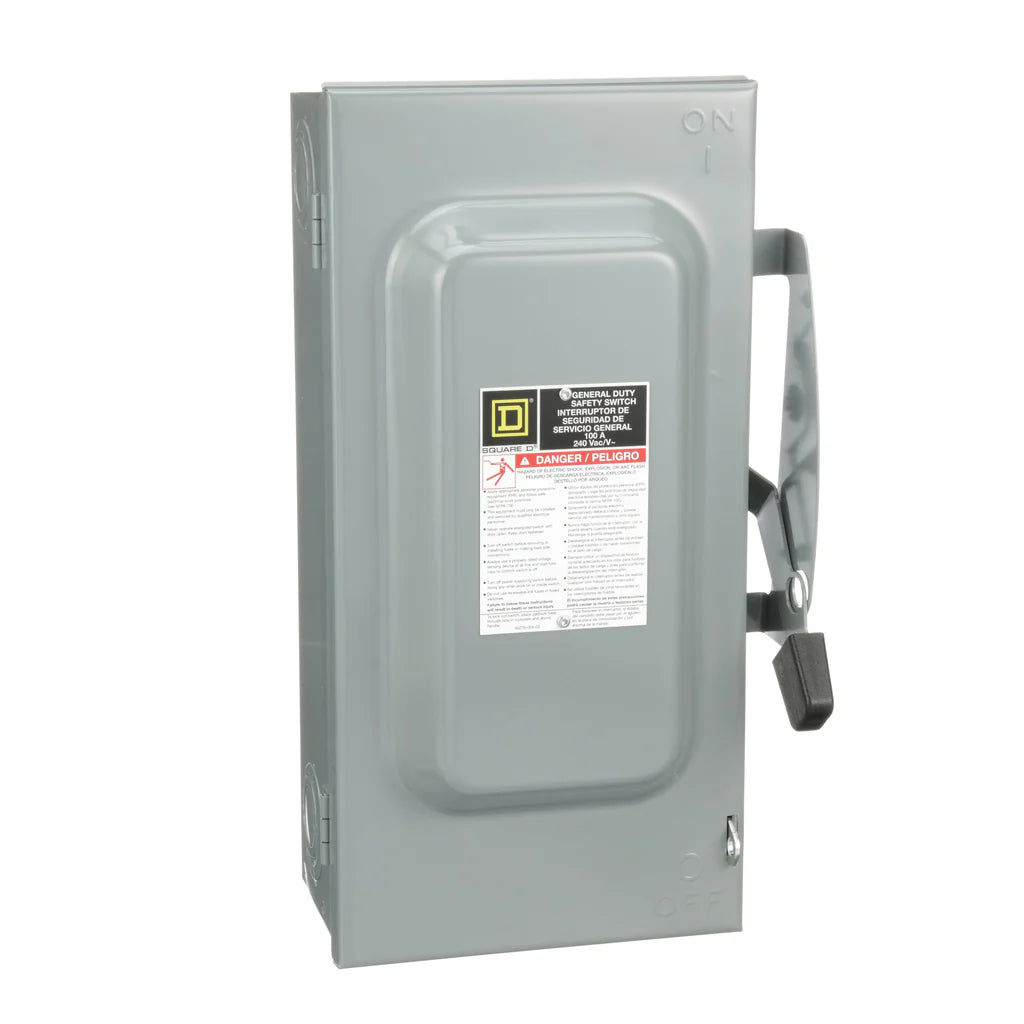

Square D D323N Safety Switch Fusible 100A 3P NEMA-1 240V , Single Throw

Product Description

The Square D D323N is a safety switch designed for both residential and commercial use. It operates at a rated current of one hundred amps and offers three poles for efficient power distribution. This fusible disconnect switch is suitable for general duty applications including lighting, air conditioning, and various appliances.

• Durable and reliable design for residential and commercial applications
• UL Listed and meets NEMA Standard KS1
• Includes a factory-installed neutral assembly

Product Highlights

This safety switch is designed to provide reliable protection and disconnection of electrical circuits and is ideal for service equipment.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: D323N
• Voltage: 240 Volt
• Amperage: 100 Amp
• Number of Poles: 3 Pole
• Short Circuit Rating: 100 kA
• Enclosure Rating: NEMA 1
• Mounting Type: Surface
• Dimensions: 17.5 in (H) x 10.5 in (W) x 6.5 in (D)
• Weight: 15.98 lb
• Fuse Type: H, K, or R
• Environmental Conditions: General purpose (indoor)
