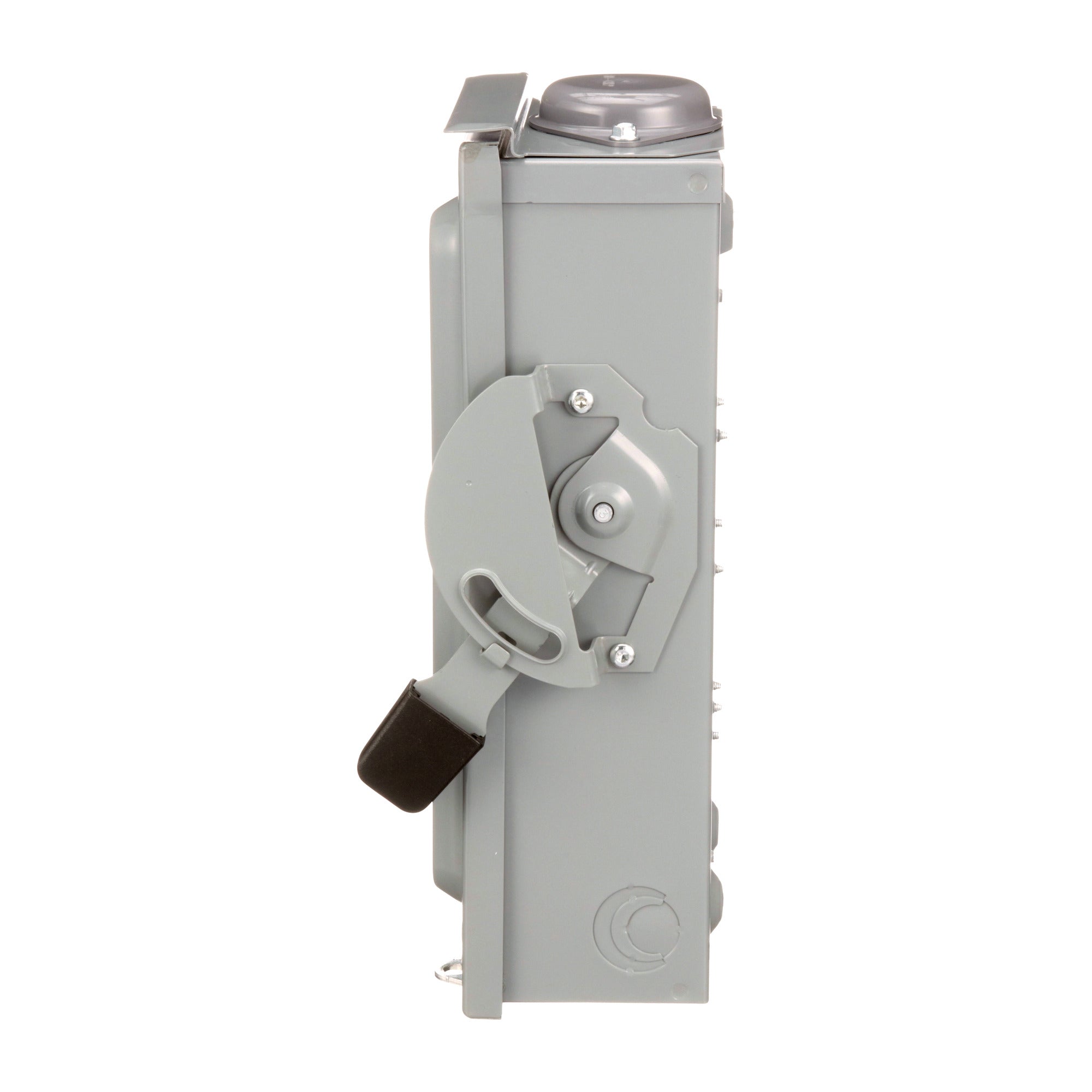

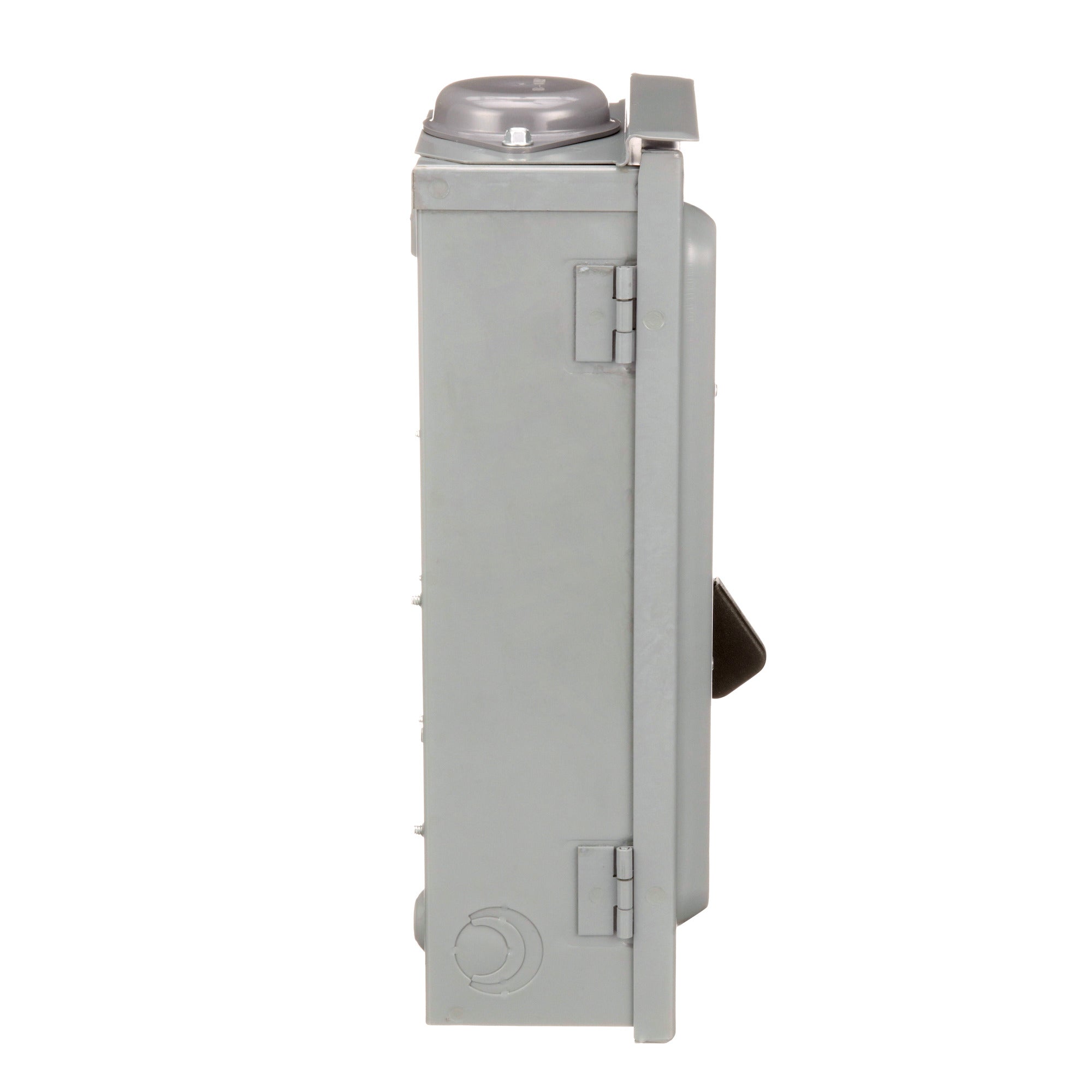

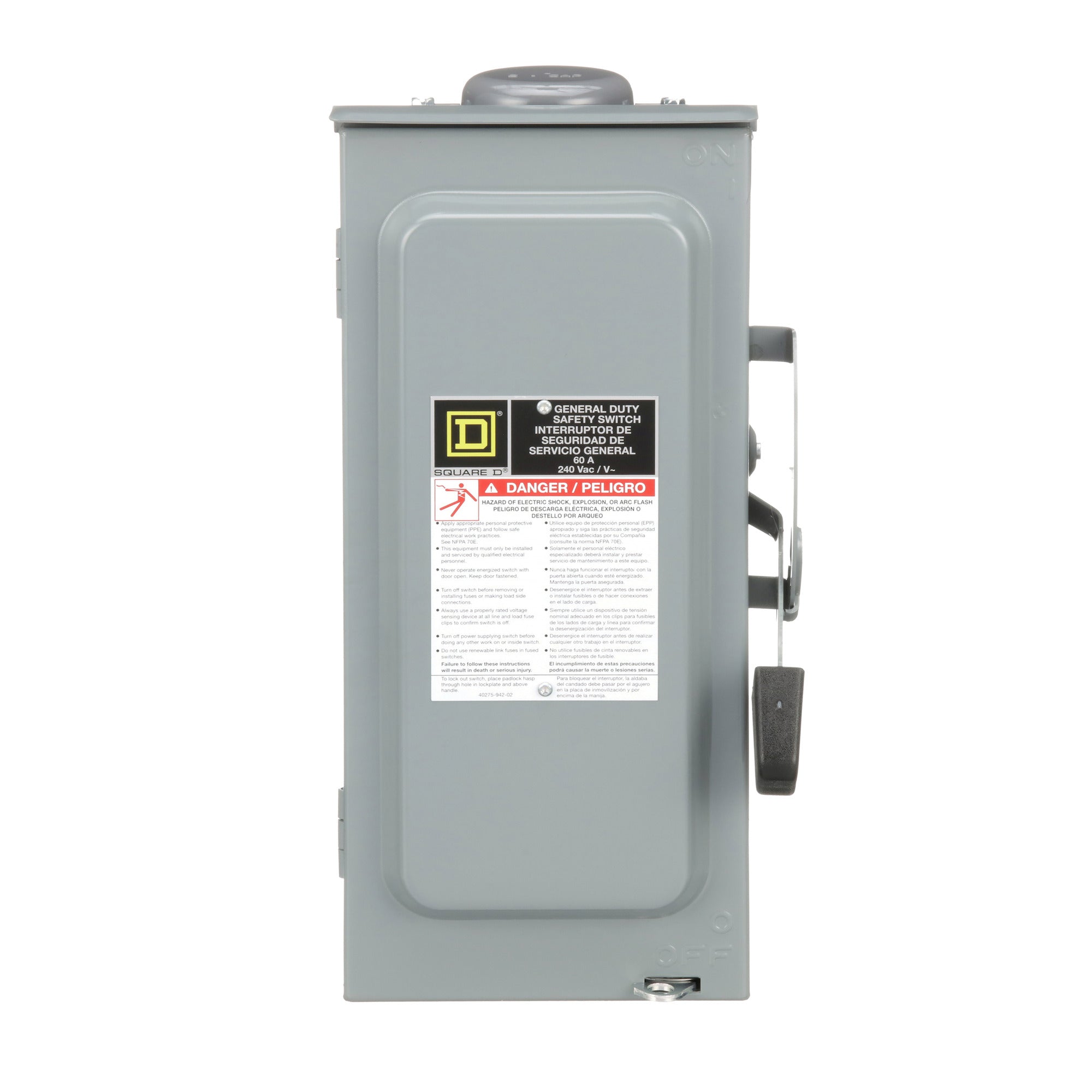

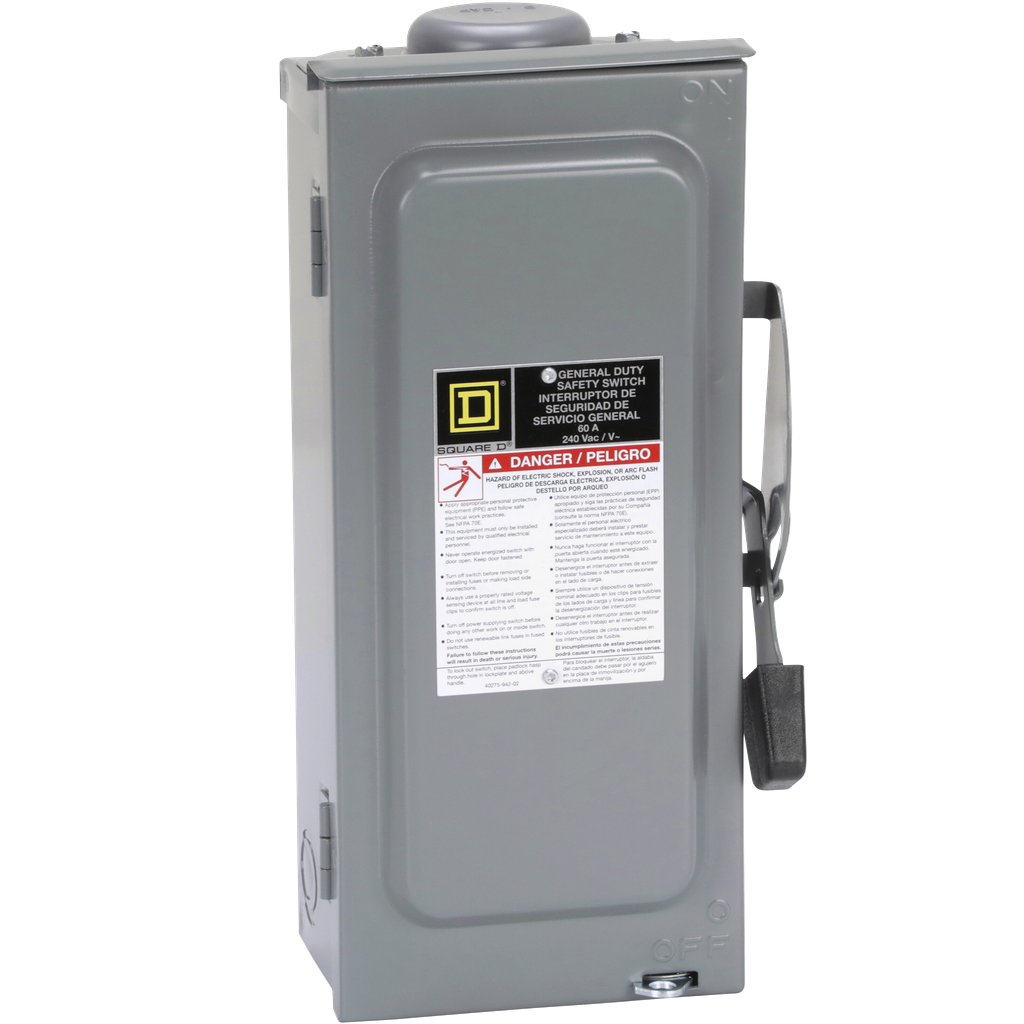

Square D D322NRB Safety Switch Fusible 60A 3P NEMA-3R 240V Single Throw

Product Description

The Square D D322NRB Safety Switch is a fusible switch designed for various electrical systems. It has a 60 ampere rating and operates at 240 volts with 3 poles. This general duty switch is perfect for both residential and commercial applications, providing reliable circuit protection and easy maintenance.

• Rated for 60 amps and 240 volts
• Three-pole configuration
• Comes with a neutral (factory installed)

Product Highlights

Ideal for controlling and disconnecting power in various electrical settings, the D322NRB switch is suitable for lighting, air conditioning, and appliance loads. It offers a quick-make, quick-break mechanism, multiple padlock provisions, and supports both aluminum and copper conductors.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Certifications: UL Listed
• Warranty: 18 months

Technical Specifications

• GTIN: 00785901461289
• UPC: 785901461289
• Size: 14.88 inches (H) x 7.45 inches (W) x 4.87 inches (D)
• Material: Galvannealed Steel
• Voltage: 240 Volts
• Amperage: 60 Amps
• Fuse Type: H, K, or R
• Enclosure Type: NEMA 3R
• Short Circuit Current Rating: 100 kA
• Application: General Duty
• Number of Poles: 3
• Wire Size: 12-3 AWG (aluminum), 14-3 AWG (copper)
• Mounting Type: Surface
• Protection Method: Fusible
