Square D D322N Safety Switch Fusible 60A 3P NEMA-1 240V

Product Description

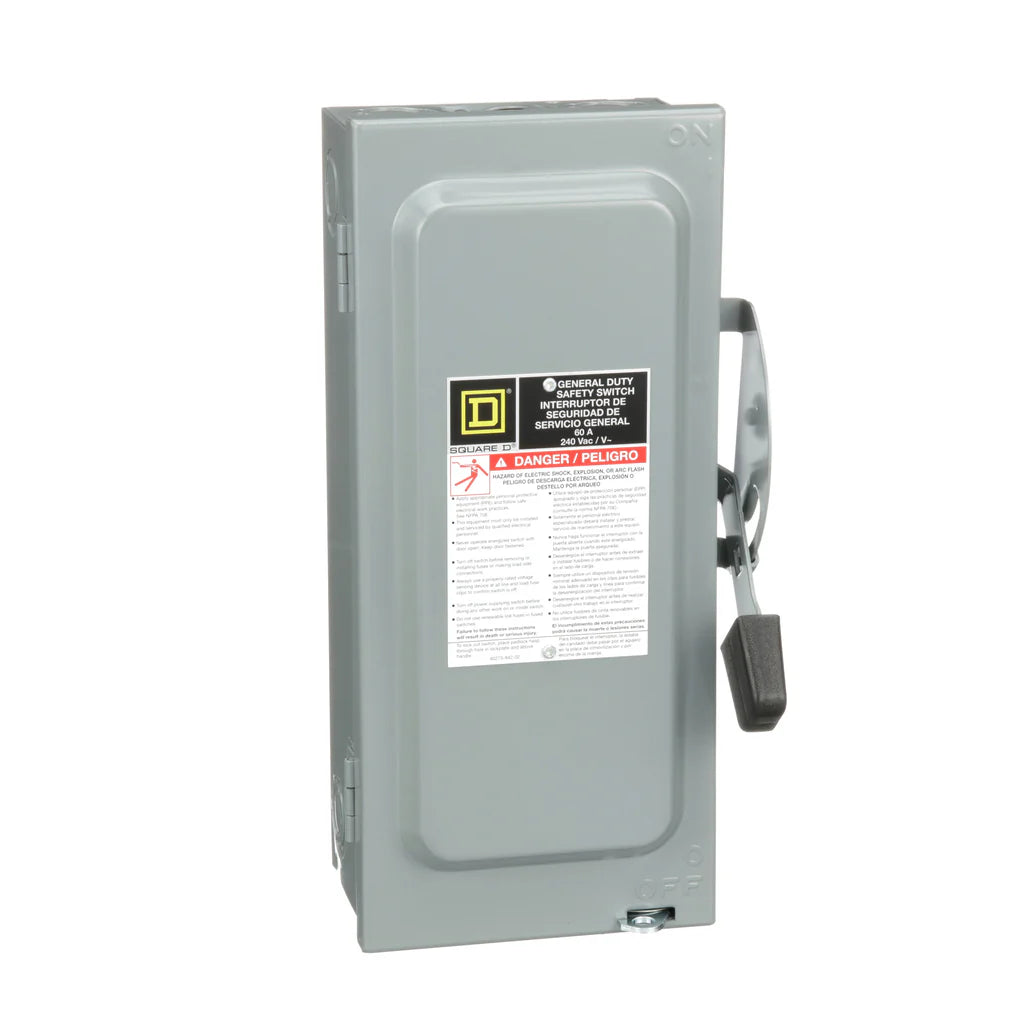

Square D D322N is a safety switch with a fusible design suitable for residential and commercial use. It features a 60A rated current and operates at 240V in a three-pole configuration. This switch meets NEMA 1 protection standards, making it ideal for indoor applications such as lighting and air conditioning systems.

• 60 ampere current rating.
• Three-pole configuration.
• Factory-installed neutral included.

Product Highlights

The D322N is designed for reliable performance in general duty applications. It is UL Listed and adheres to NEMA KS1 standards. This switch has a short circuit rating of 100kA.

Product Information

Standard Information

• Catalog Number: D322N
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Fusible disconnect switch; Single Throw Safety Switch
• Current: 60 Amp
• Voltage: 240 Volt
• Enclosure Rating: NEMA 1
• Fuse Type: H, K, or R
• Height: 14.88 inches
• Width: 7.45 inches
• Depth: 4.87 inches
• Weight: 8.82 lb
• Short Circuit Current: 100 kA
• Warranty Length: 18 months
