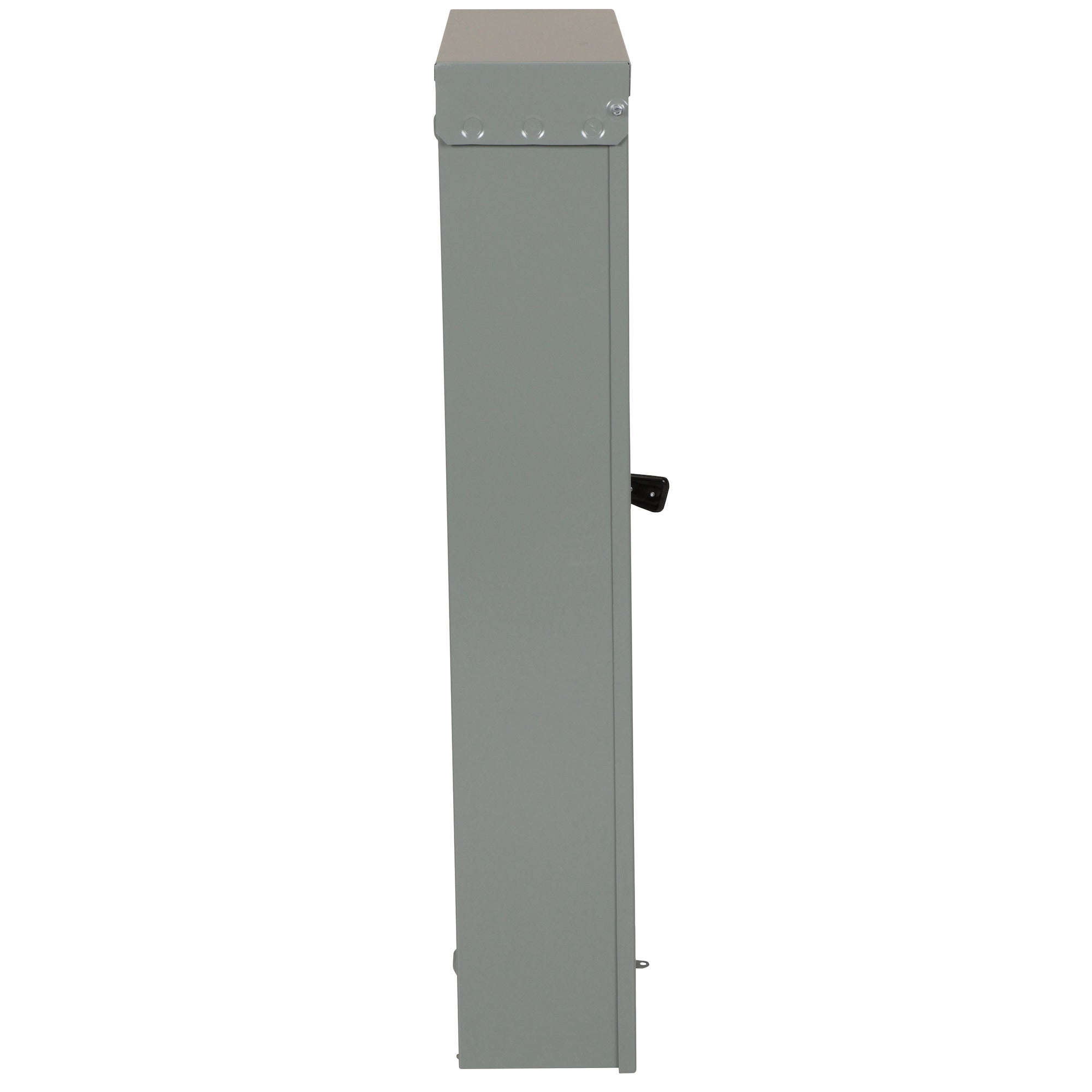

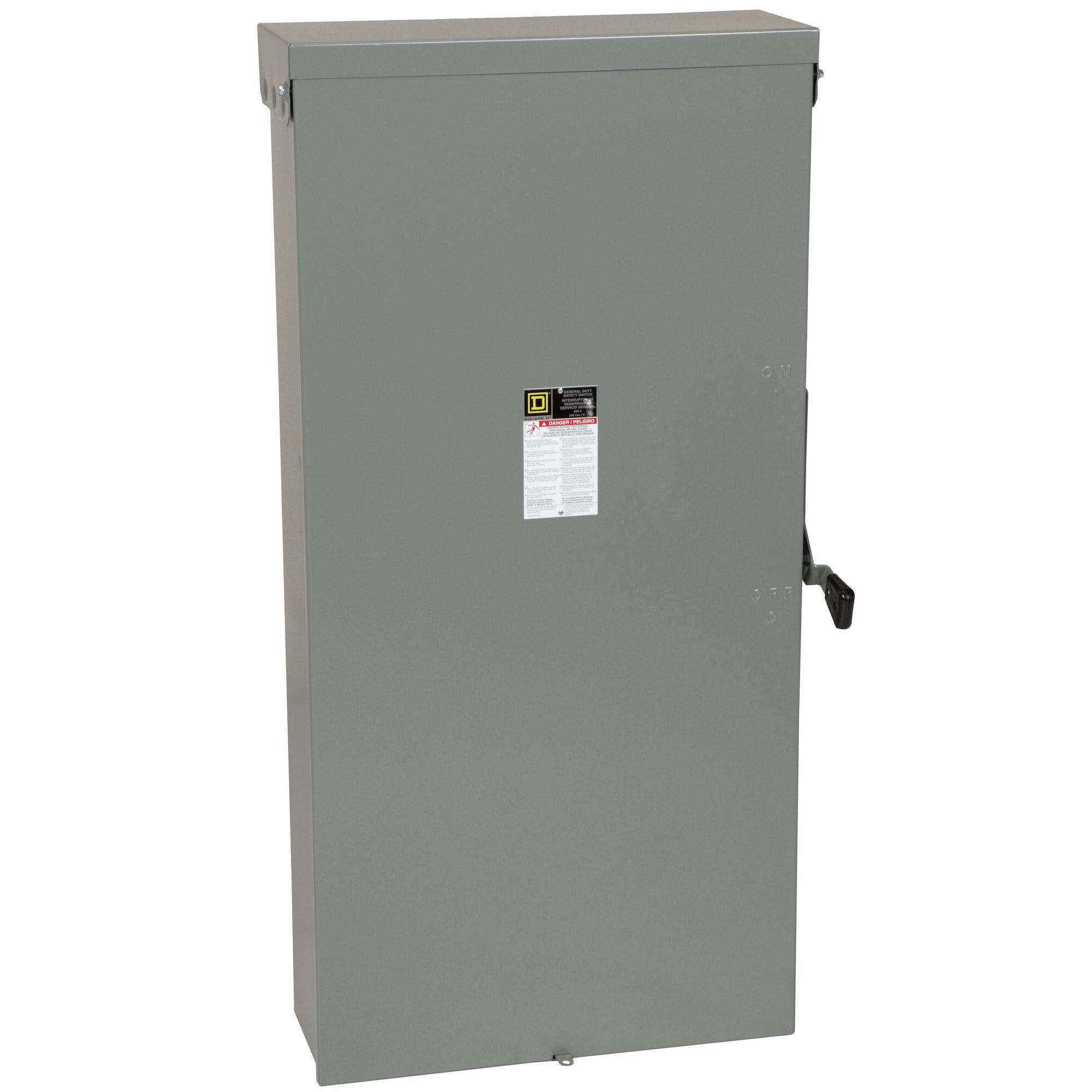

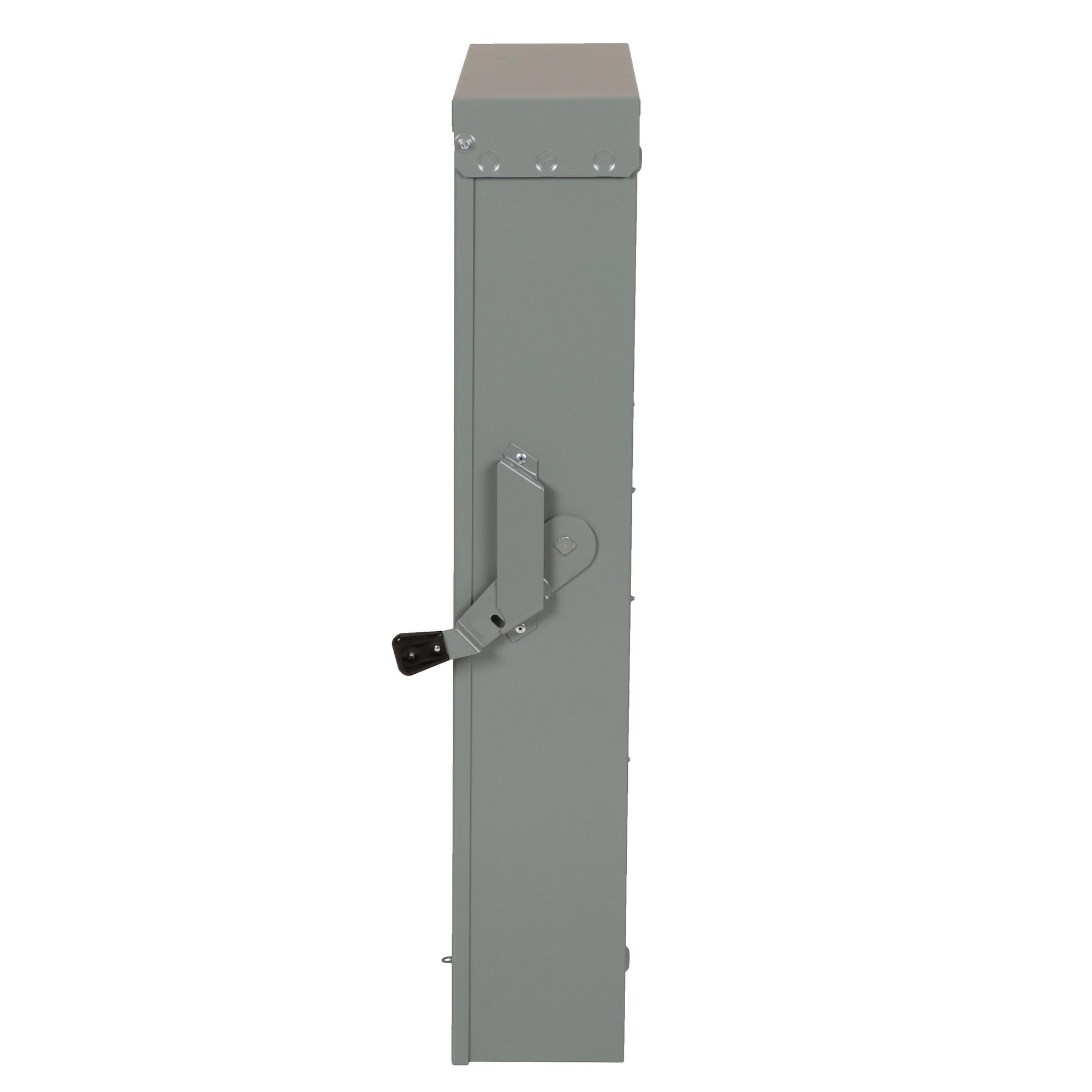

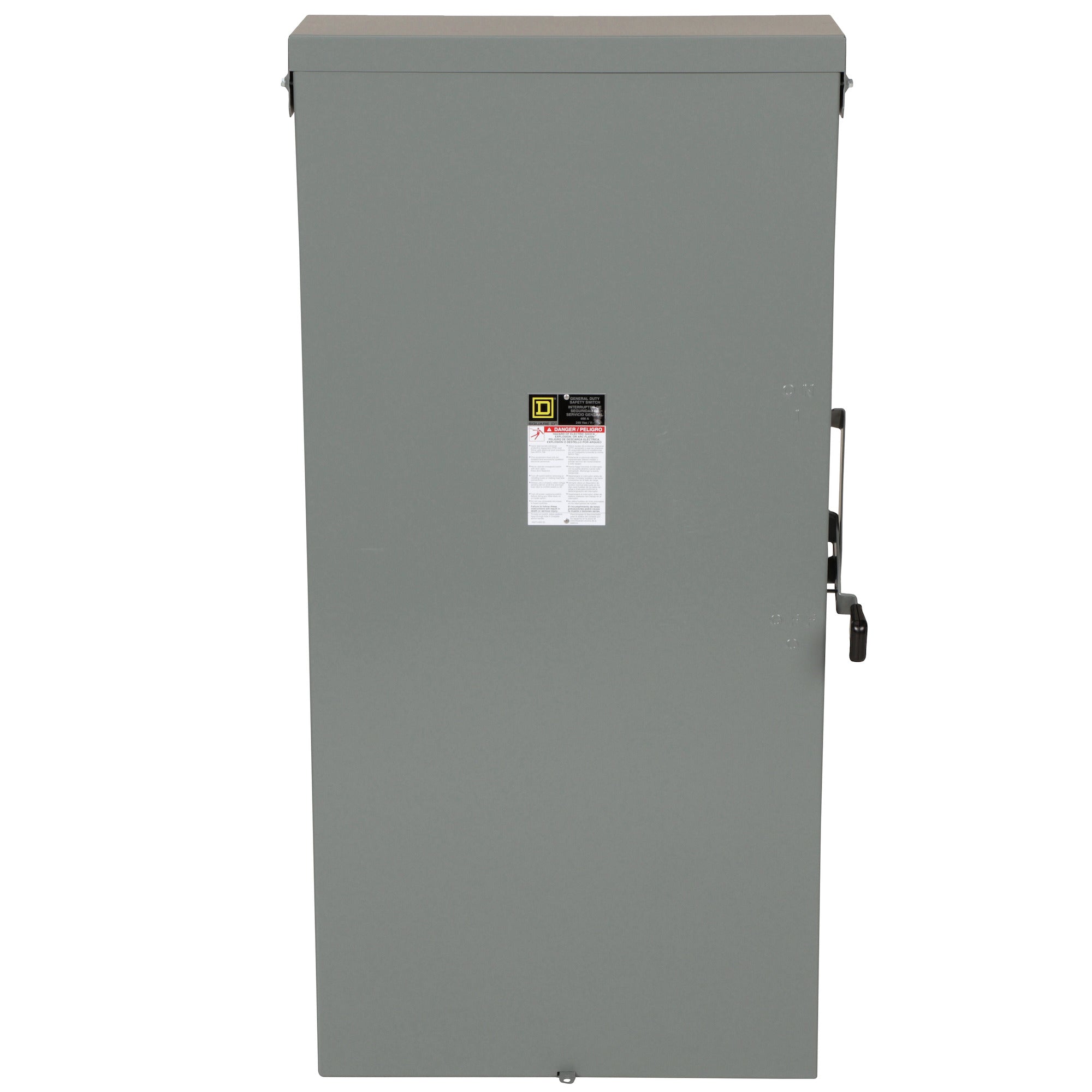

Square D D226NR Safety Switch 600 Amp 240 Volt 2-Pole NEMA 3R

Product Description

The Square D D226NR is a general duty safety switch designed for reliable performance in residential and light commercial settings. Rated for two poles with a maximum current of six hundred amps and a voltage of two hundred forty volts, this fusible disconnect switch ensures safe operation under various loads, including lighting and appliances. It's equipped with a neutral assembly and is suitable for surface mounting.

• UL Listed for safety compliance
• NEMA Type 3R rated for indoor and outdoor environments
• Accepts a range of fuse types (H, K, J, or R)

Product Highlights

This switch features a single throw operation system for enhanced control and efficiency. Its robust construction accommodates wire sizes from AWG four to five hundred kcmil for versatile electrical connections.

Product Information

Standard Information

• Catalog Number: D226NR
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 240 Volt
• Current Rating: 600 Amp
• Height: 49.13 inches
• Width: 25.13 inches
• Depth: 8.88 inches
• Weight: 116.85 lb
• Enclosure Rating: NEMA 3R
• Number of Poles: 2 Pole
• Fuse Type: H, J or R, K
• Warranty Length: 18 months
