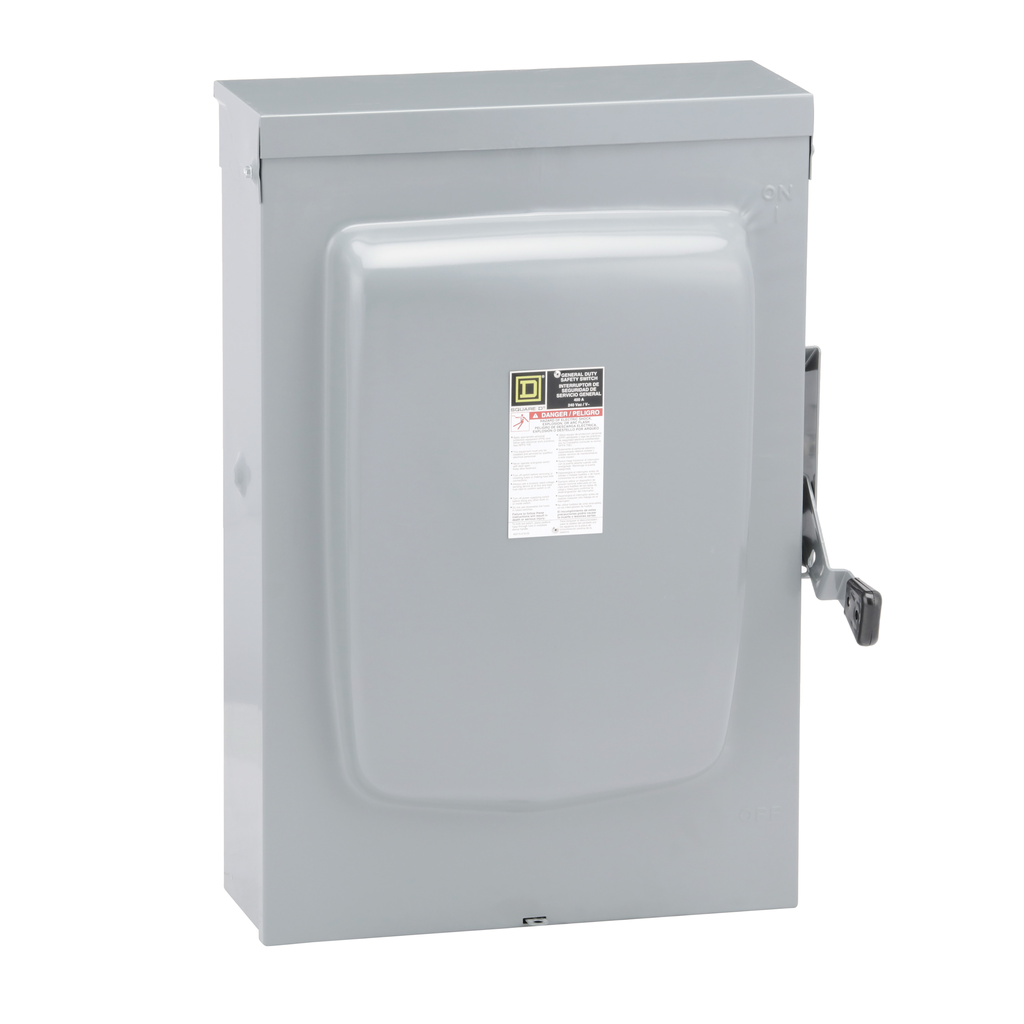

Square D D225NR Safety Switch Fusible GD 240V 400A 2P NEMA-3R

Product Description

The Square D D225NR is a safety switch designed for general duty applications. It has a rated current of four hundred amperes and operates at two hundred forty volts AC. This two-pole switch is suitable for various installations in residential and commercial environments.

• UL Listed for safety compliance
• Factory-installed neutral for easy setup
• NEMA 3R enclosure protects against outdoor conditions

Product Highlights

This fusible safety switch offers reliable protection for electrical equipment. Ideal for lighting, air conditioning, and appliance circuits, it supports a wide range of applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: D225NR
• Mounting Type: Surface
• Material: Steel
• Weight: Ninety-four point eight pounds
• Dimensions: Thirty point six three inches high, twenty-two point two five inches wide, ten point one three inches deep
• Short Circuit Rating: One hundred kA
• NEMA Rating: 3R
• Amperage: Four hundred amps
