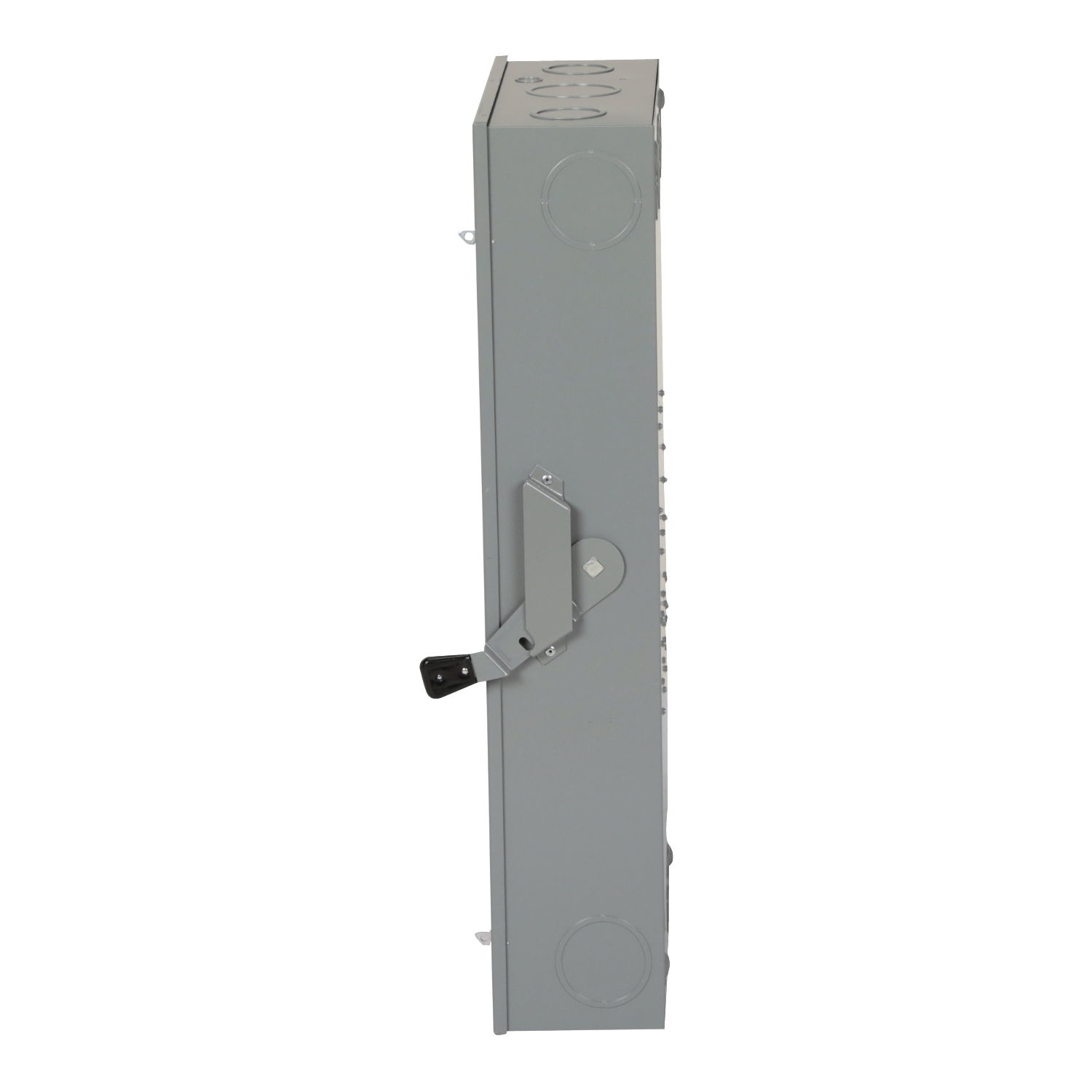

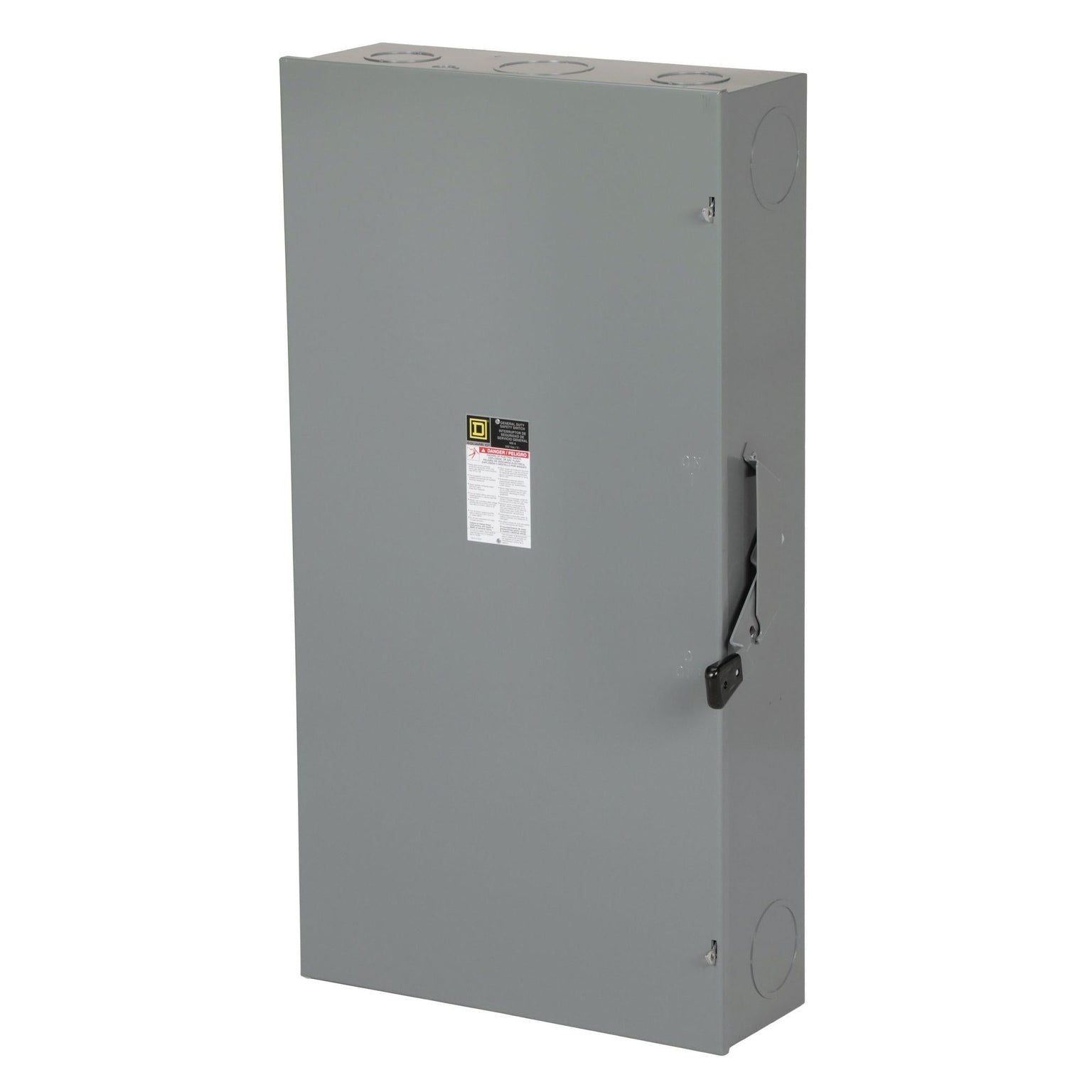

Square D D225N Safety Switch Fusible GD 240V 400A 2P NEMA-1, Single Throw

Product Description

The Square D D225N general duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. This single throw safety switch is a fusible disconnect with a rated current of 400A and NEMA 1 protection. This 2-pole, 240VAC switch has a short circuit rating of 100kA and is surface mounted.

• Fusible disconnect switch
• Single Throw Safety Switch
• Rated current of 400A

Product Highlights

Suitable for lighting, air conditioning, and appliances. UL Listed, and meets or exceeds the NEMA Standard KS1.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: D225N
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: D225N
• Brand: Square D
• Manufacturer: Square-D / Schneider
• Type: Fusible disconnect switch;Single Throw Safety Switch
• Depth: 8.88 Inch
• Width: 24.88 in
• Action: SINGLE THROW
• Height: 45.12 Inch
• Current: 400 Amp
• Voltage: 240 Volt
• Amperage: 400 Amp
• Enclosure: 1
• Fuse Type: Cartridge, Class R
• NEMA Size: 1
• Sub Brand: General duty
• Wire Size: AWG 1/0...600 kcmil aluminium/copper;2 x AWG 1/0...2 x 300 kcmil aluminium/copper
• Product UPC: 78590146080
• 12-Digit UPC: 785901460800
• Applications: GENERAL DUTY
• Mounting Type: Surface
• TC Connection: Lugs
• Certifications: UL Listed File E2875
• Conductor Size: 1/0 AWG-600 kcmil (AL)/1/0 AWG-300 kcmil (CU)
• Number of Poles: 2 Pole
• Enclosure Rating: 1
• Number of Phases: 1 Phase
• Short Circuit Current: 100 kA
• Environmental Conditions: GENERAL PURPOSE (INDOOR)
• Line Rated Current: 400 A
• Enclosure Material: Stainless Steel
• Rated Current: 400A
• Degree of Protection: NEMA 1
• Mounting: Surface mounted
• Electrical Connection: Lugs
• Series: E3 Series
• Frequency: 50/60 Hz
• Wires: 3 Wires
• Contact Form: DPST
• Actuator: Handle
• Terminal: Lug
• Material: Steel
• Finish: Baked Enamel/Galvanized/Phosphatized
• UNSPSC: 39122205
• Disconnector Device Type: fusible disconnect switch
• Product Or Component Type: Single Throw Safety Switch
• Series Name: general duty
• Nema Degree Of Protection: NEMA 1
• Device Composition: neutral (factory installed)
• Device Application: commercial
• [Ue] Rated Operational Voltage: 240 V AC
• Device Mounting: surface
• Short-Circuit Current: 100 kA maximum depending on fuse H, K, J or R
• Wiring Configuration: 3-wire
• Country of Origin: Mexico
• Awg Gauge: AWG 1/0...600 kcmil aluminium/copper || 2 x AWG 1/0...2 x 300 kcmil aluminium/copper
• Part Number: D225N
• Family: Series E
• Amp: 400
• Volt: 240
• Phase: 1
• Category: Switches
• Type D: D
• AIC Ratings: 100kA@240V
• Number of Throws: 1
• Timer Control: None
• Interruption Type: Switch
• Smart Home Compatibility: None
• Suitable For: Interior
• Current Type: AC
• Control Style: Switch
• Unit Type: Unit
• Number in Pack: 1
• Unit Quantity: 1
• Maximum Amperage: 400 A
• Orientation: Vertical
• Smart Home Protocol: None
• IP Rating: 20
• Fuse Provision: Fusible
