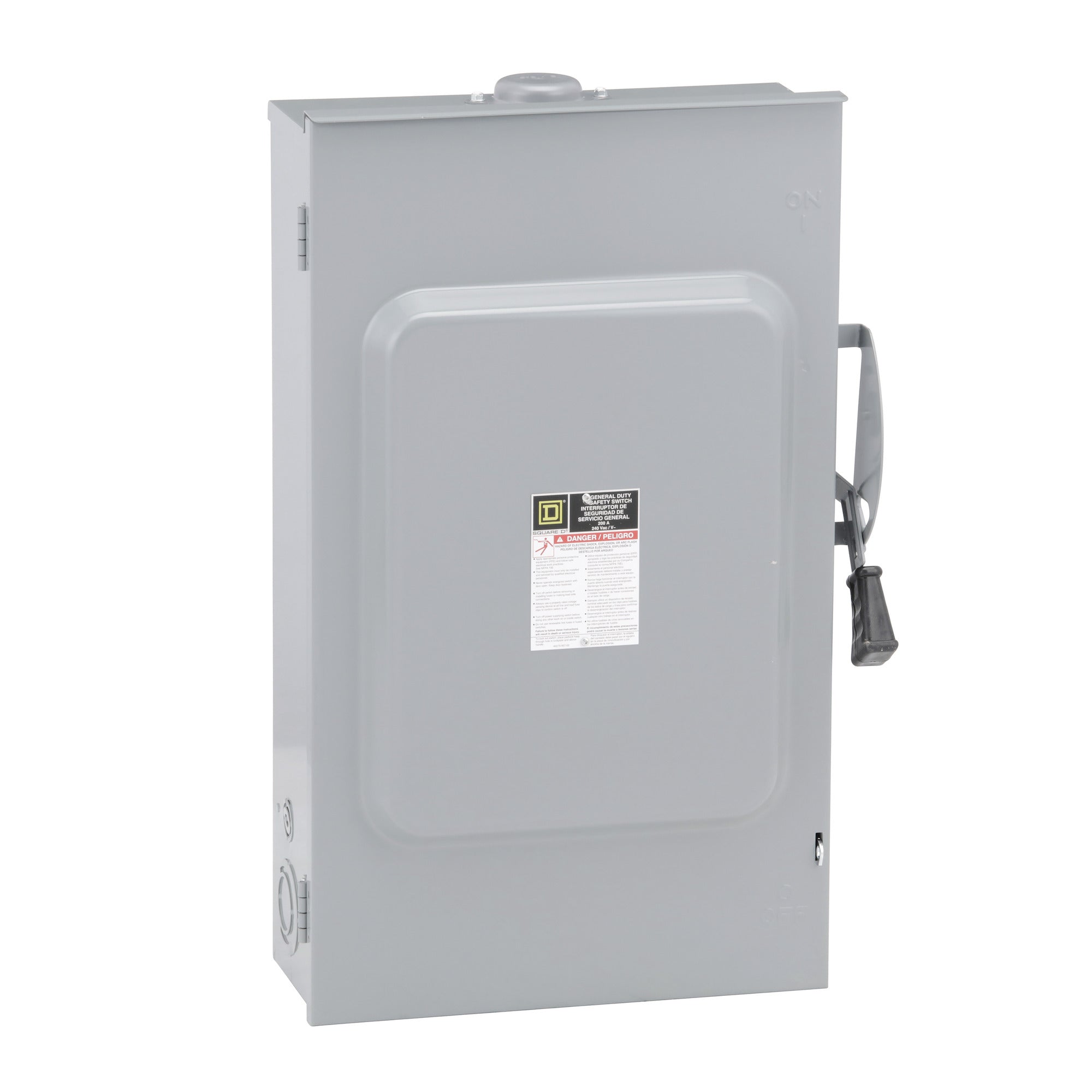

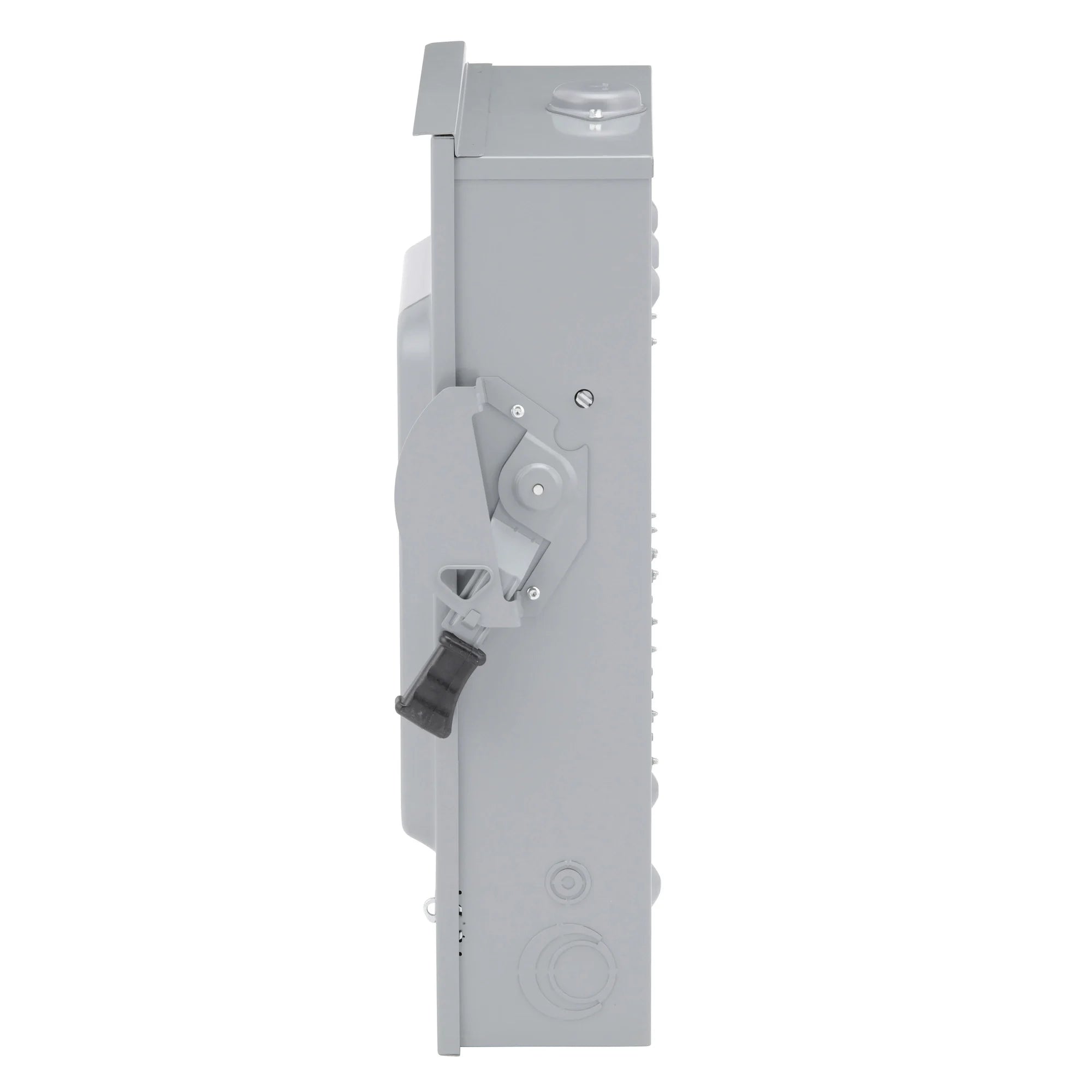

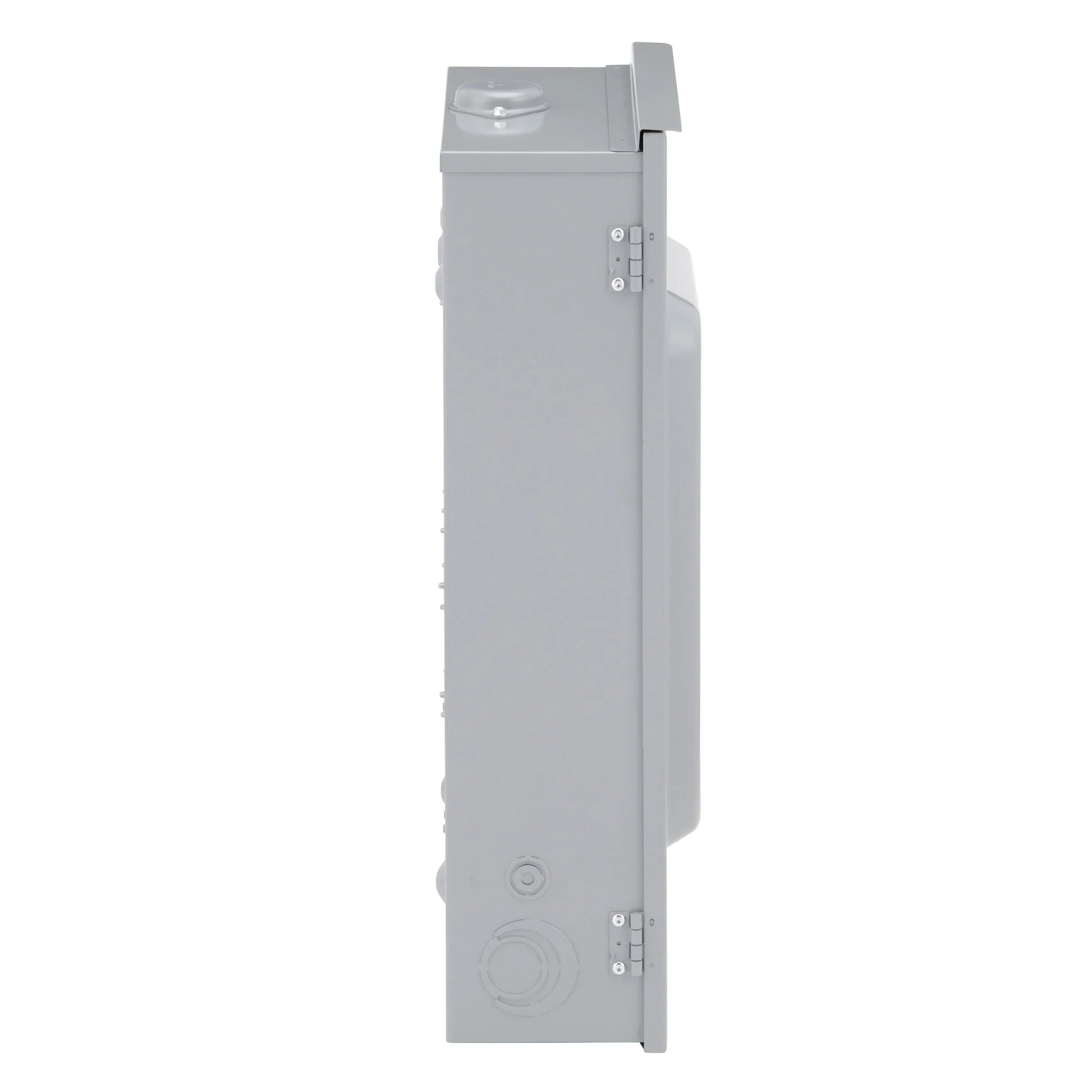

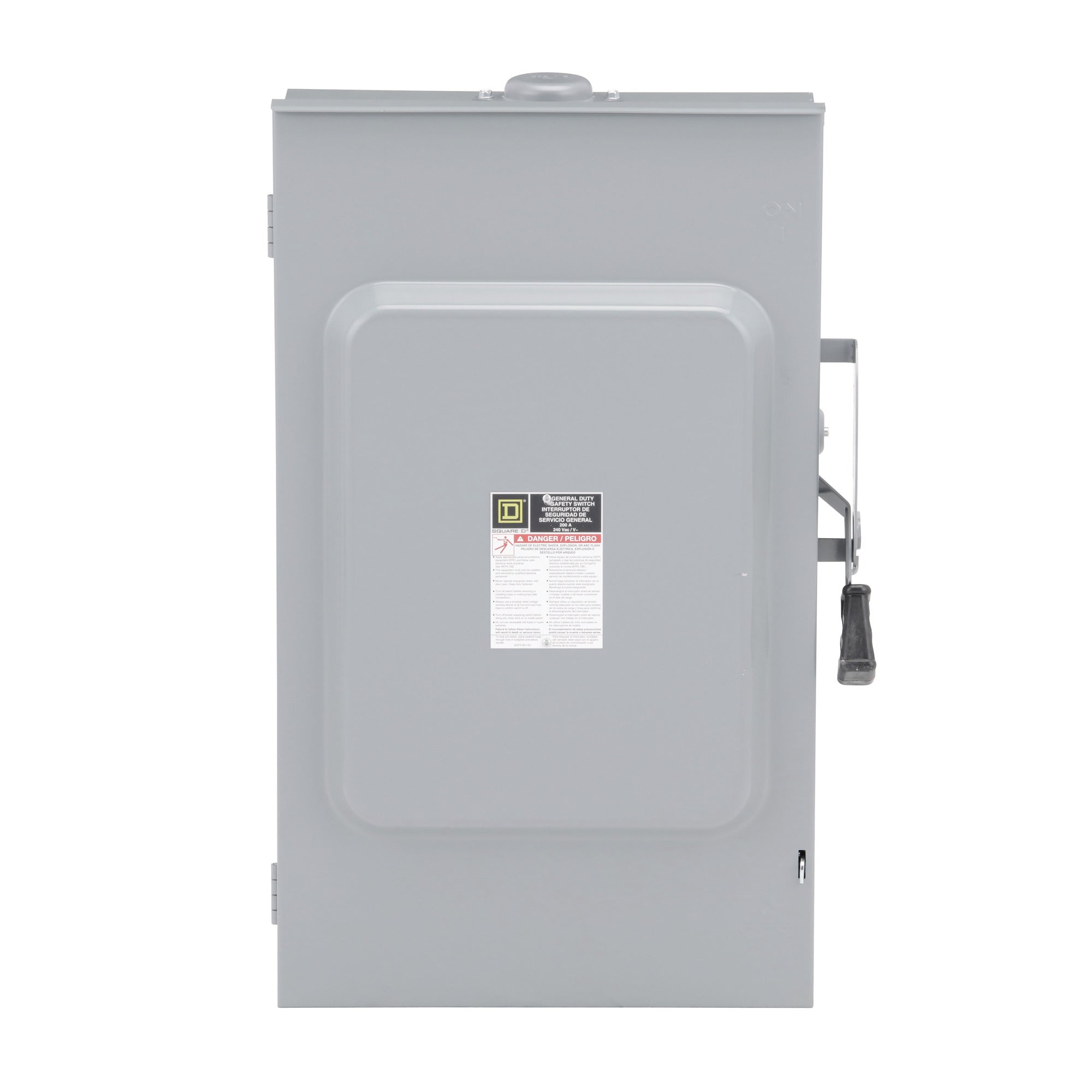

Square D D224NRB Safety Switch Fusible 200A 2P NEMA-3R 240V Replacement MPN

Product Description

The Square D D224NRB is a safety switch designed for both residential and commercial use. This fusible safety switch has a current rating of two hundred amps and operates at two hundred forty volts. It features a single throw design, making it suitable for a variety of electrical applications such as lighting and air conditioning.

• Rated for 200A and 240V, ideal for high-load circuits.
• UL Listed with NEMA 3R enclosure for rainproof and sleet/ice proof conditions.
• Surface mounted with lugs for AWG 6 to 250 kcmil aluminum or copper conductors.

Product Highlights

This safety switch comes with a factory-installed neutral and is designed for easy surface mounting. It accepts H, K, or R fuses to suit different setups. The robust construction ensures long-term durability in various environments.

Product Information

Standard Information

• Catalog Number: D224NRB
• Manufacturer: Schneider Electric

Technical Specifications

• Current Rating: 200 Amp
• Voltage Rating: 240 Volt
• Number of Poles: 2 Pole
• Enclosure Type: NEMA 3R
• Height: 29.25 inches
• Width: 19 inches
• Depth: 8.5 inches
• Weight: 53.51 lb
• Fuse Type: H, K or R
• Short Circuit Rating: 100 kA
• Environmental Conditions: Rainproof and sleet/ice proof
