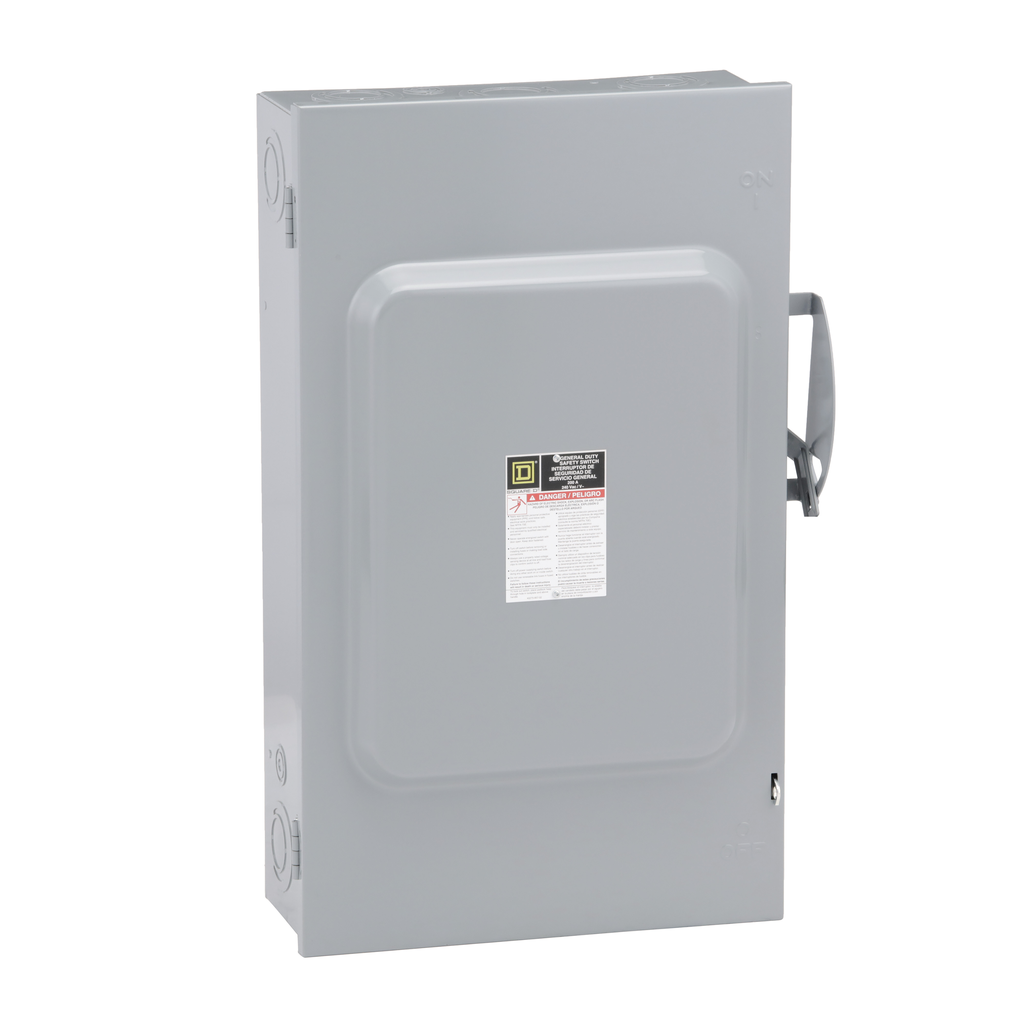

Square D D224N Safety Switch Fusible 200A 2P NEMA-1 240V Single Throw

Product Description

The Square D D224N is a safety switch designed for general duty applications. It has a fusible disconnect switch rated at 200 Amperes for two poles. This switch operates at 240 Volts with a NEMA 1 enclosure providing basic protection. Its design makes it suitable for lighting, air conditioning, and appliance applications. The switch is UL Listed and complies with NEMA Standard KS1.

• Rated for 200A and two poles.
• NEMA 1 enclosure for indoor use.
• Short circuit rating of 100 kA.

Product Highlights

This switch is equipped with a factory-installed neutral assembly. It is easy to install with surface mounting. Accepts wire sizes from AWG 6 to 250 kcmil, allowing for a wide range of applications.

Product Information

Standard Information

• Brand: Square D
• MPN: D224N

Technical Specifications

• Current: 200 Amp
• Voltage: 240 Volt
• Height: 29 inches
• Width: 19 inches
• Depth: 8.25 inches
• Weight: 53.51 lb
• Number of Poles: 2
• Fuse Type: H, K, or R
• Short Circuit Rating: 100 kA
• Enclosure Rating: NEMA 1
• Warranty Length: 18 months
