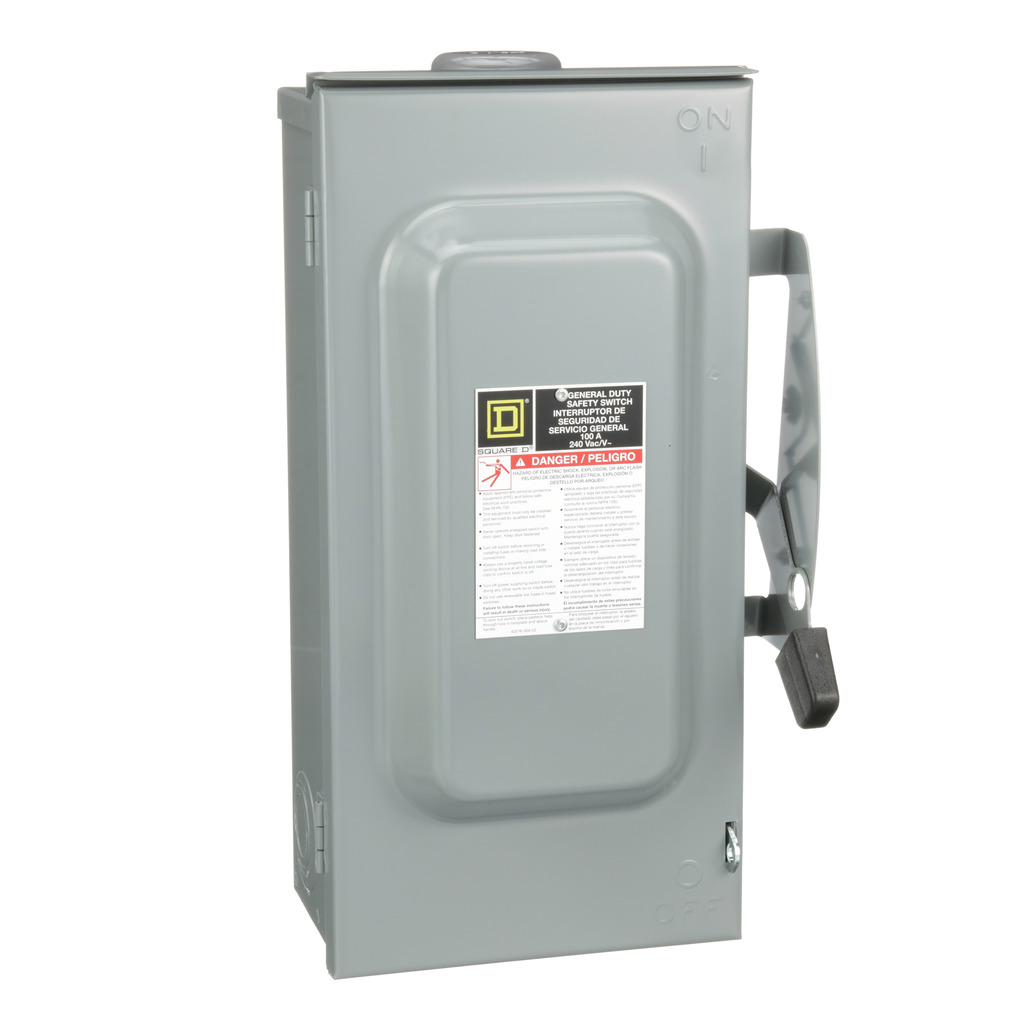

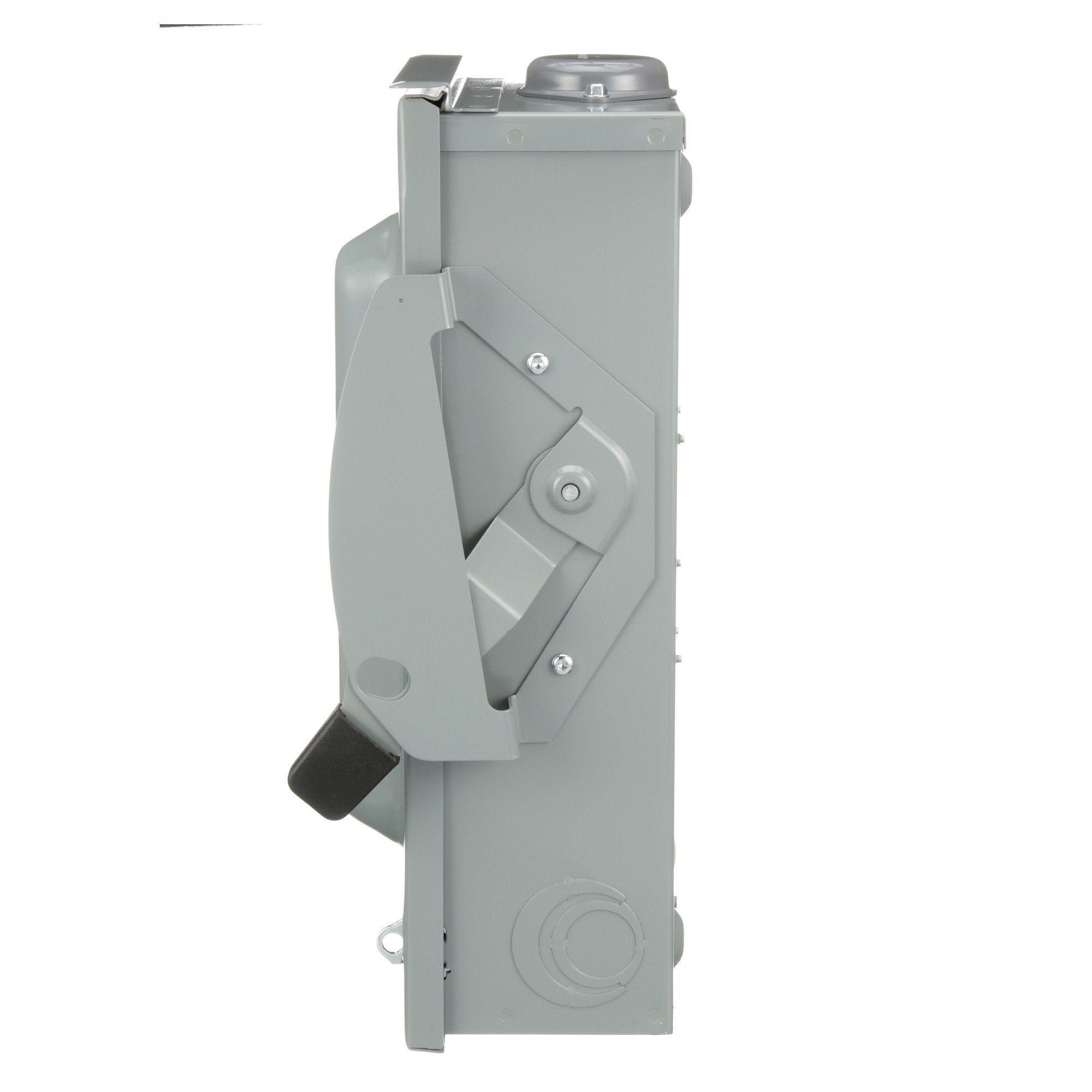

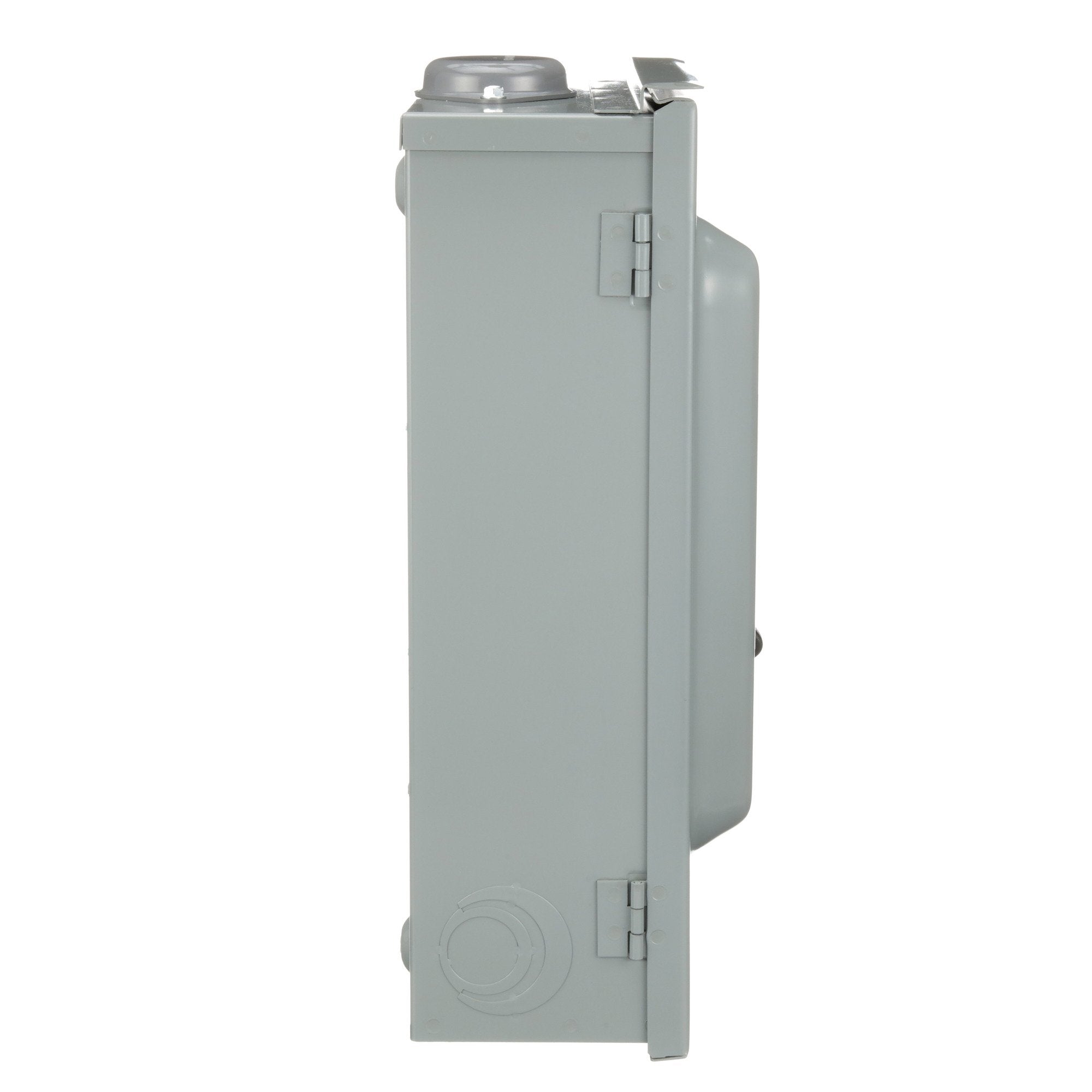

Square D D223NRB Safety Switch Fusible 100A 2P NEMA-3R 240V Single Throw

Product Description

The Square D D223NRB is a safety switch designed for general duty applications. This fusible disconnect switch handles a rated current of 100 Amps with a voltage capacity of 240 Volts. The unit is suitable for both residential and commercial usage, providing reliable service for lighting, appliances, and air conditioning units.

• UL Listed for safety and compliance
• NEMA 3R rated for indoor and outdoor use
• Surface mounted with factory-installed neutral

Product Highlights

This safety switch is ideal for protecting electrical circuits in various locations, ensuring safe disconnection during maintenance and servicing.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: D223NRB
• Rated Current: 100 A
• Voltage: 240 V
• Number of Poles: 2 Pole
• Height: 17.5 inches
• Width: 10.56 inches
• Depth: 6.5 inches
• Weight: 15.43 lb
• Enclosure Rating: NEMA 3R
• Fuse Type: H, K, or R
• Wire Size Compatibility: AWG 14 to AWG 1 copper; AWG 12 to AWG 1 aluminum
• Short Circuit Rating: 100 kA
• Certifications: UL Listed
• Warranty Length: 18 months
• Country of Origin: USA
