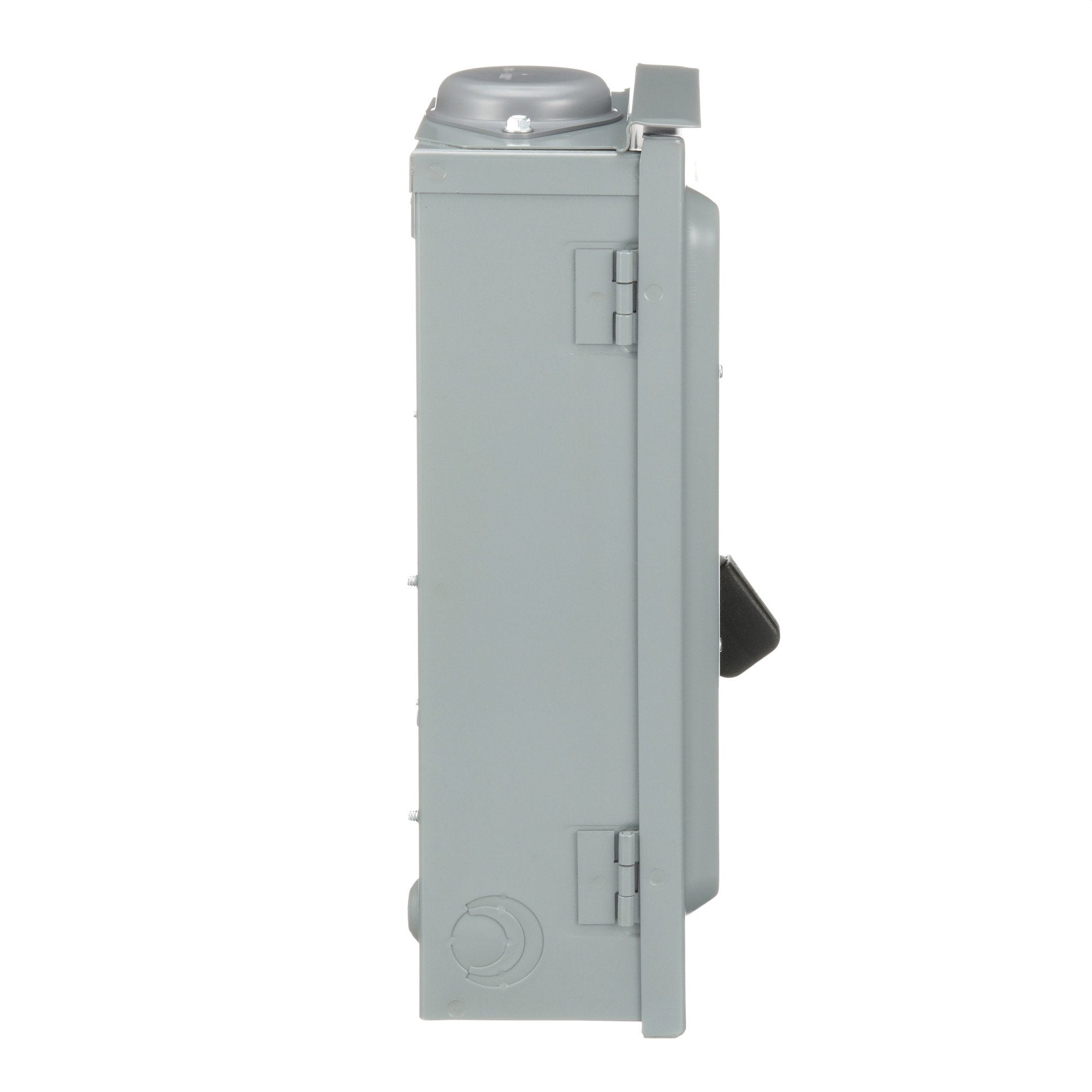

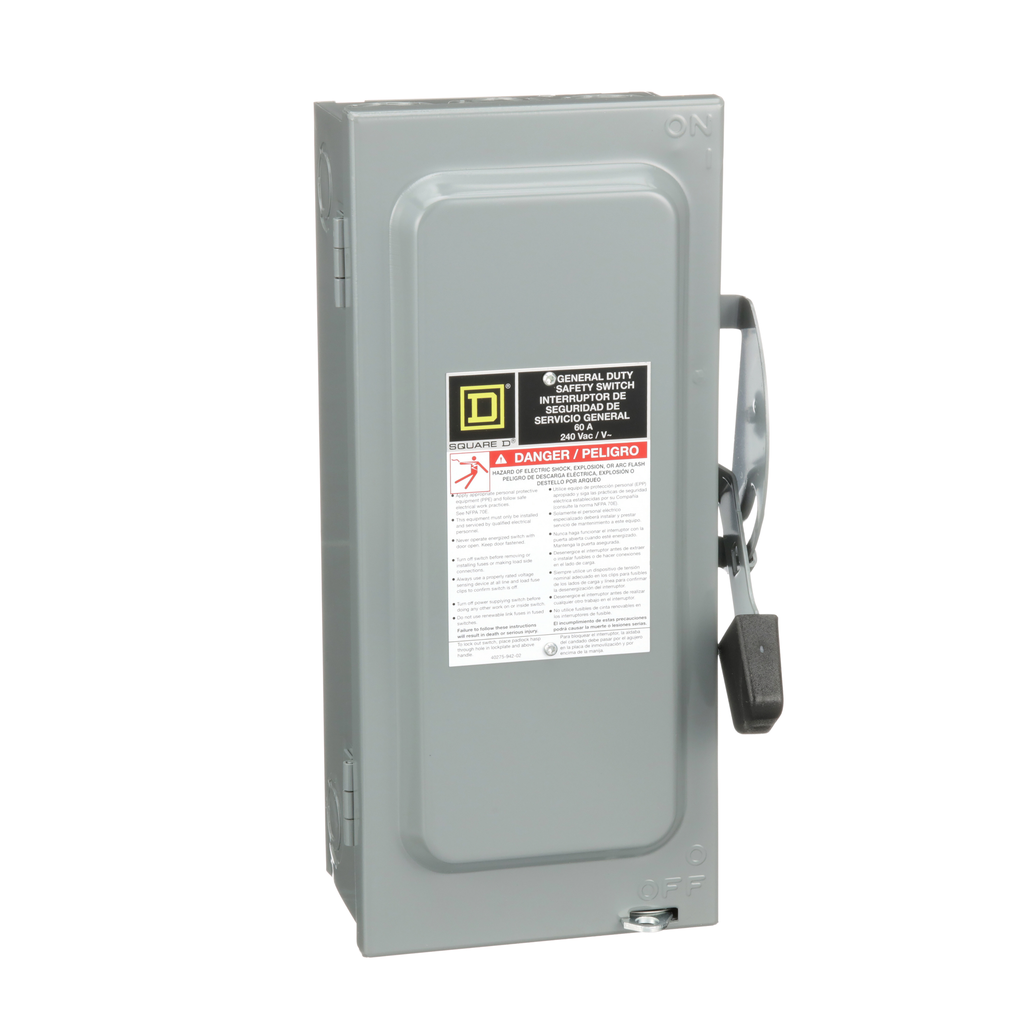

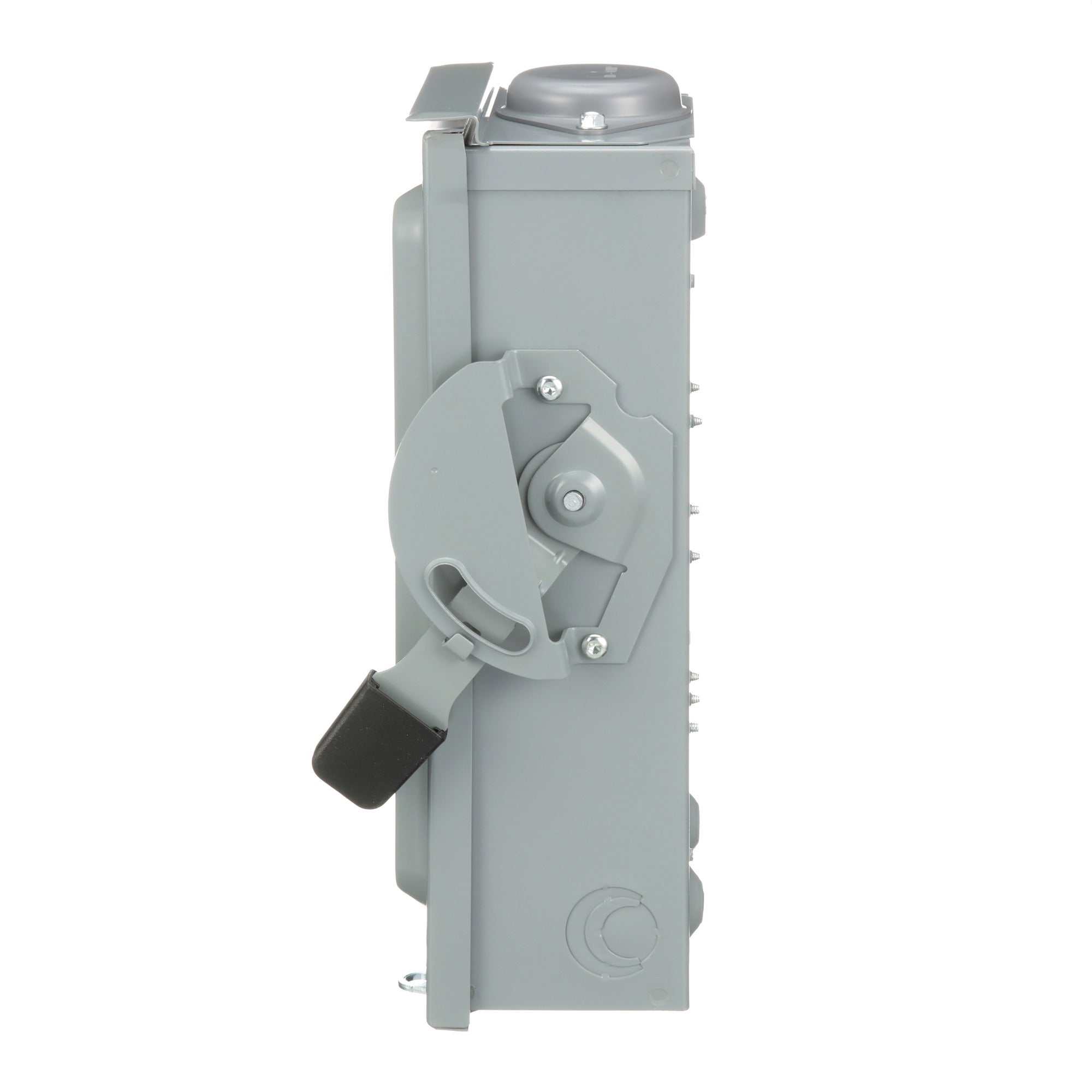

Square D D222N Safety Switch Fusible 60A 2P NEMA-1 240V Single Throw

Product Description

The Square D D222N is a safety switch known for its reliability in both residential and commercial settings. This model serves as a fusible disconnect, equipped with a 60 Amp rating and suitable for two-pole applications. Its design allows it to handle a voltage of 240VAC, making it ideal for lighting, air conditioning, and various appliances.

• Designed for general duty applications
• UL Listed and meets NEMA standards
• Contains a factory-installed neutral assembly

Product Highlights

This general duty safety switch features a NEMA 1 enclosure for indoor use, suitable for a variety of loads.

Product Information

Standard Information

• Catalog Number: D222N
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 240 Volt
• Current Rating: 60 Amp
• Number of Poles: 2 Pole
• Enclosure Rating: NEMA 1
• Fuse Type: H, K, or R
• Short Circuit Rating: 100 kA
• Weight: 8.82 lb
• Dimensions: 14.88 inches (H) x 7.45 inches (W) x 4.87 inches (D)
