Square D D221NRB Safety Switch Fusible 30A 2P NEMA-3R 240V Single Throw

Product Description

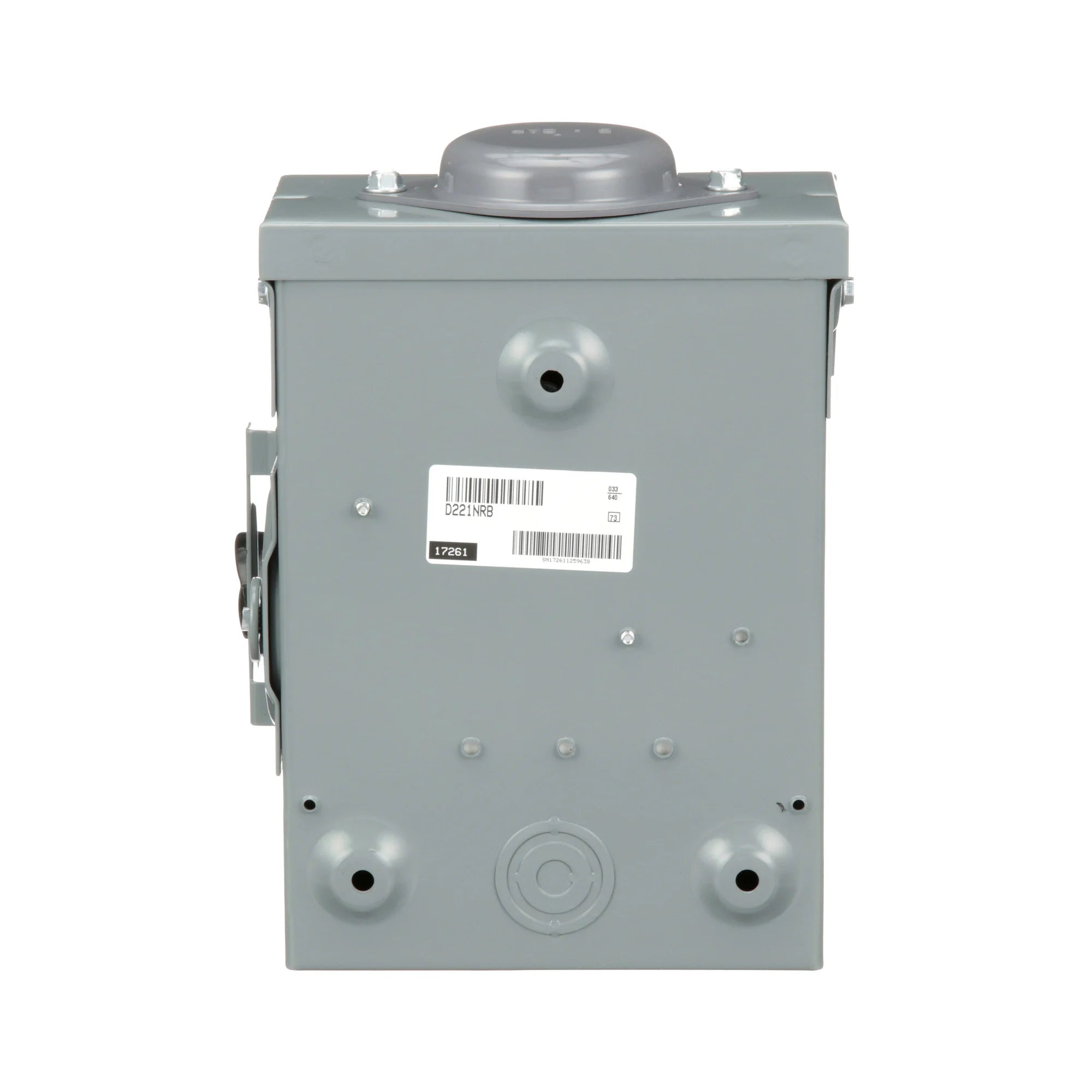

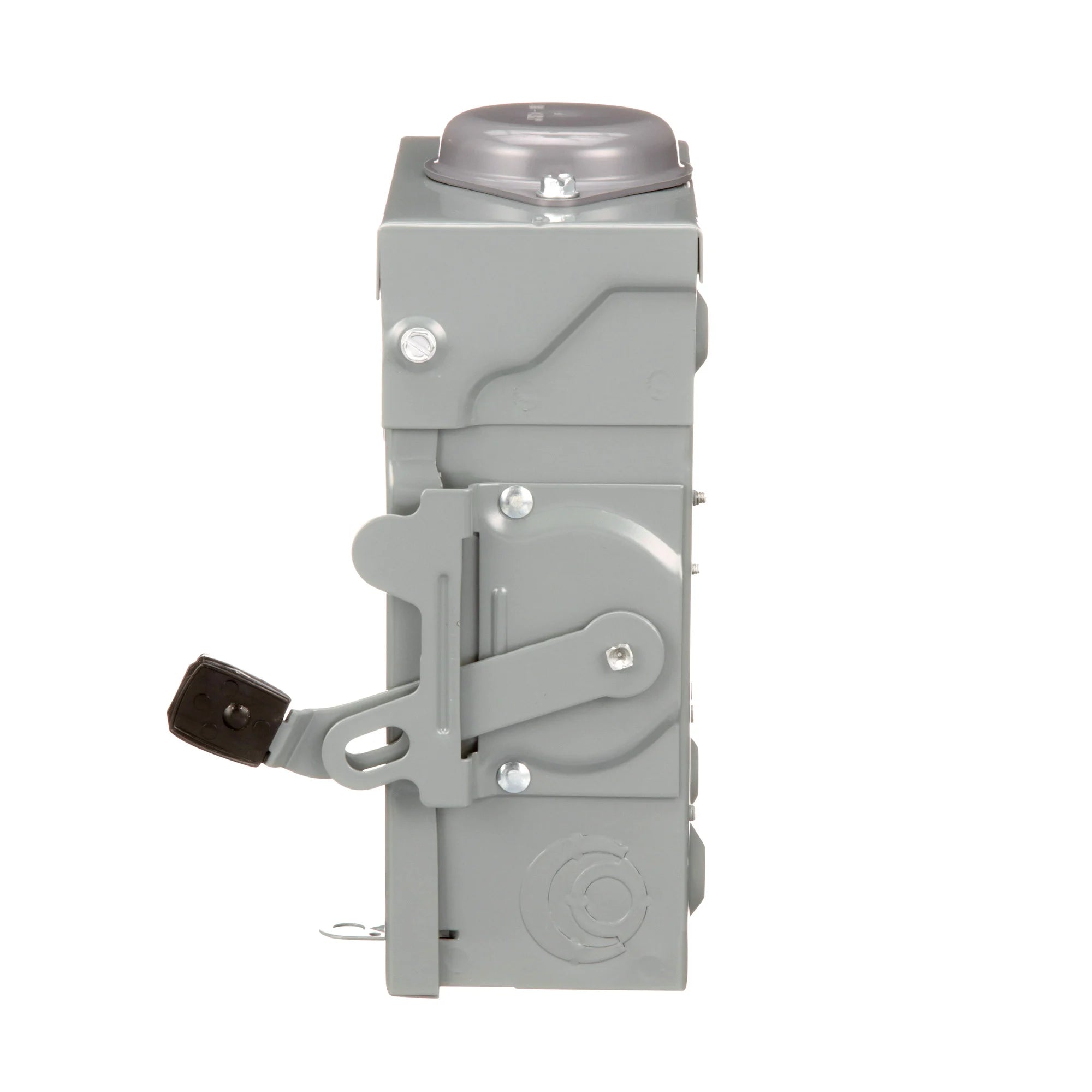

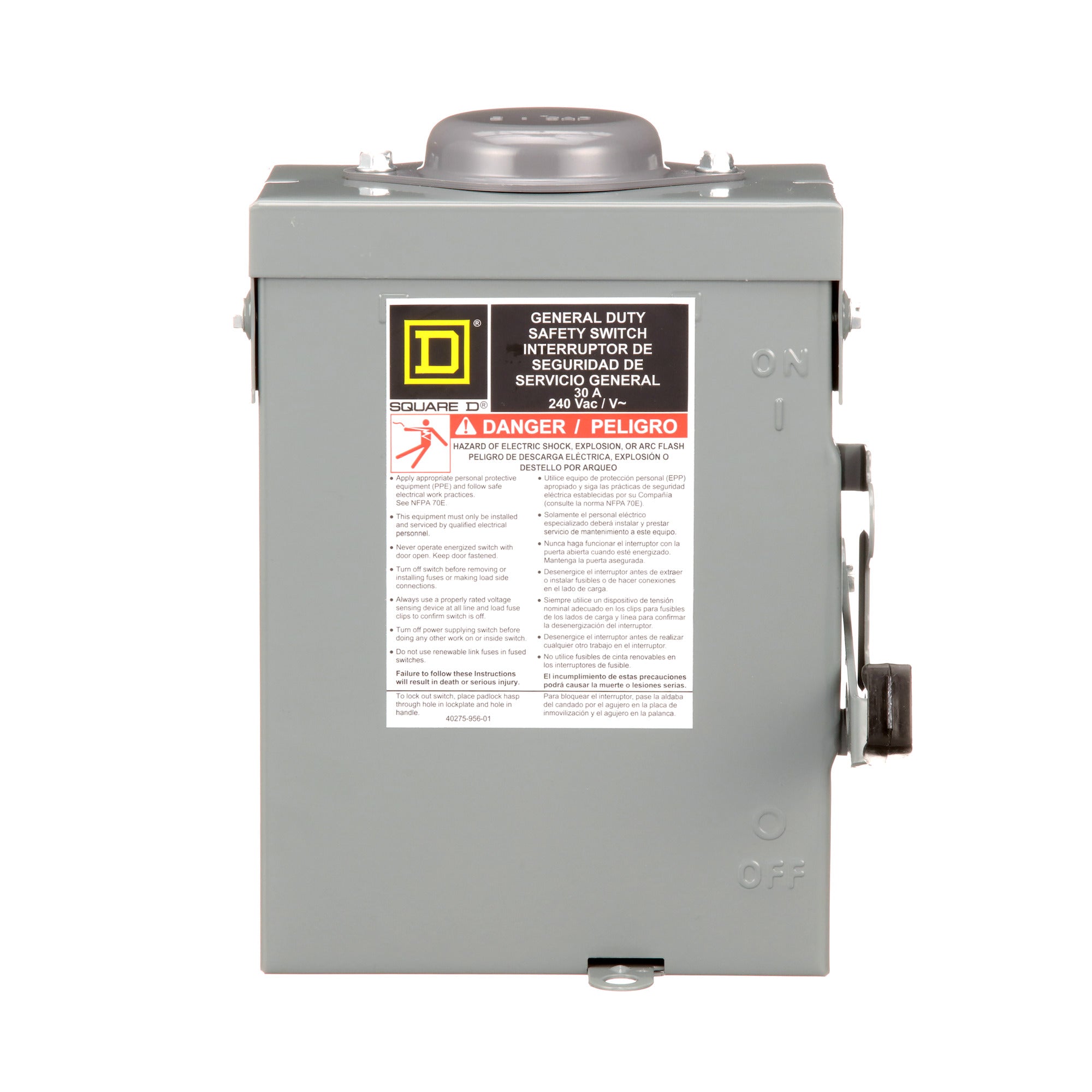

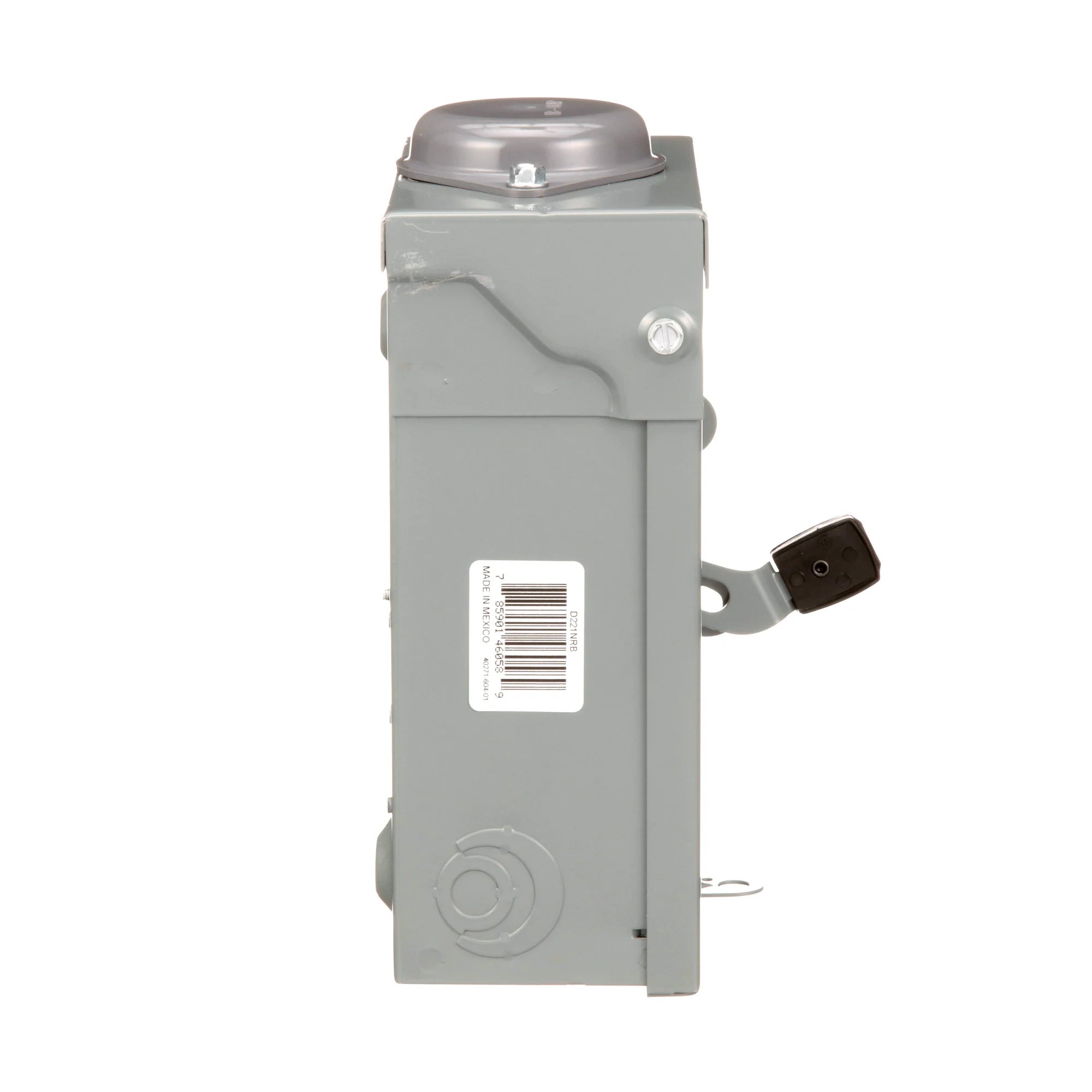

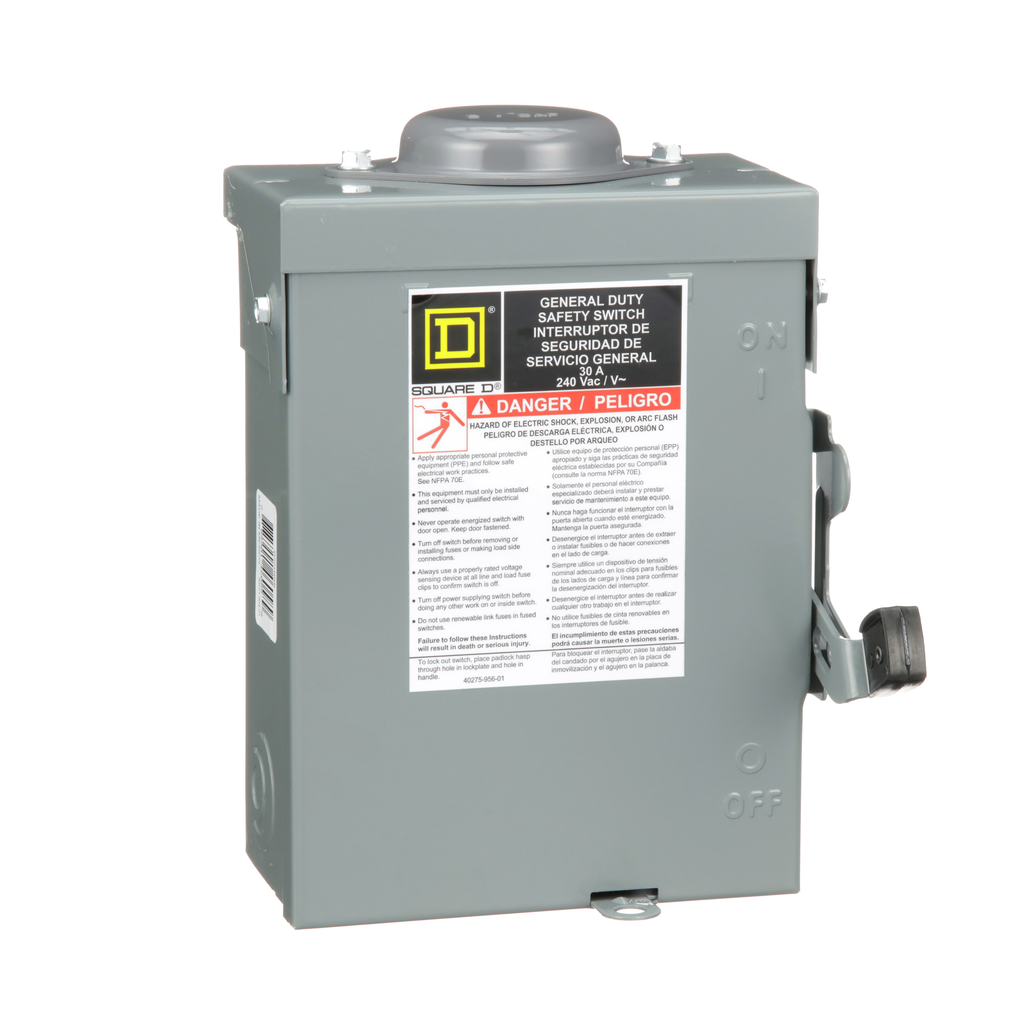

The Square D D221NRB is a safety switch fusible with a rated current of thirty amps and designed for two poles. This switch is suitable for use in applications involving service equipment as it includes a factory-installed neutral assembly. It is a general duty safety switch appropriate for both residential and commercial settings.

• Rated for 30 Amps with a NEMA 3R enclosure.
• Fusible disconnect switch with a short circuit rating of 100 kA.
• Surface mounted and accepts wire sizes from AWG 14 to AWG 6 for copper and aluminum.

Product Highlights

Durable construction suitable for lighting, air conditioning, and appliances. Certified to UL standards and meets NEMA requirements.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: D221NRB
• Height: 9.25 inches
• Width: 7.25 inches
• Depth: 3.63 inches
• Weight: 16.98 lb
• Current: 30 Amp
• Voltage: 240 Volt
• Fuse Type: H, K, or R
• Applications: General Duty
• Warranty Length: 18 months
• Country of Origin: Mexico
