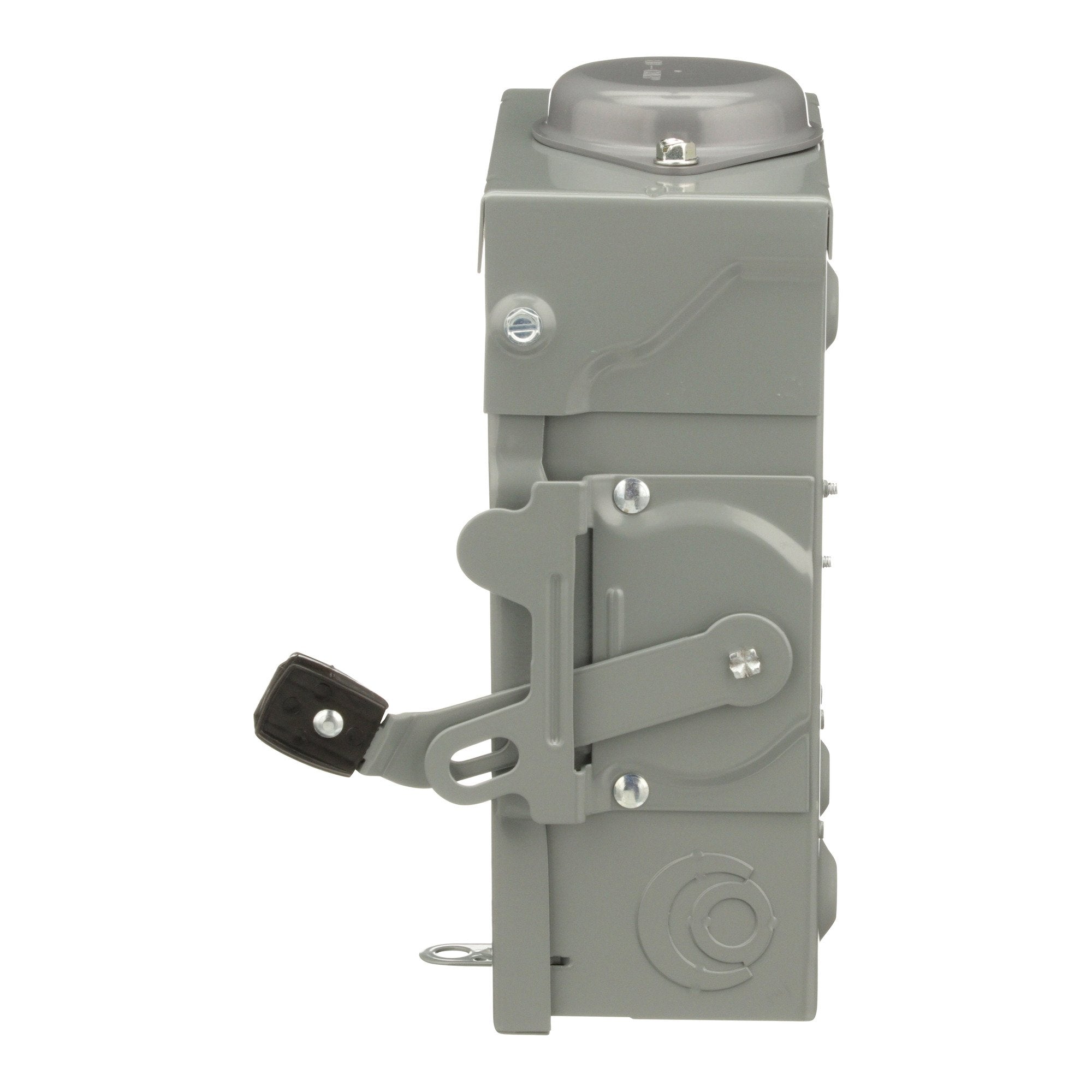

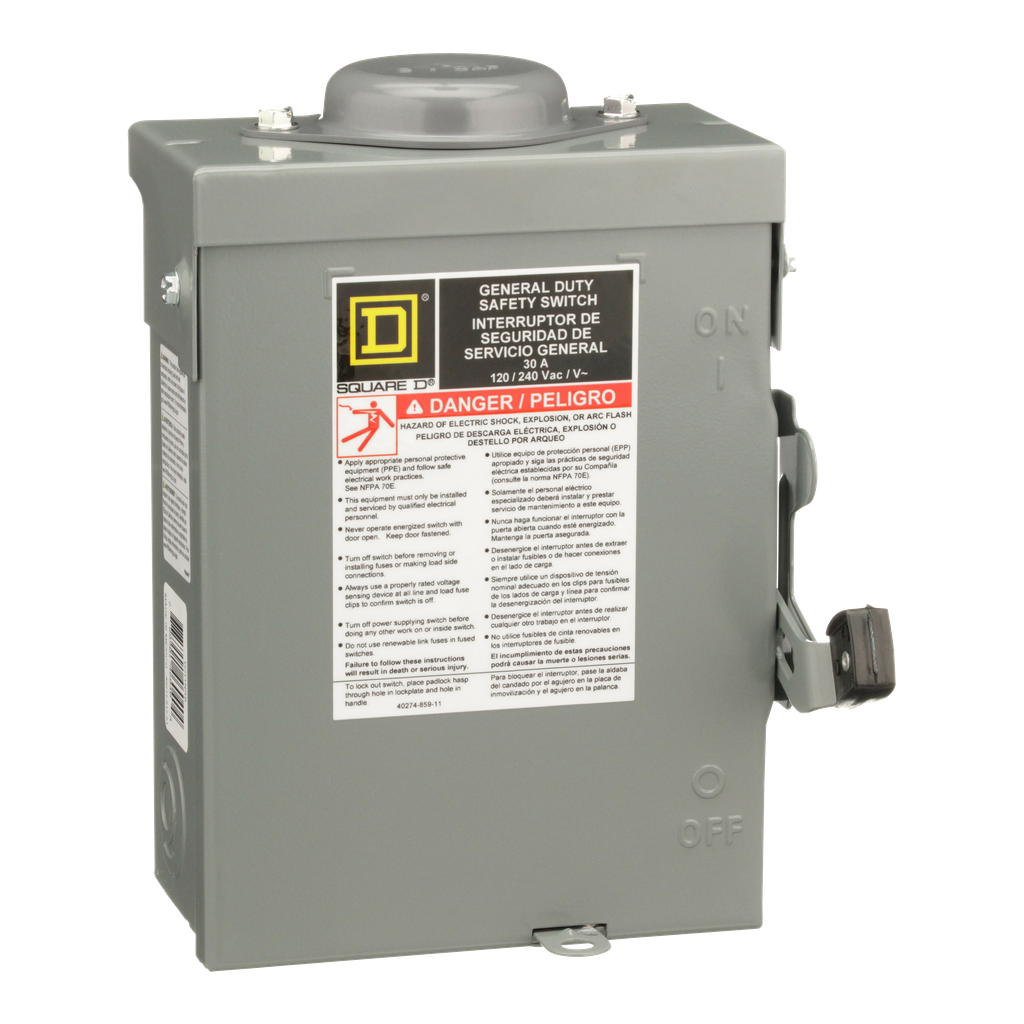

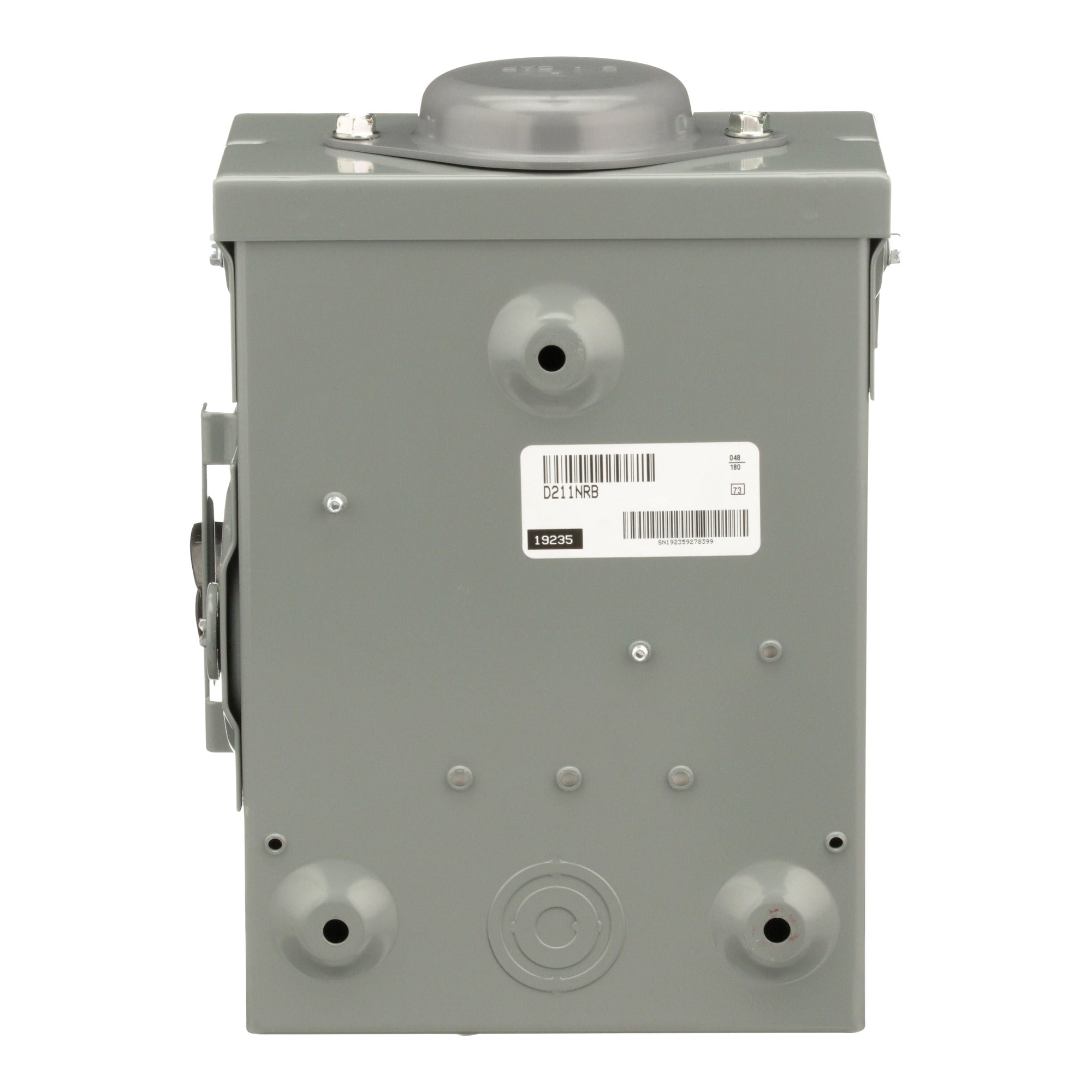

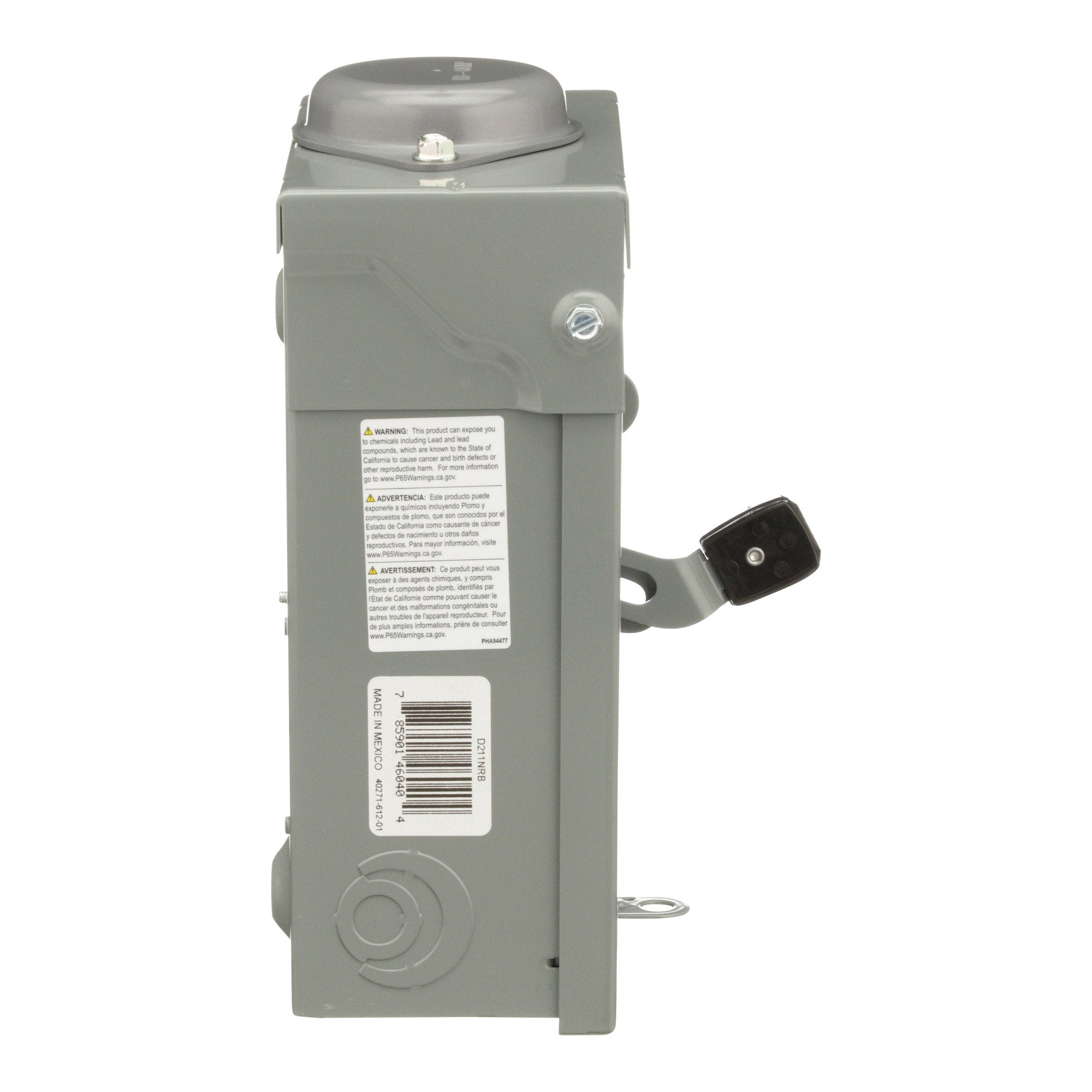

Square D D211NRB 30 Amp 2-Pole Fusible General Duty Safety Switch

Product Description

The Square D D211NRB is a 30 Amp, two-pole fusible general-duty safety switch with a voltage rating of 120/240 Volt. This switch is designed for residential and commercial applications, where it offers reliable disconnection of electrical circuits. It features a NEMA 3R enclosure that is built to withstand outdoor conditions.

• Designed for safeties in residential and commercial settings
• 30 Amp capacity with 120/240 Volt voltage rating
• Factory-installed neutral and accepts plug fuses only

Product Highlights

The D211NRB is engineered for durability and economy. It serves various typical loads, including lighting and HVAC systems. This single-throw safety switch installs surface-mounted and is equipped with lugs suitable for both copper and aluminum conductors.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: D211NRB
• Type: Fusible disconnect switch
• Current Rating: 30 Amp
• Voltage Rating: 120 Volt
• Enclosure Rating: NEMA 3R
• Dimensions: 3.63 inches (depth) x 7.25 inches (width) x 9.25 inches (height)
• Weight: 22.05 lbs
• Number of Poles: 2 Pole
• Country of Origin: Mexico
• UL Listed: Yes
• Warranty Length: 18 months
