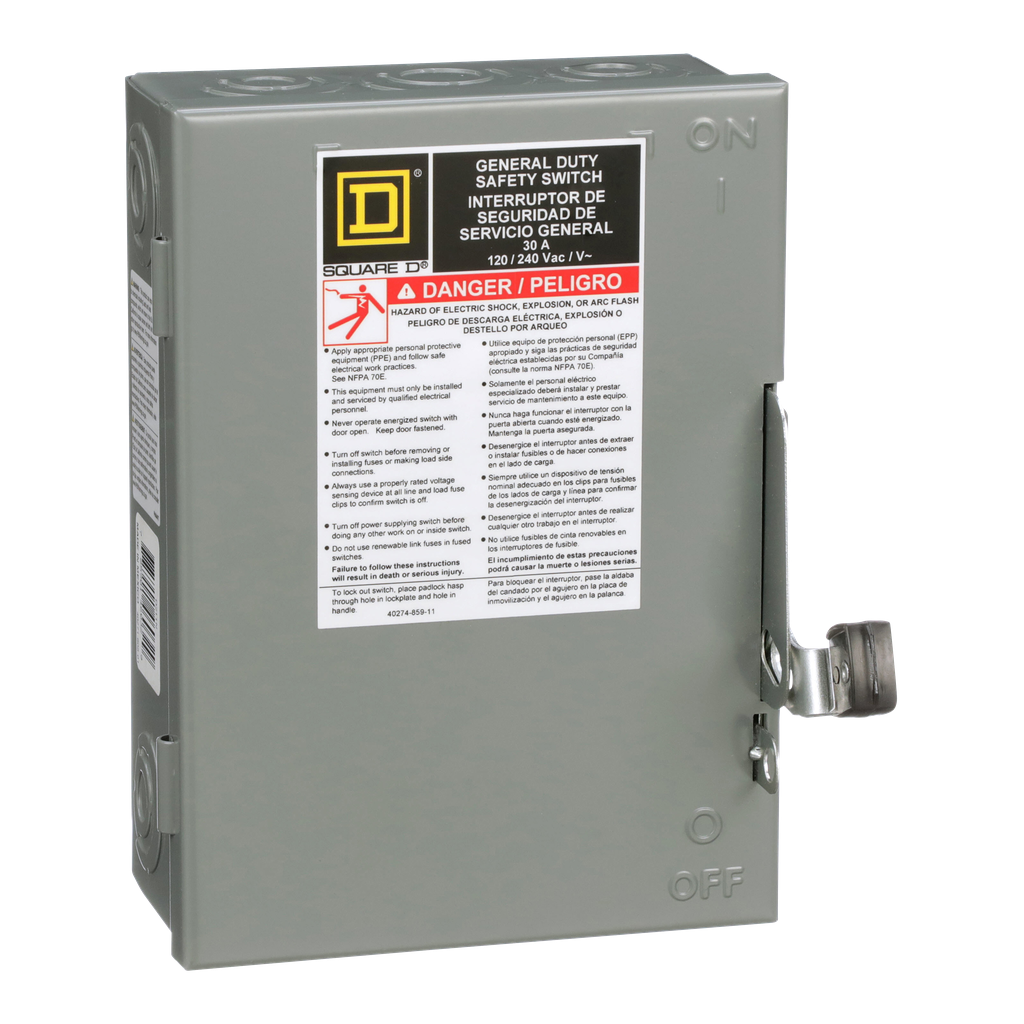

Square D D211N Safety Switch Fusible GD 120/240V 30A 2P Plug NEMA-1

Product Description

The Square D D211N is a fusible safety switch designed for both residential and commercial applications. This switch serves as a vital component in the management of electrical power to various loads such as lighting and air conditioning. With a 30 Amp rating and 120/240 Volt capability, it provides reliable service in demanding environments.

• Rated for 30A and suitable for 120 VAC applications
• Surface-mounted with a NEMA 1 enclosure
• UL Listed for safety and reliability

Product Highlights

This general duty safety switch meets the NEMA Standard KS1 and includes a factory-installed neutral assembly. It is designed for easy electrical connections, accepting AWG 14 through AWG 6 for both copper and aluminum conductors.

Product Information

Standard Information

• Brand: Square D
• MPN: D211N

Technical Specifications

• Current Rating: 30 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2 Pole
• Enclosure Type: NEMA 1
• Short Circuit Current: 10 kA
• Dimensions: 9.25 in x 7.25 in x 3.63 in
• Weight: 16.01 lb
• Warranty: 18 months
