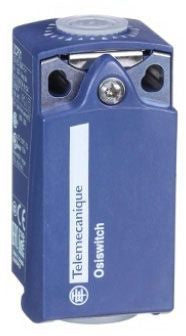

Square D Co. ZCP21 Telemecanique Limit Switch 240Vac 10Amp Plastic

Product Description

Square D Co. ZCP21 is a limit switch designed for applications requiring precision control. This switch operates at two hundred forty volts and ten amps, making it suitable for various industrial and motor control uses.

• Compact design for easy installation.
• Plastic material construction enhances durability.
• Snap action operation for quick and reliable performance.

Product Highlights

The ZCP21 operates with a contact configuration of two poles, featuring one normally closed and one normally open contact design, ensuring versatility in applications.

Product Information

Standard Information

• UPC: 78590129038
• Manufacturer: Square D Co.

Technical Specifications

• Operating Temperature: -13 to 158 degrees F
• Material: Plastic
• Approval: UL 508, CSA C22.2
• Used On: XCKP Series Limit Switch
• Contact Rating: 1.5 Amp at 240 Volt / 0.1 Amp at 250 Volt (EN/IEC 60947)
• Contact Configuration: 2-Pole, 1NC-1NO
• Operation Type: Snap Action
• Connection Type: Screw Clamp Terminal
