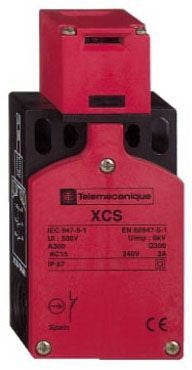

Square D Co. XCSTA892 Telemecanique Safety Interlock 300Vac 10A Xcsta

Product Description

The Square D Co. XCSTA892 is a safety interlock designed for use with industrial machinery. This unit operates at 300 Volts AC and has a current rating of 10 Amperes, ensuring reliable performance in various applications.

• Dimensions: 2.05 inches wide, 1.18 inches deep, and 4.52 inches high.
• Constructed with a plastic enclosure that meets NEMA 4/4X/12 and IP67 standards.
• Features an M16 x 1.5 mm cable gland connection type.

Product Highlights

This product is suitable for machine safety applications, providing essential safeguards for equipment operation. It is compliant with UL 508 and CUL standards, making it a trustworthy choice for safety systems.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Brand: Square D Co.

Technical Specifications

• UPC: 78590169440
• Size: 2.05 inches W x 1.18 inches D x 4.52 inches H
• Enclosure: NEMA 4/4X/12, IP67
• Contact Rating: 300 VAC 10 Ampere, 300 VDC 2.5 Ampere
• Operating Temperature: -13 to 158 Deg F
• Actuator Type: Straight/Wide/Pivoting/Right Angled/Guard Actuator
• Safety Contact: 3NC Slow Break
• Number of Key Entry Positions: 8
