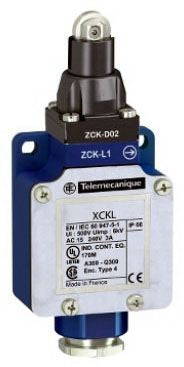

Square D Co. XCKL102 Telemecanique Limit Switch 240Vac 10Amp XCKL +Options

Product Description

Square D Co. XCKL102 is a limit switch designed for use with 240VAC at 10Amps. This device is ideal for various motor control applications where precise actuation is required. Its compact and general-duty construction makes it suitable for a range of environments.

• Compact design suitable for general duty applications.
• SPDT configuration with one normally open and one normally closed contact.
• Durable construction featuring UL and CSA approvals.

Product Highlights

This limit switch operates effectively in various conditions, ensuring reliable performance and safety.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Brand: Square D Co.

Technical Specifications

• UPC: 78590164648
• Operating Force: 8.09 Lb
• Pretravel: 3.1 MM
• Differential Travel: 1.5 MM
• Connection Type: 1/2 Inch NPT Conduit
• Operating Temperature: -13 to 158 Deg F
• Body Material: Zamak Zinc Alloy
• Enclosure: NEMA 1/2/4/6/6P/12/13, IP66
• Approval: UL, CSA
• Catalog Number: XCKL102
• Contact Rating: 240 VAC 3 Ampere, 250 VDC 0.27 Ampere
• Contact Configuration: SPDT, 1NO-1NC
• Actuator/Head Type: Steel Roller Plunger Head
• Operation Type: Snap Action
• Applicable Standard: EN/IEC 60204-1, EN/IEC 60947-5-1
