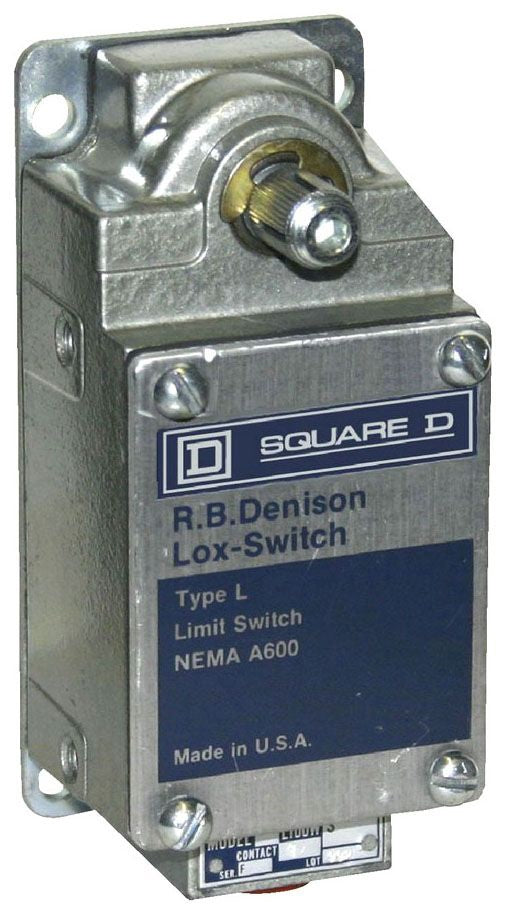

Square D Co. L100WTL2M14 Telemecanique Limit Switch 600V 10Amp Type L +Options

Product Description

Square D Co. L100WTL2M14 is a limit switch designed for heavy-duty applications. It operates at six hundred volts and supports a maximum of ten amperes. It features a severe-duty and extra heavy-duty design suitable for challenging environments.

• Contact configuration: 1NO-2NC
• Connection type: 1/2 inch NPT conduit
• Operating temperature range: -10 to 185 degrees Fahrenheit

Product Highlights

This switch provides reliable operation in severe conditions. Its robust construction ensures longevity and dependability.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Model: L100

Technical Specifications

• Contact Rating: 600 VAC 20 Ampere, 600 VDC 5 Ampere
• Full Technical Description: Severe Duty, Extra Heavy Duty, Fixed Sequence Type; 1/2 Inch NPT Conduit (Metric Thread) Connection Type; Clockwise, Spring Return, Snap Action Operation Type; Cast Aluminum Body Material
• Approval: UL, CSA, CE
• Enclosure: NEMA 1/2/4/12/13, IP65, IP66, IP67
• Operating Force: 190 oz-Inch
• Total Travel: 80 degrees
• Pretravel: 17 degrees
• Differential Travel: 11 degrees
• Actuator/Head Type: Rotary Lever
