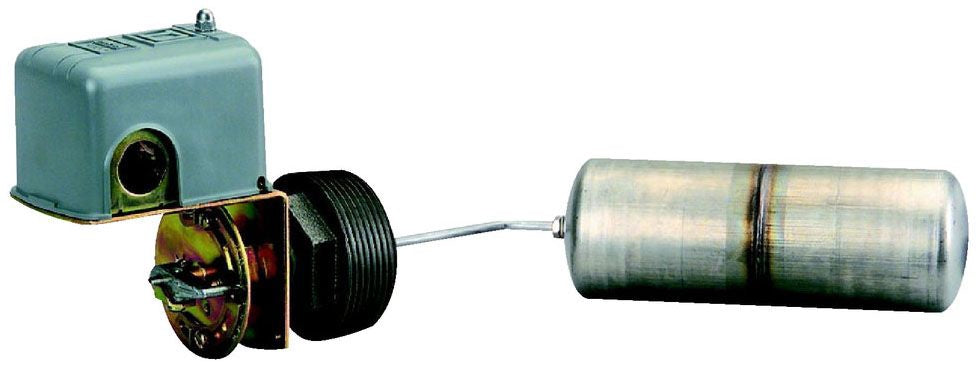

Square D Co. 9037HG34 Telemecanique Float Switch 575Vac 1Hp H +Options

Product Description

Square D Co. 9037HG34 is a float switch designed for applications requiring reliable liquid level control. It operates at 575 volts with a one horsepower rating. This model features a closed tank type and is suitable for various industrial uses.

• Polypropylene construction for durability
• Compatible with 230 VAC 1-phase and 575 VAC 3-phase systems
• NEMA 1 enclosure for indoor use

Product Highlights

This float switch is ideal for monitoring liquid levels in closed tanks. Its robust design ensures that it can withstand demanding environments while maintaining consistent performance.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Brand: Square D Co.

Technical Specifications

• Voltage Rating: 230 VAC 1-Phase, 575 VAC 3-Phase, 230 VDC
• Power Rating: 3 HP at 230 VAC 1-Phase, 5 HP at 230 VAC 3-Phase, 1/2 HP at 230 VDC
• Contact Configuration: 2-Pole, 2NO
• Float Type: 304 Stainless Steel
• Float Size: 2.5 Inch Dia x 6.94 Inch L
• Material: Polypropylene
• Operating Temperature: -22 to 220 Deg F
• Enclosure: NEMA 1
• Approval: UL, CSA
• Model: 9037HG
• Catalog Number: 9037HG34
• Operator Type: 45 Deg Offset Float Rod
• Sub-Category: Float Switch
