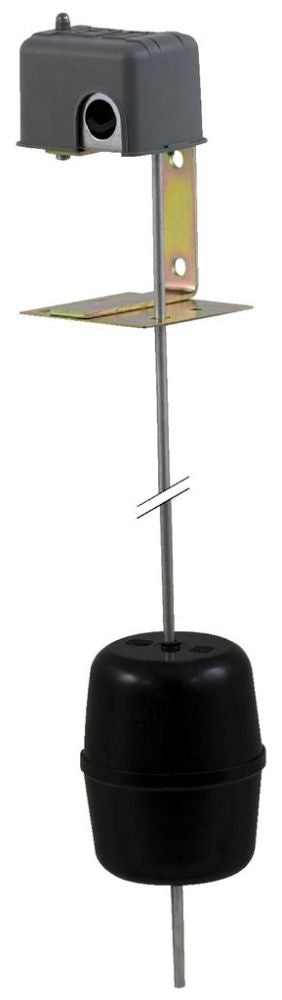

Square D Co. 9036FG30 Telemecanique Float Switch Only

Product Description

Square D Co. presents the 9036FG30, a Telemecanique Float Switch designed specifically for open tank and sump applications. This float switch utilizes a polypropylene construction and offers a reliable two-pole, two normally open and two normally closed (2NO/2NC) contact configuration.

• Approved by UL and CSA for safety
• Operates with a voltage rating of 230 VAC 1-phase, 475 VAC 3-phase, or 230 VDC
• Rated for 3 HP at 230 VAC 1-phase, 5 HP at 230 VAC 3-phase, and 1/2 HP at 230 VDC

Product Highlights

The Square D 9036FG30 Float Switch is ideal for controlling liquid levels in various applications, ensuring efficient operation.

Product Information

Standard Information

• Brand: Square D Co.
• Model: 9036FG

Technical Specifications

• UPC: 78590100920
• Type: Open Tank/Sump
• Material: Polypropylene
• Enclosure Rating: NEMA 1
• Approval: UL, CSA
• Operating Temperature: -22 to 220 Deg F
• Contact Configuration: 2-Pole, 2NO/2NC
• Operator Type: Single Arm Lever
• Power Rating: 3 HP at 230 VAC 1-Phase, 5 HP at 230 VAC 3-Phase, 1/2 HP at 230 VDC
