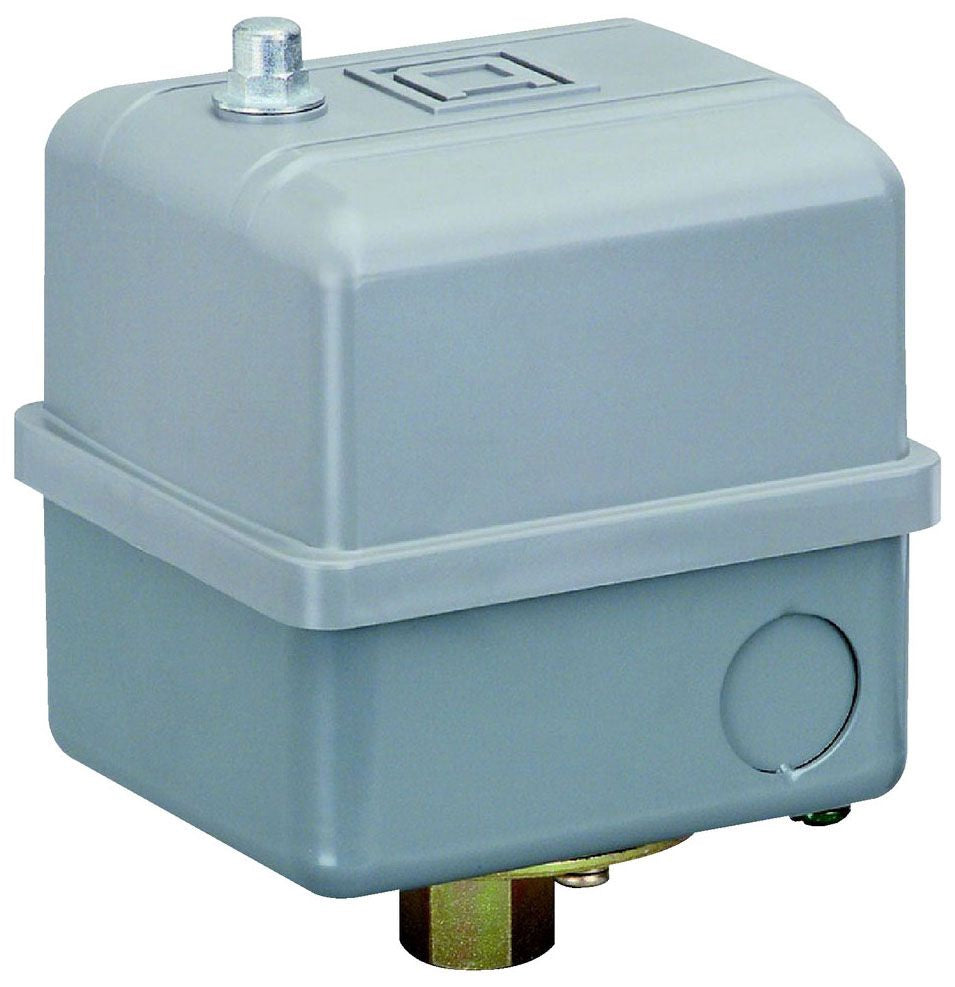

Square D Co. 9013GHG2J33 Telemecanique Pressure Switch 575Vac 5Hp G Options

Product Description

Square D Co. 9013GHG2J33 is a pressure switch designed for applications requiring reliable pressure control. This unit operates at a voltage of five hundred seventy-five volts alternating current and is suitable for five horsepower systems. It is ideal for air compressors and water pumps.

• Adjustable differential type for versatile pressure settings
• Durable polypropylene enclosure rated NEMA 1
• UL, CSA, and CE approved for safety compliance

Product Highlights

This pressure switch is built for dependable performance and easy installation.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Brand: Square D Co.

Technical Specifications

• UPC: 78590118797
• Contact Configuration: DPST
• Connection Type: 1/4 Inch Female Threaded
• Enclosure: NEMA 1, IP20
• Enclosure Material: Polypropylene
• Application: Water Pump, Air Compressor
• Approval: UL 508, CSA, CE
• Differential Pressure Rating: 20 to 40 PSI
• Pressure Media: Air/Water
• Operating Pressure Rating: 40 to 170 PSI (Cut-In), 65 to 200 PSI (Cut-Out)
• Specifications: Adjustable Differential Type, Snap-Action
• Overall Dimensions: 3.44 Inch Width x 3.88 Inch Depth x 5.4 Inch Height
