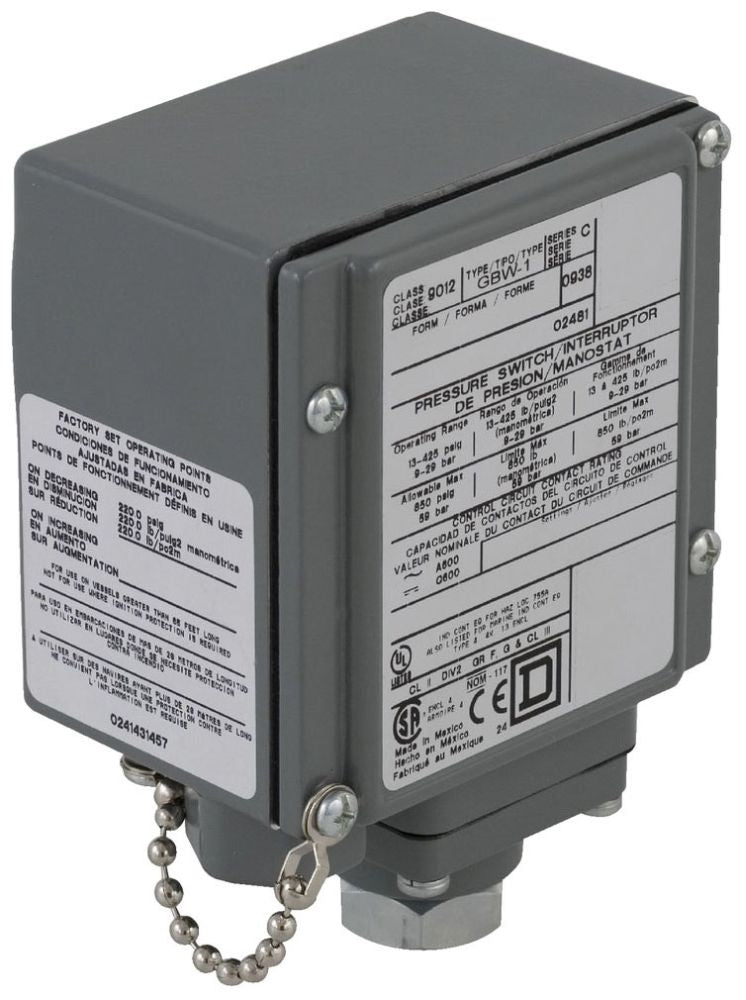

Square D Co. 9012GBW21 Telemecanique Pressure Switch 480Vac 10Amp G +Options

Product Description

The Square D Co. 9012GBW21 is a Telemecanique pressure switch designed for use with electrical systems operating at up to 480 volts AC and ten amperes. This adjustable differential type switch provides reliable pressure management in a variety of industrial applications.

• Adjustable differential pressure with a range of thirteen to four hundred twenty-five psig
• Durable zinc-plated steel enclosure ensures longevity
• Compatible with various pressure media including air, gas, hydraulic oil, steam, and water

Product Highlights

The 9012GBW21 meets necessary industry standards and offers robust capabilities for controlling pressure in motors and other equipment.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Brand: Square D Co.

Technical Specifications

• UPC: 78590102484
• Contact Configuration: DPDT 4 Circuit
• Contact Rating: 120 to 600 VAC 10 Ampere, 125 to 600 VDC 10 Ampere
• Connection Type: 1/4 Inch-18 TPI FNPT
• Enclosure: NEMA 4/4X/13
• Enclosure Material: Zinc Plated Steel
• Application: Industrial
• Approval: UL, CSA, CE
• Maximum Line Pressure Rating: 850 psig
• Operating Pressure Rating: 13 to 425 psig
• Differential Pressure Rating: 16 to 90 psig
• Pressure Media: Air, Gas, Hydraulic Oil, Steam, Water
• Model: 9012
