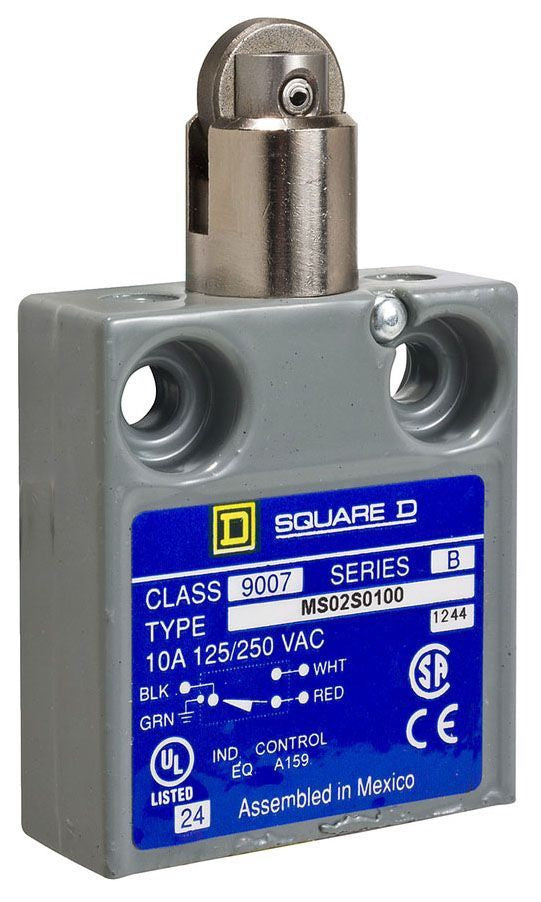

Square D Co. 9007MS02S0100 Telemecanique Limit Switch 240Vac 10Amp Ms Option

Product Description

Square D Co. presents the 9007MS02S0100 limit switch. This compact and heavy-duty limit switch operates at 240 VAC and supports a contact rating of 10 Amperes. It is ideal for applications such as machine tools, general transportation, and earth-moving equipment.

• Heavy-duty, compact design.
• Snap action operation for reliable performance.
• Pre-wired with eighteen AWG cable for convenient installation.

Product Highlights

The Square D Co. 9007MS02S0100 limit switch is built for durability and functionality, suitable for various industrial applications.

Product Information

Standard Information

• Manufacturer: Square D Co.
• UPC: 78590155062

Technical Specifications

• Type: Heavy Duty, Compact, Miniature, Epoxy Encapsulation Sealed
• Model: 9007MS
• Contact Rating: 240 VAC 10 Ampere, 28 VDC 5 Ampere
• Connection Type: 18 AWG 3 Ft Yellow SJTO Pre-Wired Cable (Stranded)
• Operating Temperature: -4 to 220 Deg F
• Body Material: Rugged Die-Cast Zinc
• Enclosure: NEMA 1/2/4/6/6P/12/13, IP67
• Approval: UL, CSA, CE
• Contact Configuration: SPDT, 1NO-1NC
• Actuator/Head Type: Parallel Roller Plunger
• Operation Type: Snap Action
• Full Travel: 0.19 Inch
• Pretravel: 0.07 Inch
• Differential Travel: 0.004 Inch
