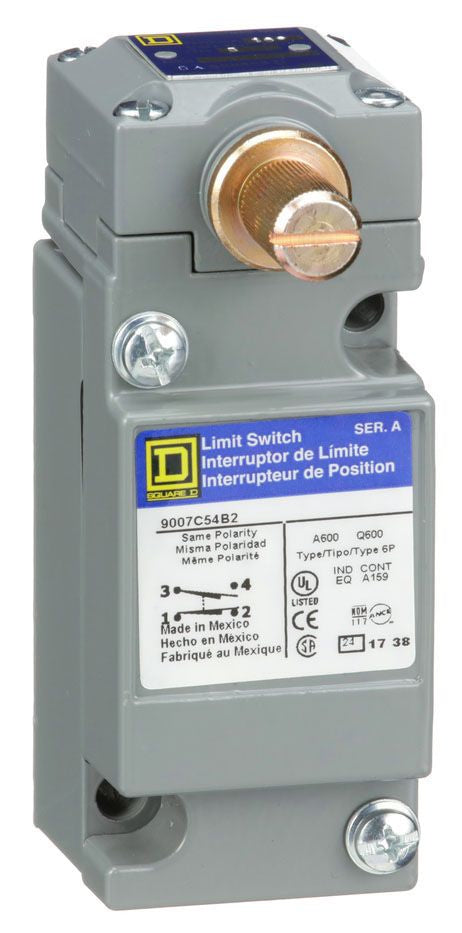

Square D Co. 9007C54B2 Telemecanique Limit Switch 600V 10Amp C Options

Product Description

Square D Co. 9007C54B2 is a heavy-duty limit switch designed for reliable performance at up to six hundred volts and ten amps. It features a plug-in design for easy installation and is suitable for various industrial applications.

• Contact configuration: SPDT, 1NO-1NC
• Operating temperature range: minus twenty to one hundred eighty-five degrees Fahrenheit
• Compact dimensions of one point fifty-four inches width, four point zero two inches depth, and one point seventy-seven inches height

Product Highlights

This limit switch is ideal for use in motor control systems, providing snap action and spring return operation. It supports a variety of connection types with multiple NEMA ratings, ensuring versatility across applications.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Approval: UL, CSA, CE

Technical Specifications

• Operating Force: 4 Pound-Inch
• Pretravel: 10 Degree
• Total Travel: 90 Degree
• Body Material: Die-Cast Zinc Alloy
• Enclosure Type: NEMA 1/2/4/6/6P/12/13, IP65/IP66/IP67
• Contact Rating: 600 Volt AC 10 Amp, 600 Volt DC 2.5 Amp
• Actuator Type: Metal Rotary Lever
• Connection Type: 22 to 12 AWG Screw Clamp Terminal, 1/2 Inch-14 Threaded Cable
