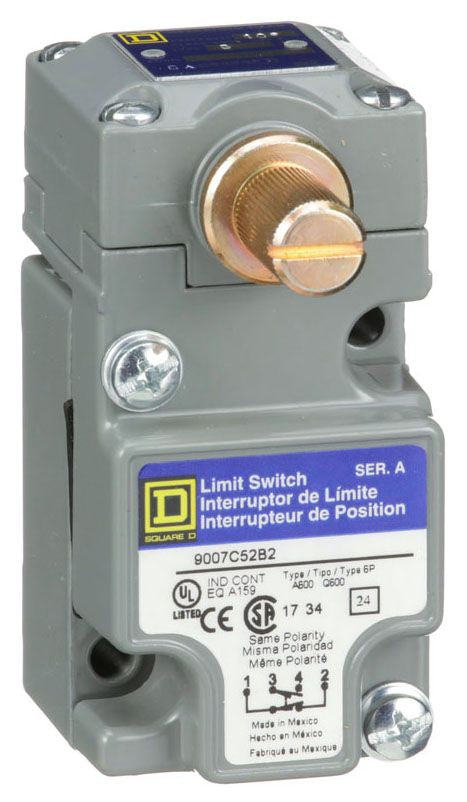

Square D Co. 9007C52B2 Telemecanique Limit Switch 600V 10Amp C +Options

Product Description

Square D Co. 9007C52B2 is an industrial limit switch used for controlling motor operations. This device is designed for heavy-duty use in various applications. It features a compact design suitable for tight spaces and has a high voltage capacity of six hundred volts. The switch supports a current rating of ten amps. It incorporates a snap-action mechanism for reliable operation.

• SPDT contact configuration with one normally open and one normally closed contact.
• Supports wire gauges from twenty-two to twelve AWG.
• Designed for clockwise and counterclockwise operation with a metal rotary lever actuator.

Product Highlights

This limit switch is ideal for industrial settings requiring precise motor control. Its durable construction ensures longevity and reliability.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Brand: Square D Co.

Technical Specifications

• UPC: 78590178336
• Contact Rating: 600 Volt AC 10 Amp, 600 Volt DC 2.5 Amp
• Operating Temperature: -20 to 185 Deg F
• Body Material: Die-Cast Zinc Alloy
• Enclosure: NEMA 1/2/4/6/6P/12/13, IP65/IP66/IP67
• Approval: UL, CSA, CE
• Dimensions: 1.54 Inch Width x 3.15 Inch Depth x 1.77 Inch Height
• Actuator/Head Type: Metal Rotary Lever
