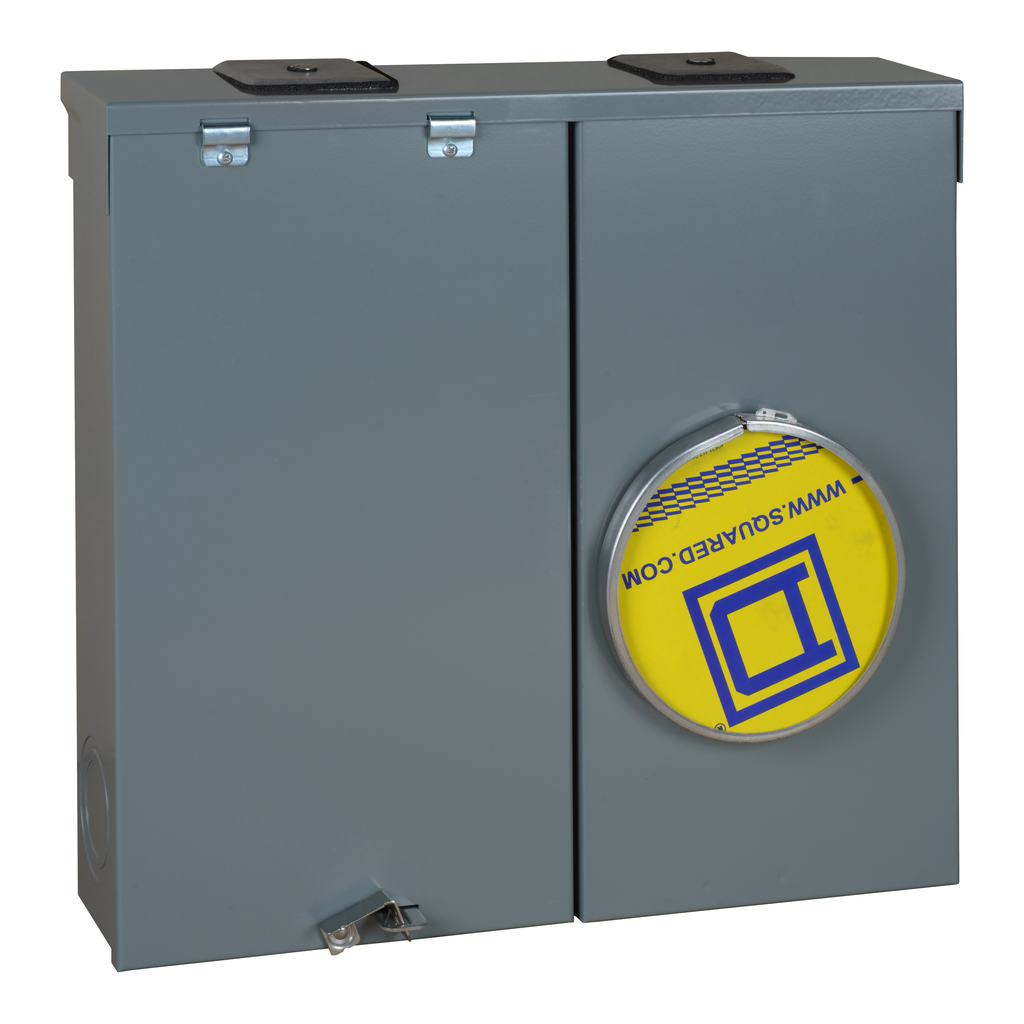

Square D CM200S 120/240 VAC 200 Amp 1-Phase 3-Wire NEMA 3R Overhead/Underground Service Ring Type Meter Main

Product Description

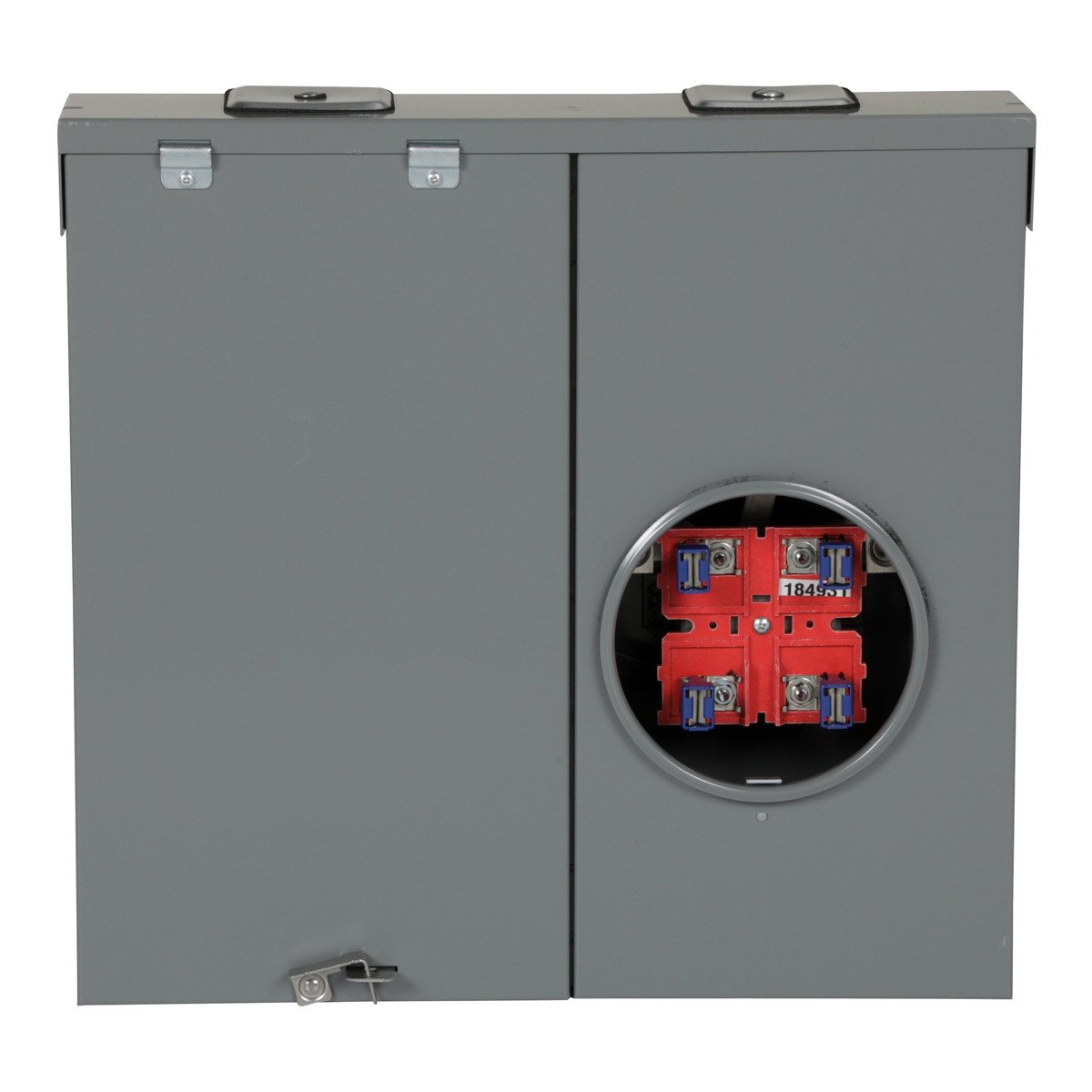

The Square D CM200S is a 120/240 VAC 200 Amp, single-phase meter main designed for overhead and underground service. This device is compliant with local codes that require service disconnects located outside the residence. It includes a meter socket for standard utility meters and a main disconnect breaker, which allows for efficient installation and maintenance.

• Designed for surface mounting to support easy installation.
• Current rating of 200 Amps with a short-circuit current rating of 10kA.
• Includes a factory-installed QOM2-VH main breaker.

Product Highlights

This meter main provides a reliable solution for electrical service in residential settings and meets standards set by EUSERC and Federal Specifications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: CM200S
• Amperage: 200 Amp

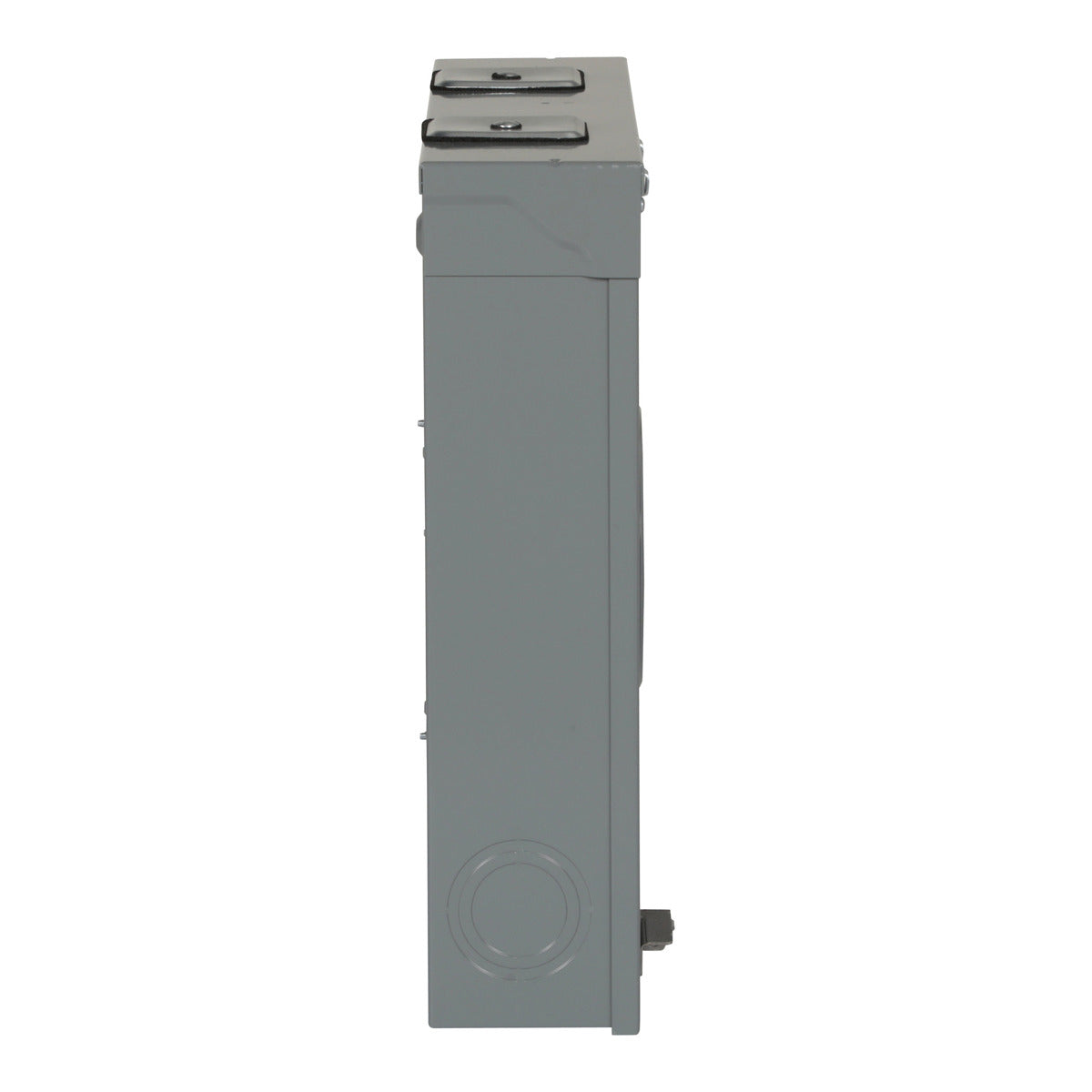

• Dimensions: 18.23 inches (Height) x 19.58 inches (Width) x 4.37 inches (Depth)
• Wire Size: AWG 4 to 250 kcmil for line side; AWG 8 to AWG 2/0 for service ground
• Country of Origin: Mexico
• Warranty: 18 months
