Product Description

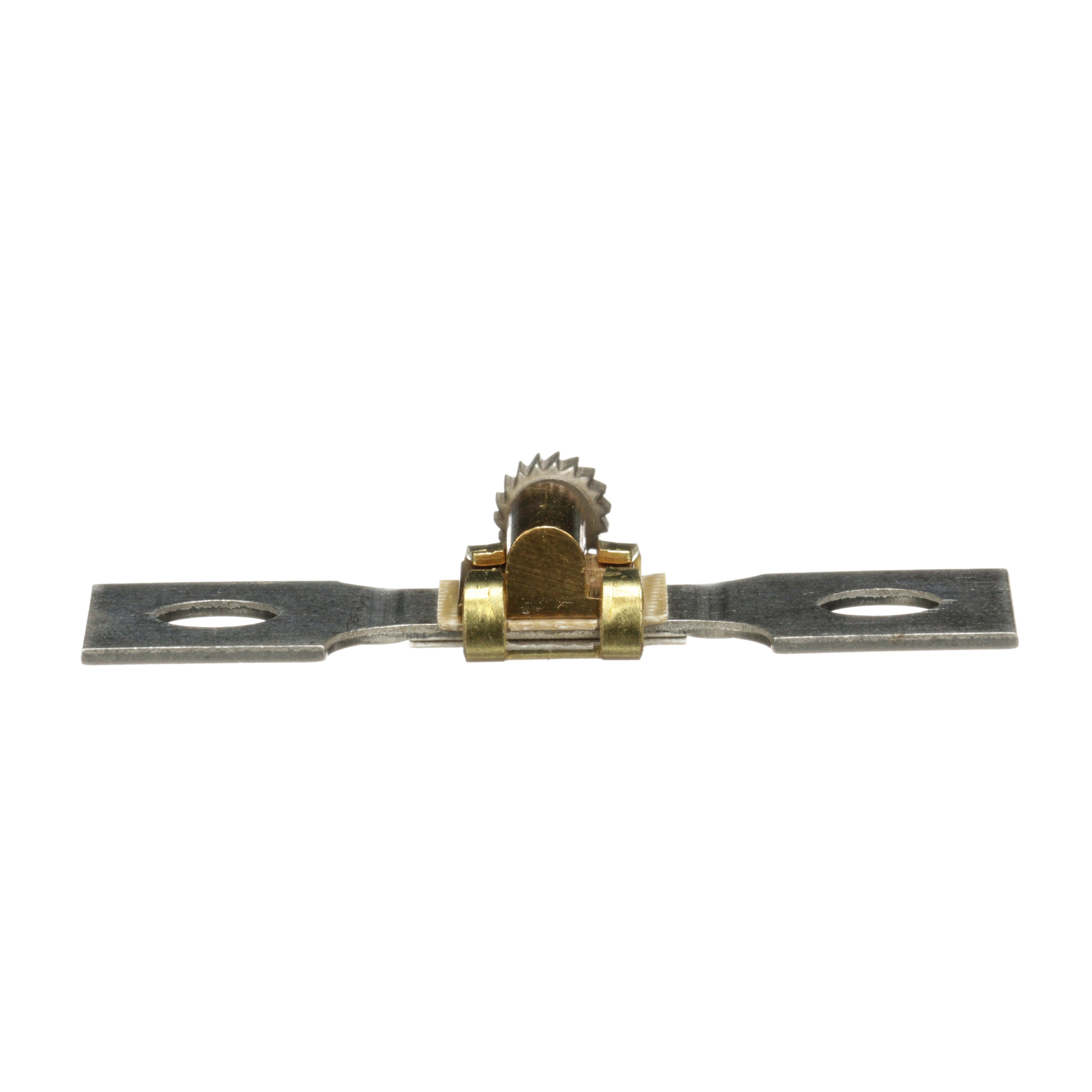

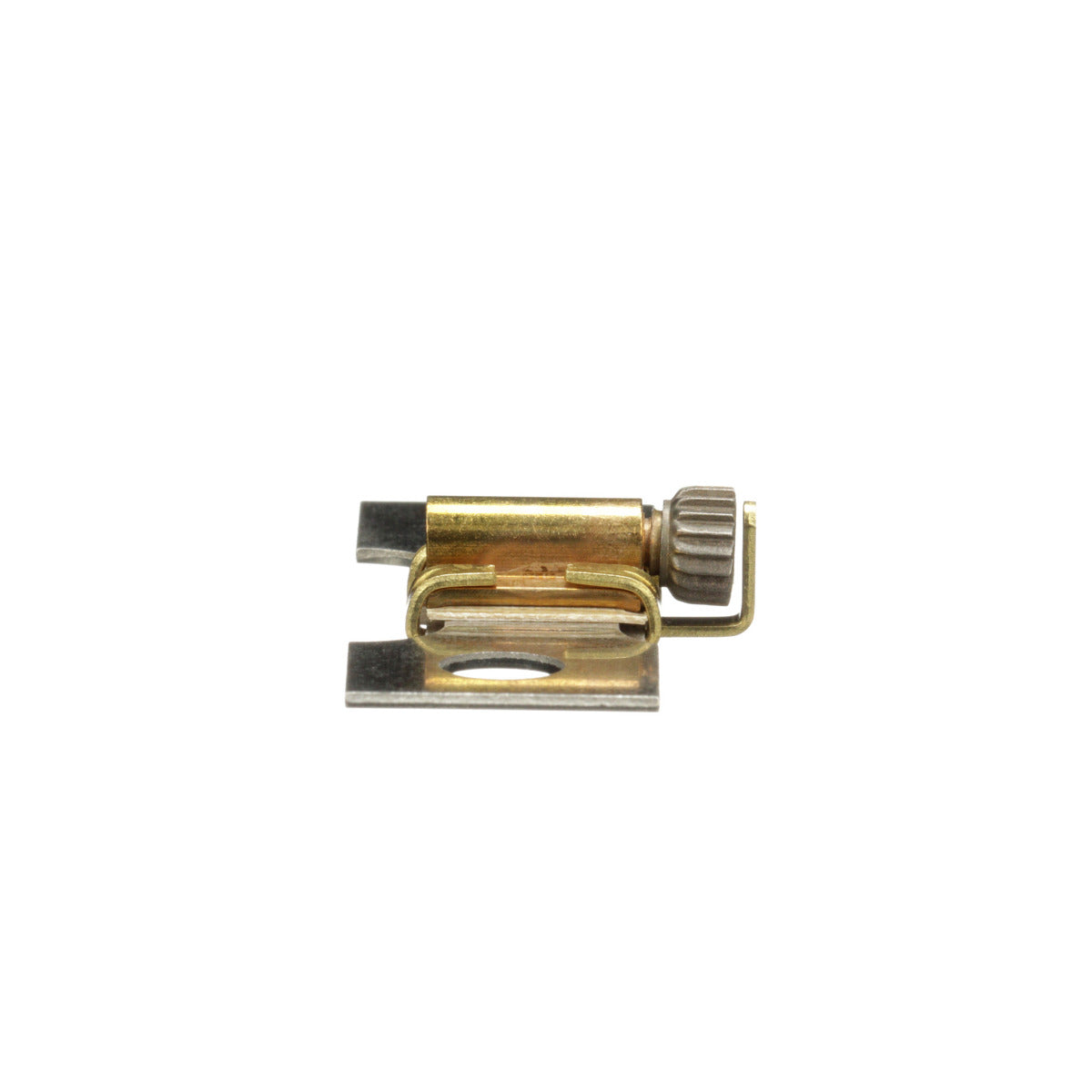

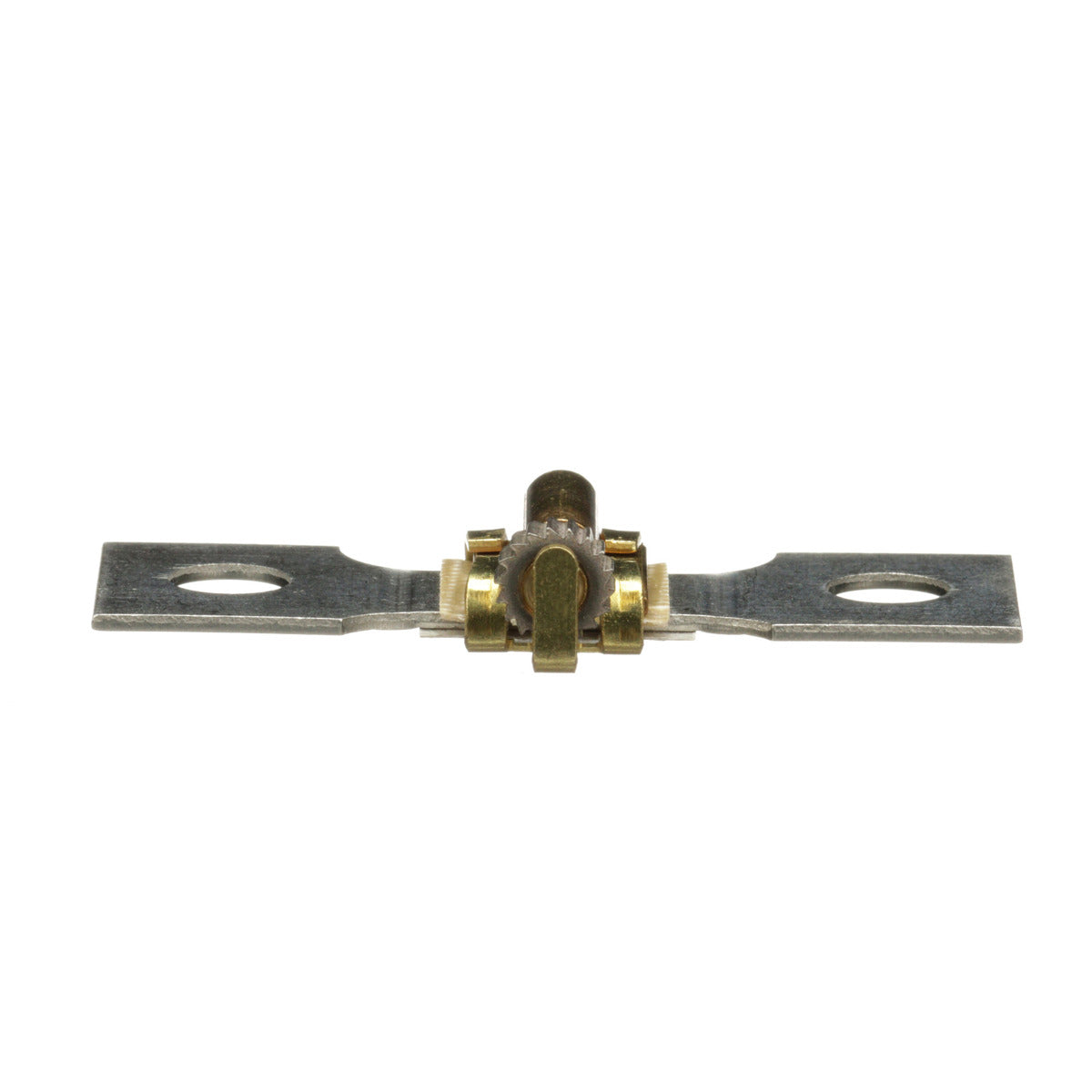

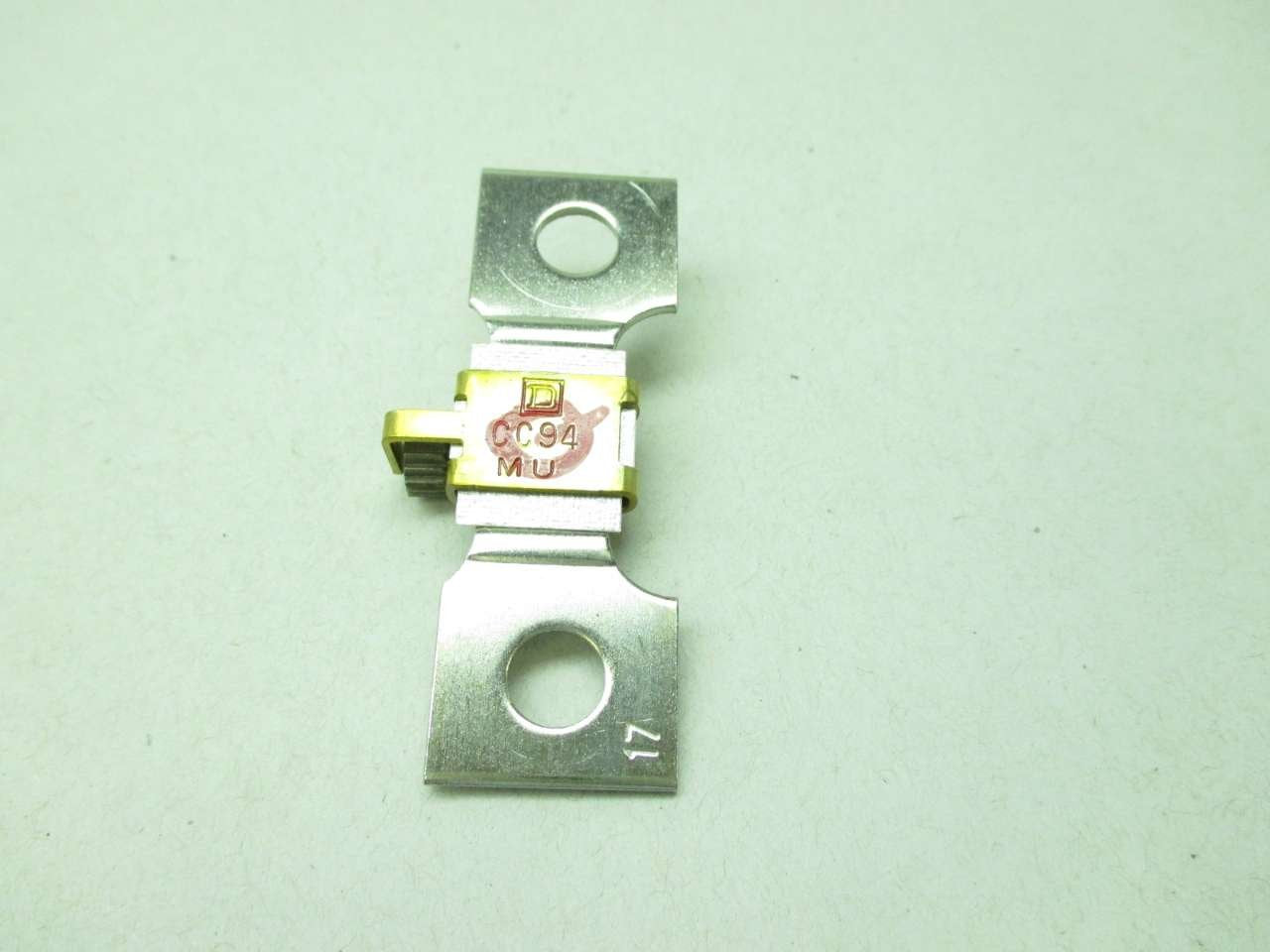

The Square D CC94.0 thermal unit protects motors, controllers, and branch circuit conductors from overheating due to prolonged motor overcurrents, including locked rotor currents. Class 20 thermal units respond to overload current conditions according to trip curves, tripping in 20 seconds or less. It has a one-piece construction.
- Available in three designs: standard trip (Class 20) slow trip (Class 30) quick trip (Class 10)
- Calibration is set for a range of motor full load currents
- Provides overload protection for most motors
Product Highlights
Protects motors from overheating with melting alloy thermal units. Cannot be reset until cooled. Repeated tripping does not affect the original calibration.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: CC94.0
-
Country of Origin: Mexico
Technical Specifications
-
Type: THERMAL - MELTING ALLOY THERMAL UNIT
-
Brand: Square D
-
Sub Brand: SCHNEIDER ELECTRIC
-
Trip Type: STANDARD TRIP
-
Reset Type: MANUAL
-
Applications: FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS
-
Catalog Number: CC94.0
-
Manufacturer: Schneider Electric
-
Country of Origin: Mexico
-
Made in USA: No
-
UPC: 785901588146
-
GTIN: 00785901588146
-
Full Load Amps: 57.4 to 71.4
-
Sensing Method: Melting Alloy
-
Motor Tripping Class: 20
-
Thermal Overload Type: melting alloy
-
FL Amp @ 3-Ph/ Size 3/ Standard Enclosure: 57.4 A
-
FL Amp @ 3-Ph/ Size 4/ Standard Enclosure: 61.8 A
-
FL Amp @ 3-Ph/ Size 3/ Open & Large Enclosure: 60.9
-
FL Amp @ 3-Ph/ Size 4/ Open & Large Enclosure: 71.4
-
Mounting: Plug-In
-
Used On: AC Magnetic Starter
-
Product Group: BISS
-
Model / MPN: CC94.0
-
IGCC: 5364
-
Series: CC
-
Amperage: 53.5-63.3
-
Voltage: 600V
-
Protection: Melting Alloy
-
For Use With: Thermal Overload Relays, Magnetic Motor Starters and Motor Controls
-
Standards: NEMA
-
Nema Size: 3, 4
-
Mpn: CC94.0
-
Gtin: 785901588146
-
Trip Range: 53.5-57.4
-
Manufacturer Part Number: CC94.0
