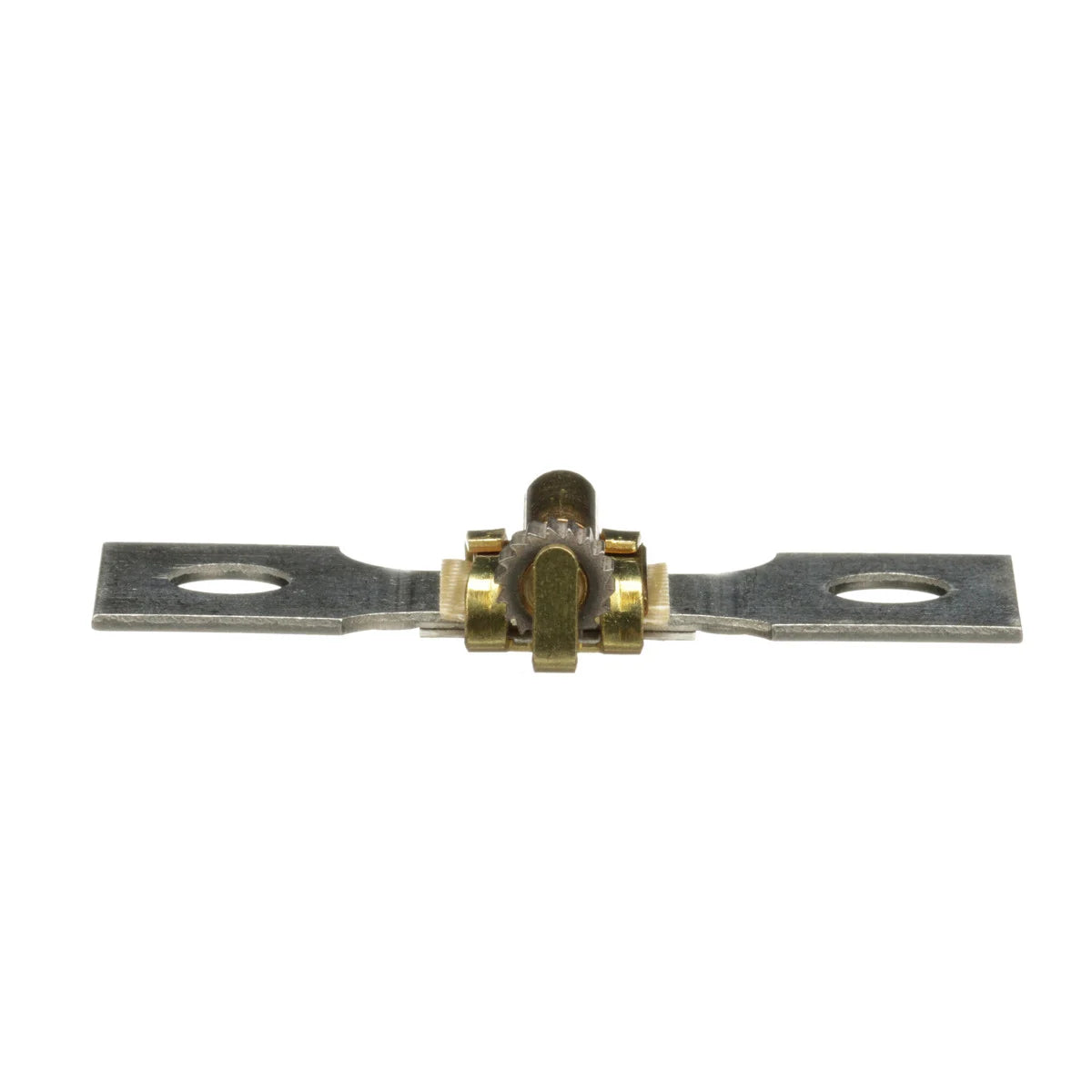

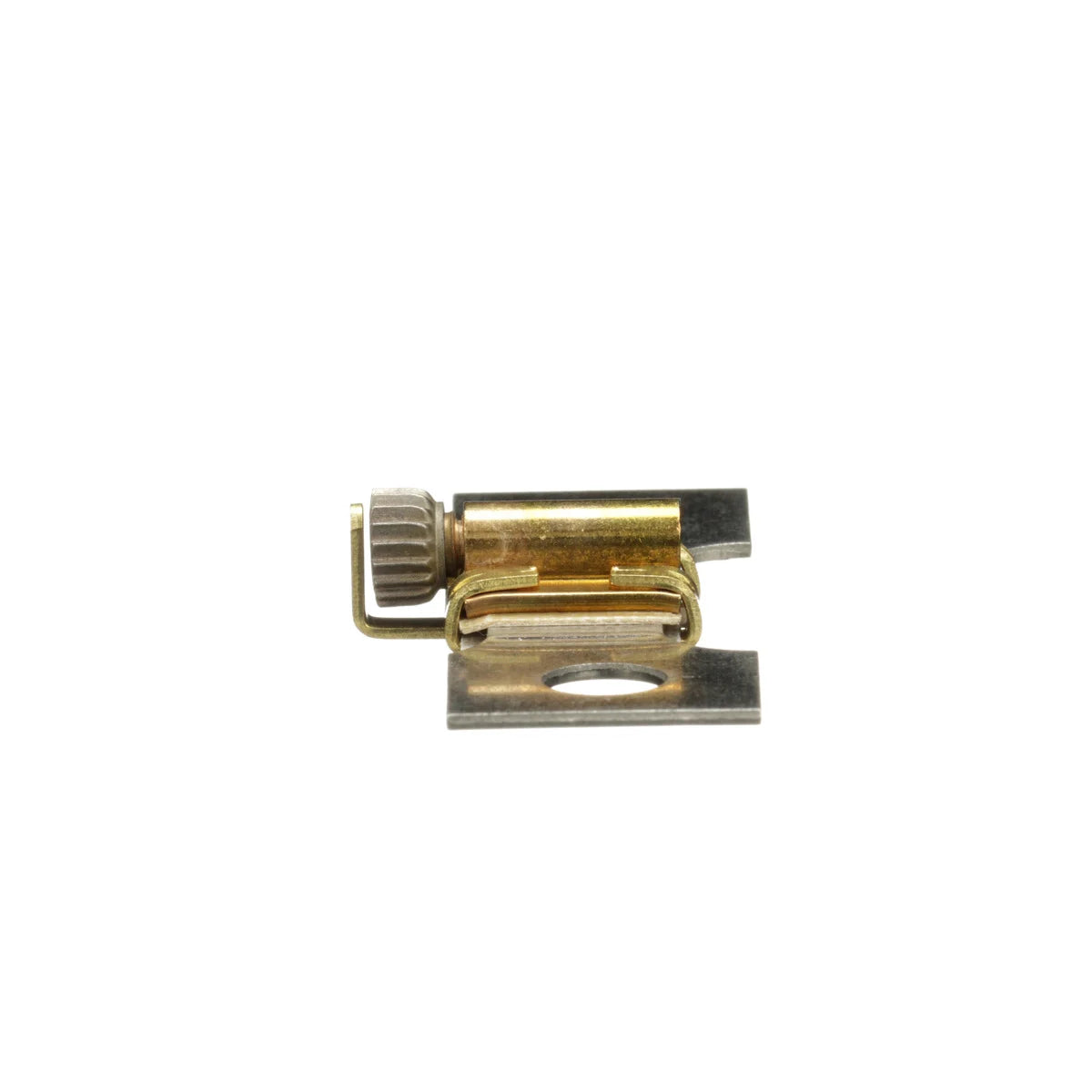

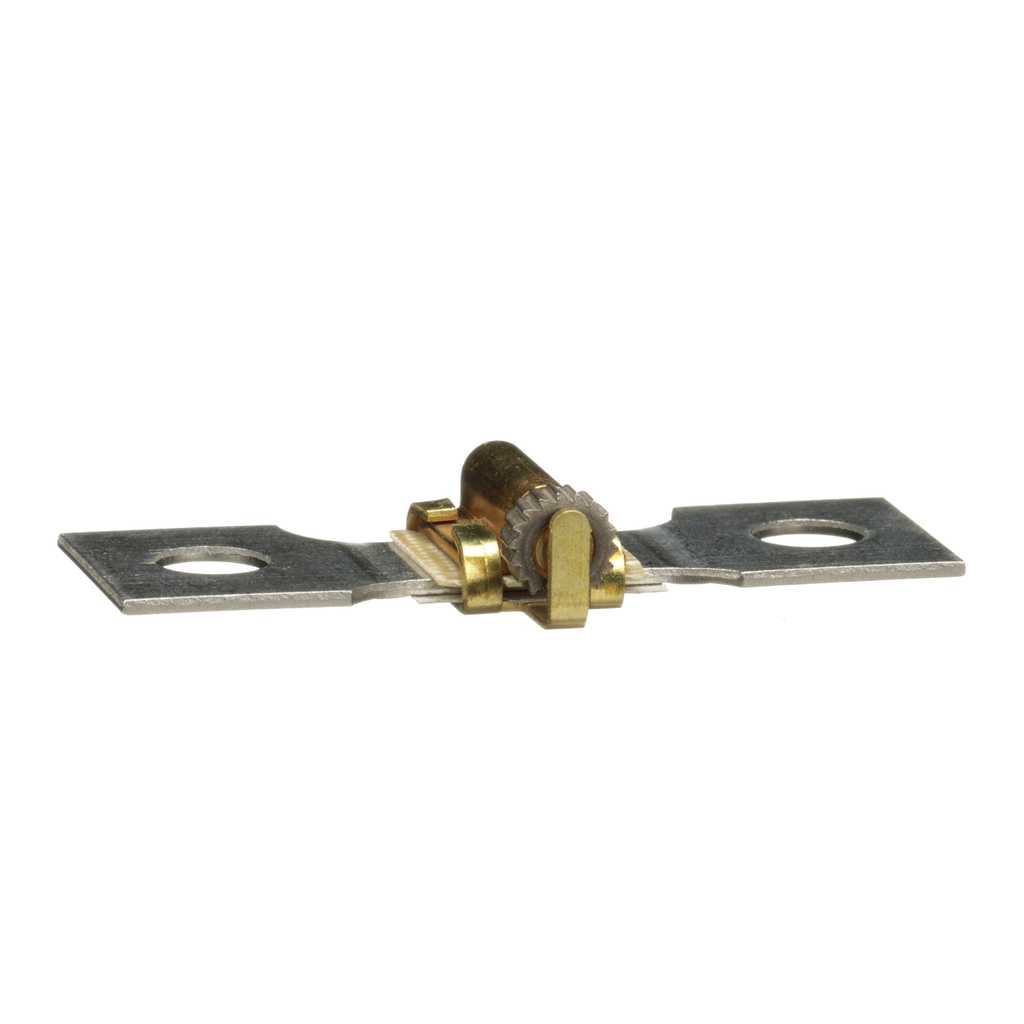

Square D CC87.7 Thermal Unit Class 20 Melting Alloy

Product Description

The Square D Thermal Unit with MPN CC87.7 protects motors and controllers against overheating caused by excessive currents, including locked rotor conditions. These units provide essential overload protection and are crucial for maintaining equipment efficiency and safety.

• Overload protection for various motors
• Designed for manual reset after cooling
• One-piece design ensures reliability

Product Highlights

This thermal unit features Class 20 characteristics, ensuring a trip response in twenty seconds or less during overload situations. Under overload conditions, the motor current heats a special solder, allowing a mechanism to disengage and open the motor's control circuit.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: CC87.7
• Trip Type: Standard Trip - Class 20
• Reset Type: Manual
• Warranty: 18 months
• Country of Origin: Mexico
• UPC: 78590158813
• GTIN: 00785901588139
