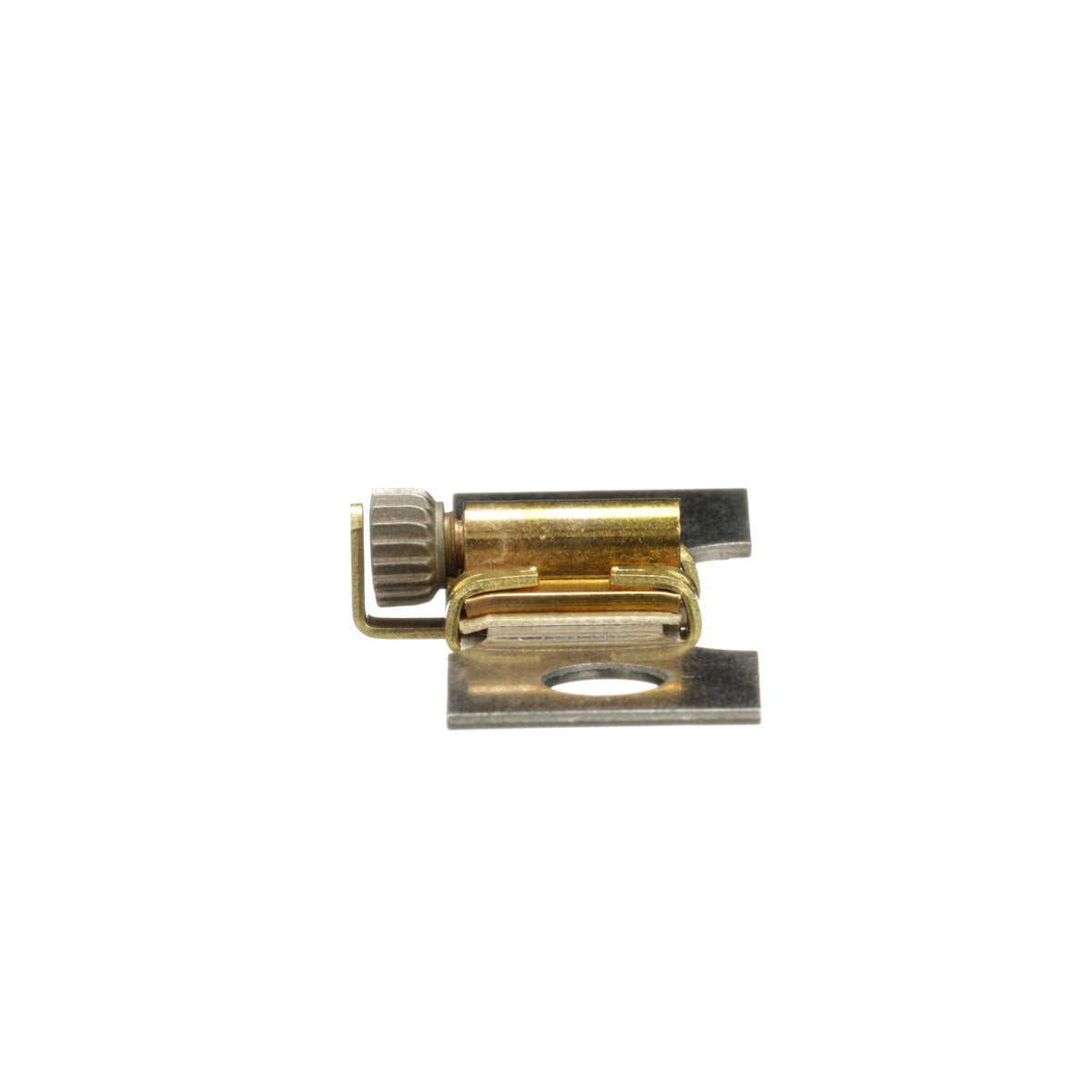

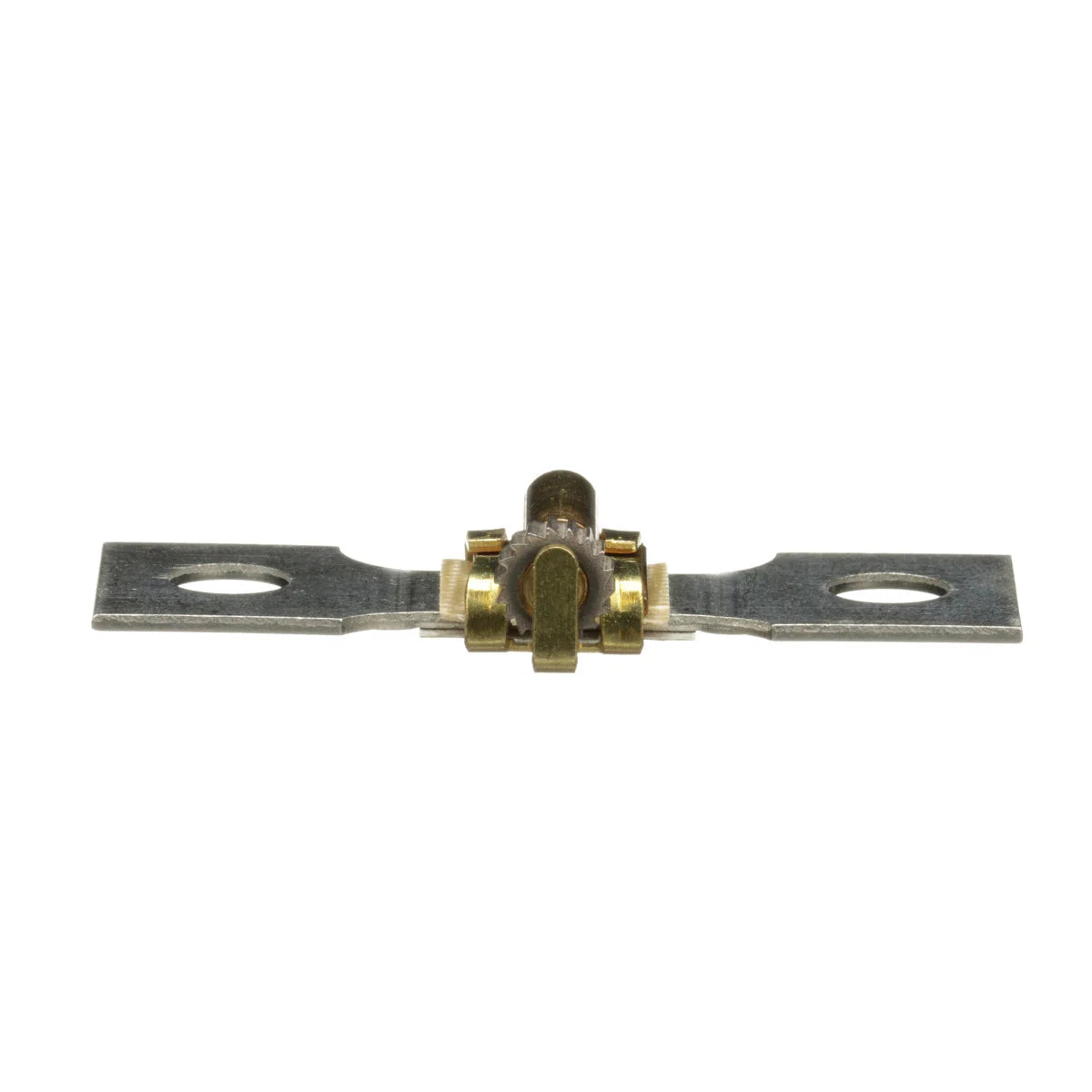

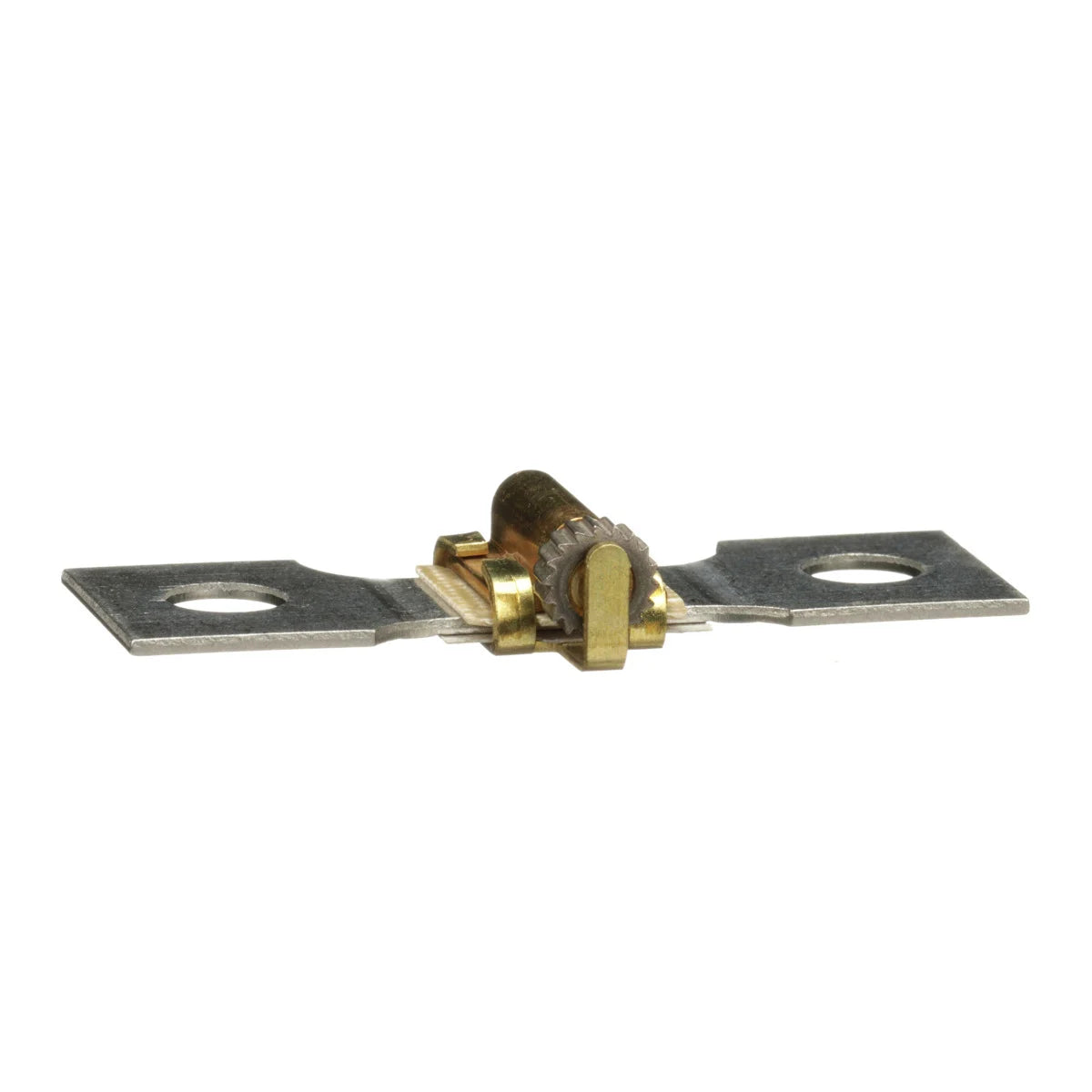

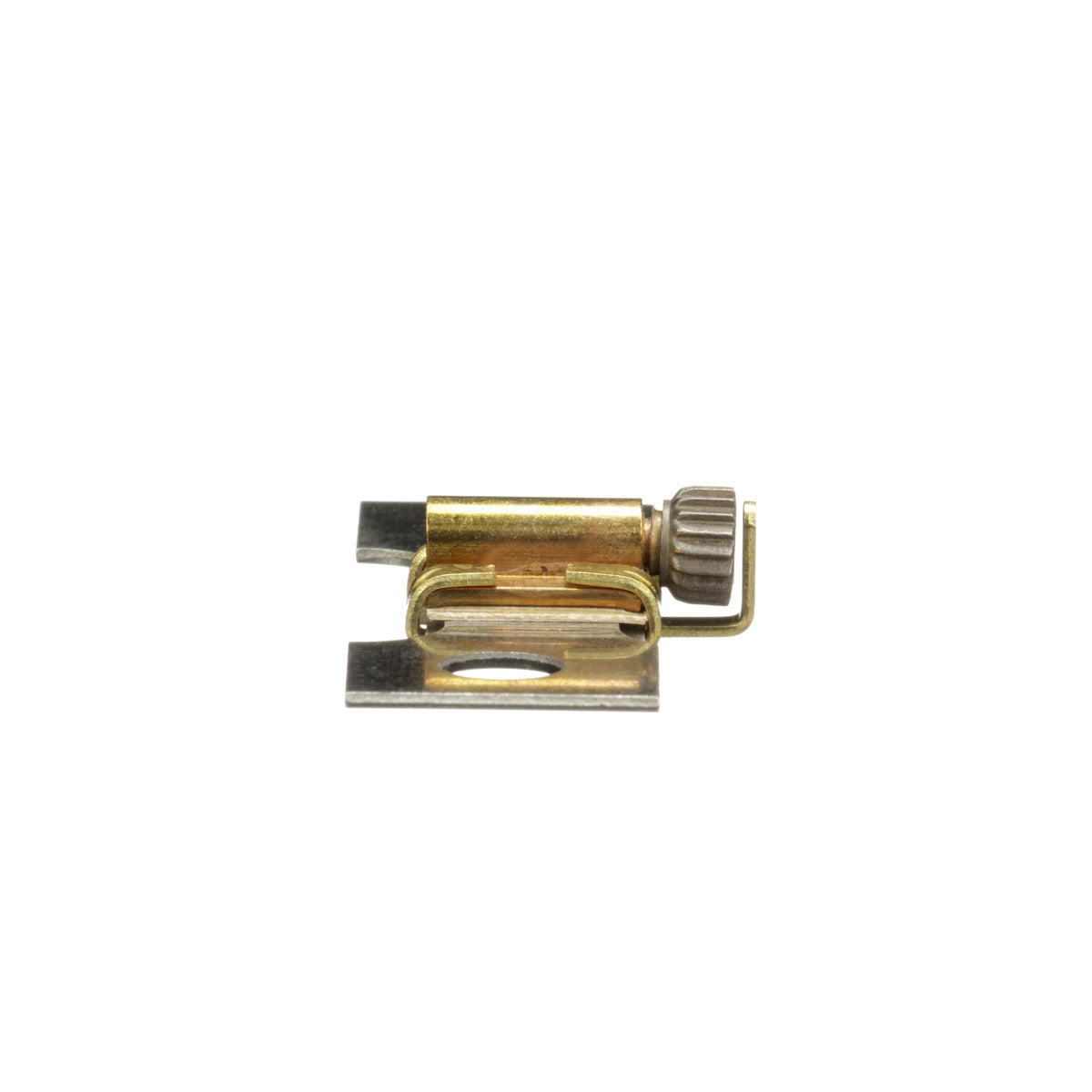

Square D CC64.3 Thermal Unit Power Class 20

Product Description

The Square D CC64.3 Thermal Unit is designed to safeguard motors and controllers from overheating caused by prolonged motor overcurrents, including locked rotor currents. This unit works alongside branch circuit fuses or circuit breakers to protect against high currents from short circuits. The Class 20 thermal units are engineered to trip under overload conditions within twenty seconds or less, ensuring rapid response to potential motor damage.

• Provides critical overload protection for motor applications.
• Features a one-piece construction for enhanced reliability.
• Calibration is adjustable for various full load currents.

Product Highlights

This thermal unit is essential for maintaining motor health in industrial applications, preventing damage and ensuring efficient operation.

Product Information

Standard Information

• Catalog Number: CC64.3
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Thermal - Melting Alloy Thermal Unit
• Brand: Square D
• Trip Type: Standard Trip - Class 20
• Reset Type: Manual
• Applications: For use in melting alloy thermal overload relays
• Warranty Length: Eighteen months
• Country of Origin: Mexico
