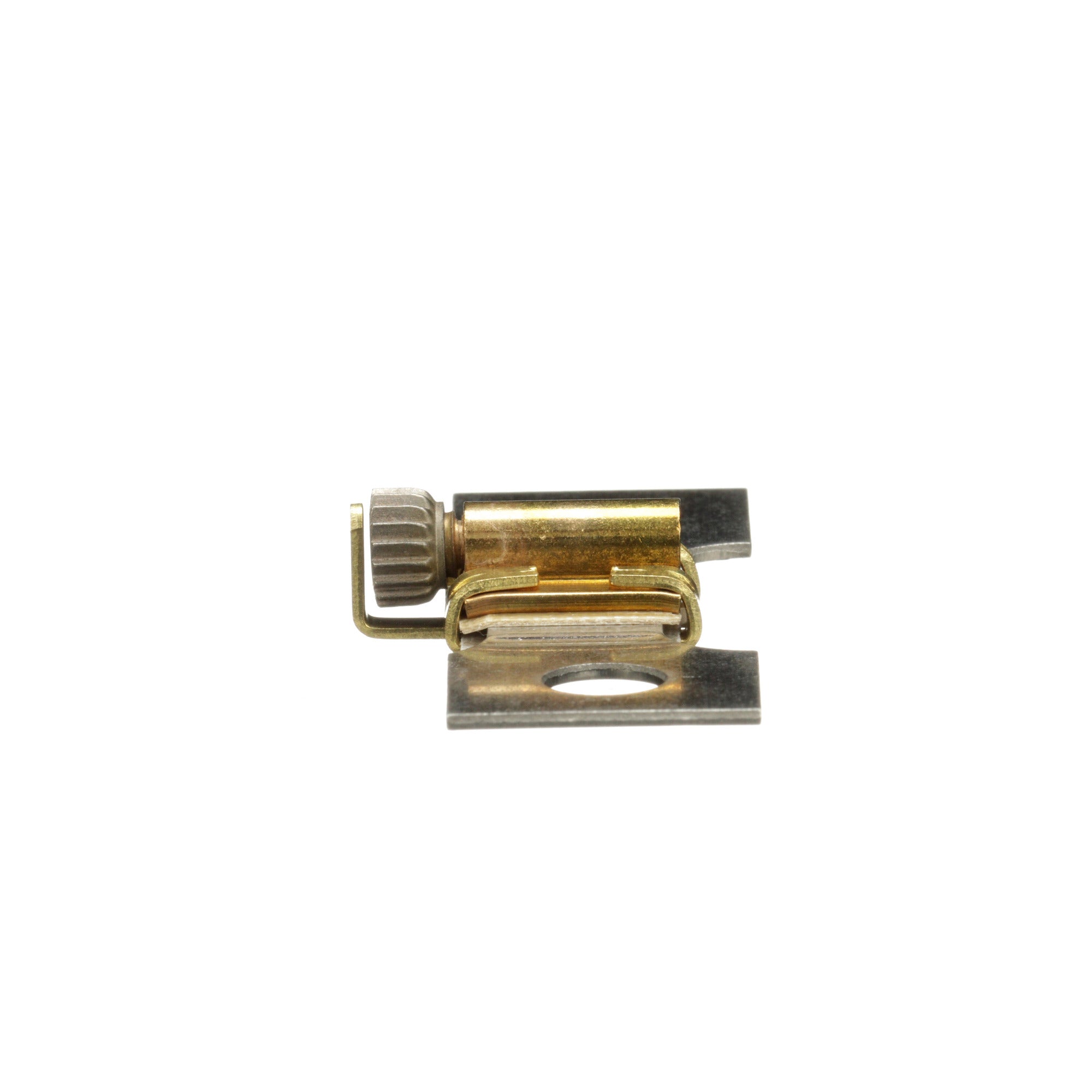

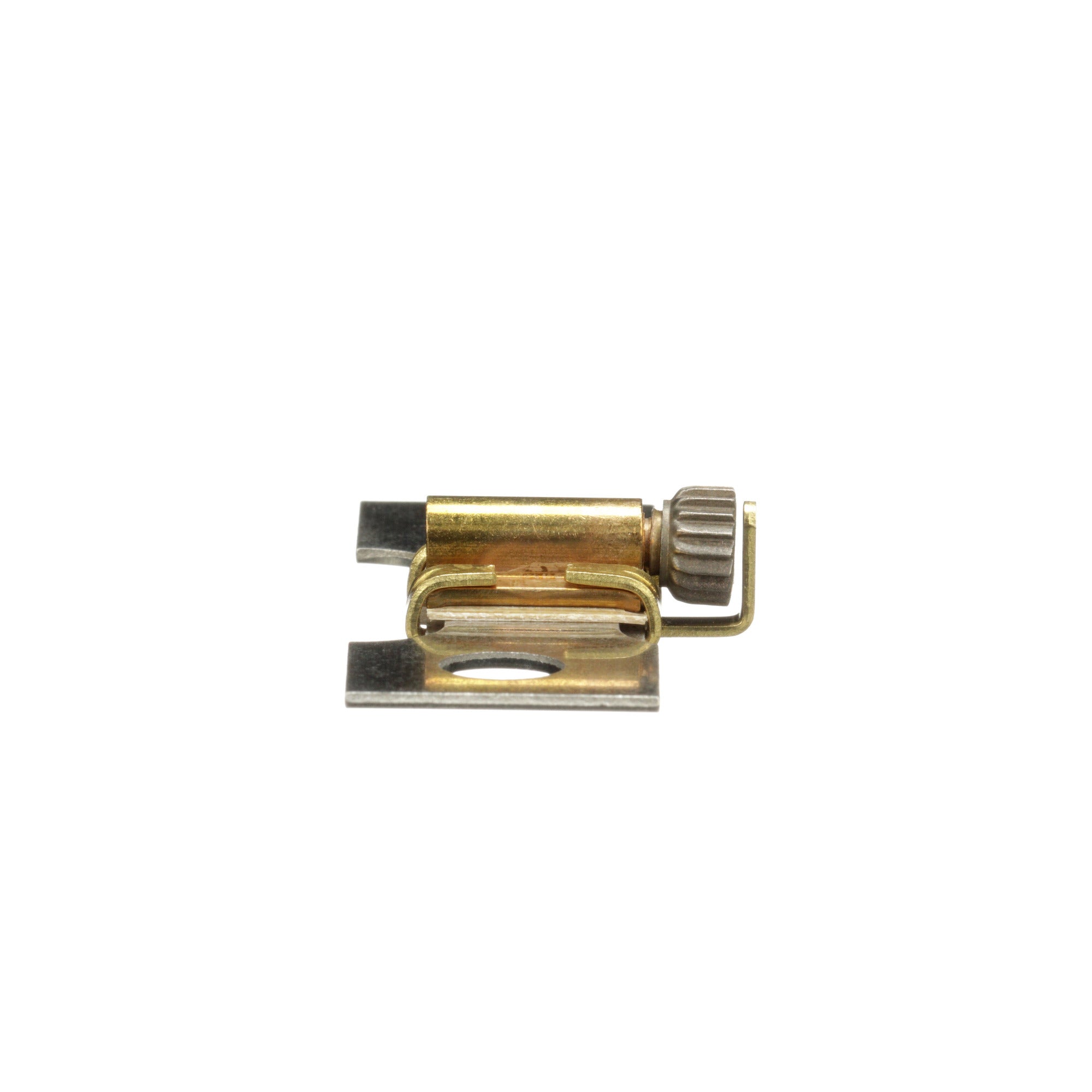

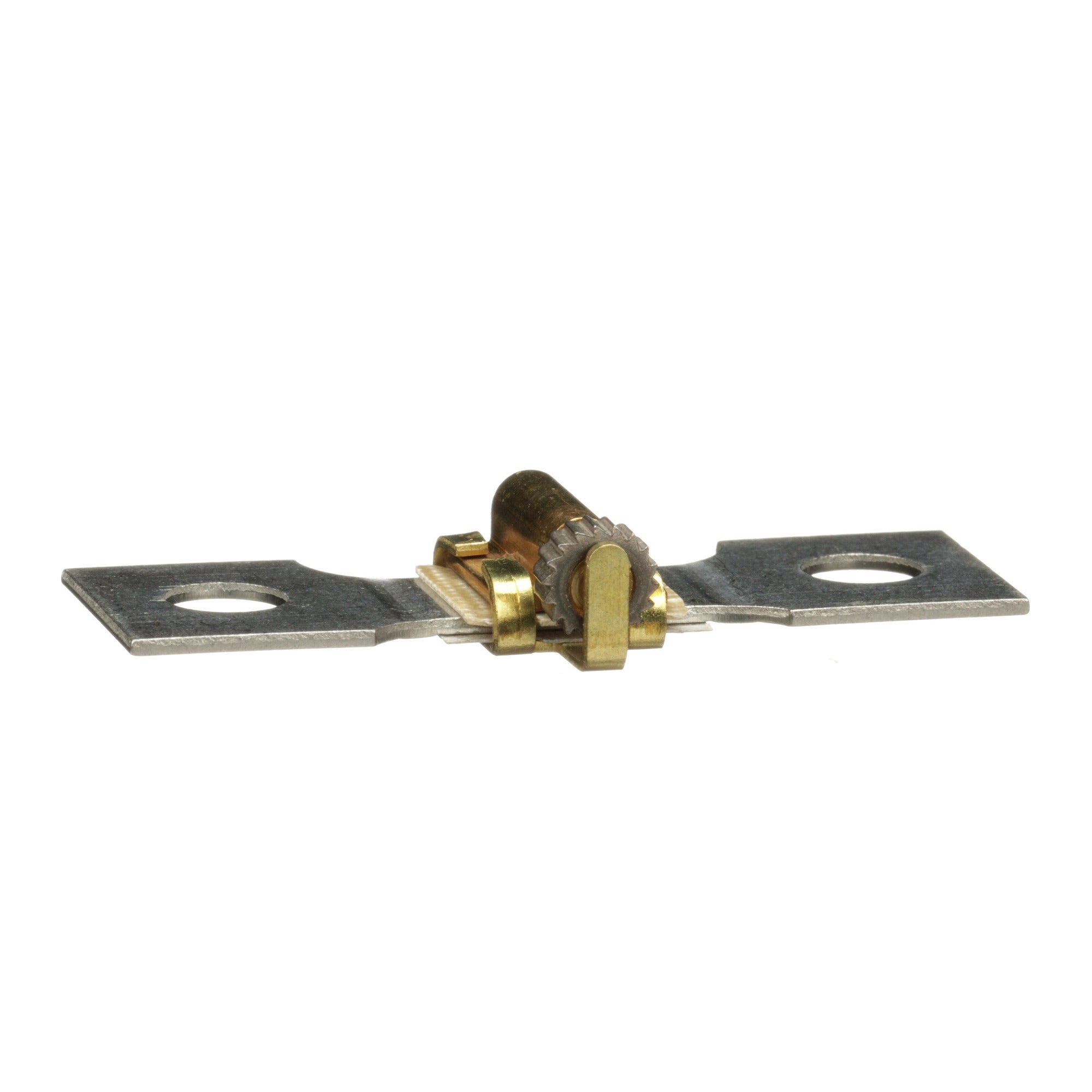

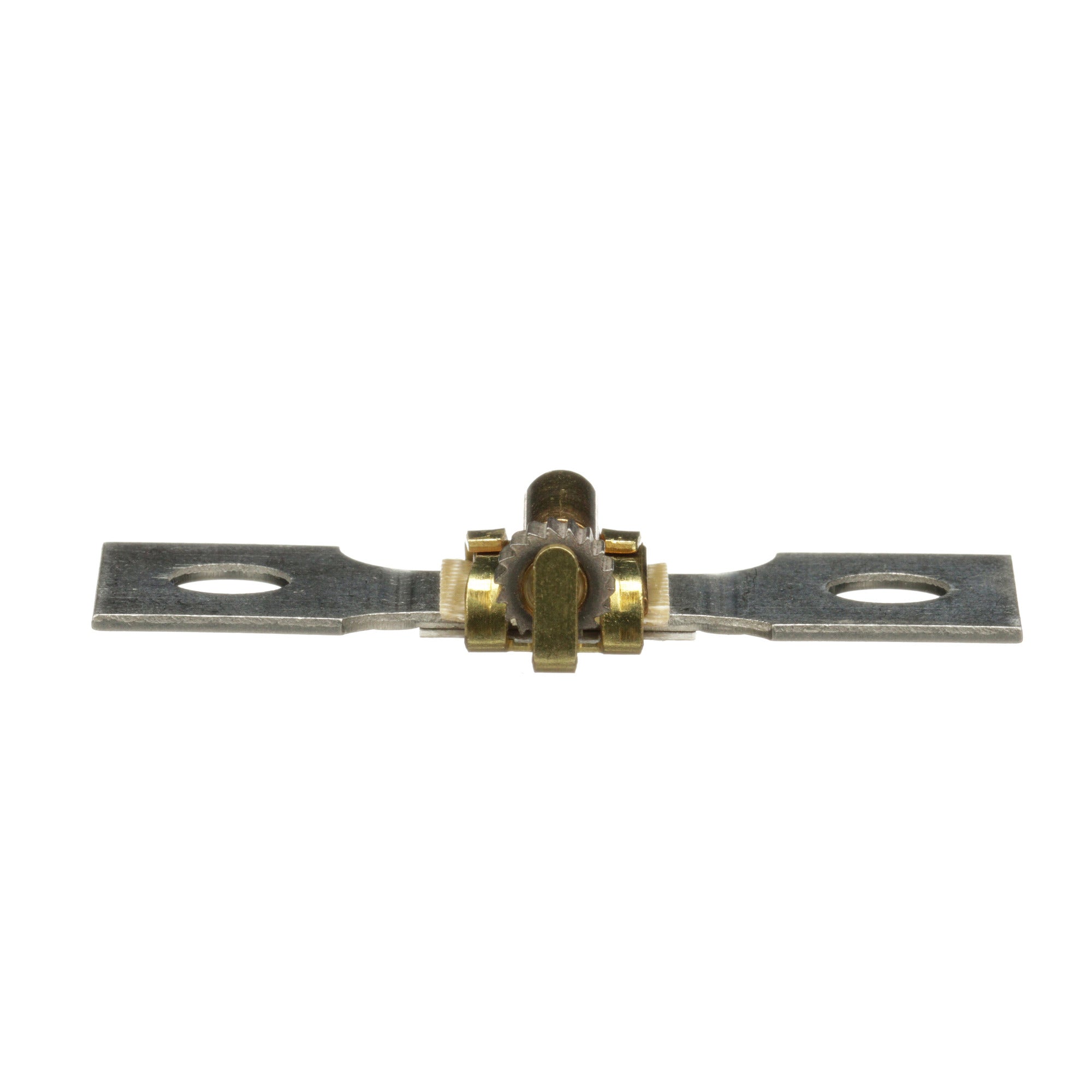

Square D CC180.0 Thermal Unit Type S Melting Alloy Class 20

Product Description

The Square D CC180.0 Thermal Unit offers protection for motors, controllers, and branch circuit conductors against excessive heating. This unit is suitable for prolonged motor overcurrents, including locked rotor currents. The branch circuit fuses or circuit breakers safeguard against higher currents from short circuits or grounds. Class 20 thermal units are designed to respond to overload conditions according to trip curves and will trip in 20 seconds or less. The unit features a one-piece construction, allowing the motor current to pass through a heater winding. Under overload, the heat melts a special solder, triggering a ratchet wheel to disengage and open the motor contacts.

• Calibration is set for various motor full load currents.
• Provides reliable overload protection for a wide range of motors.
• Designed with melting alloy thermal technology for efficient performance.

Product Highlights

This thermal unit is essential for ensuring the protection of motors and associated components while maintaining operational efficiency.

Product Information

Standard Information

• Catalog Number: CC180.0
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Thermal - Melting Alloy Thermal Unit
• Brand: Square D
• Trip Type: Standard Trip - Class 90
• Reset Type: Manual
• Applications: For use in melting alloy thermal overload relays
• Warranty Length: 18 months
• Country of Origin: Mexico
• Voltage Rating: 600 VAC
