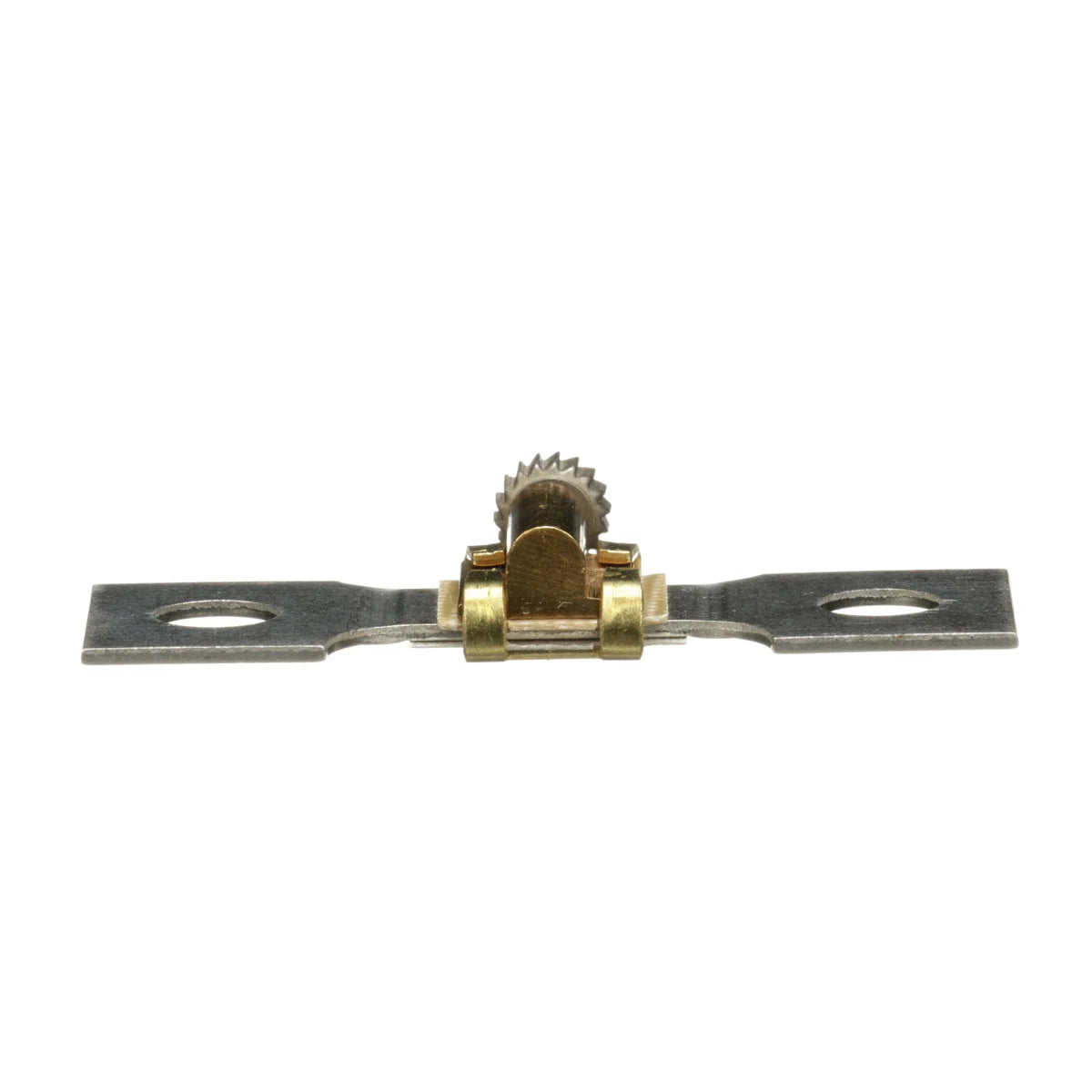

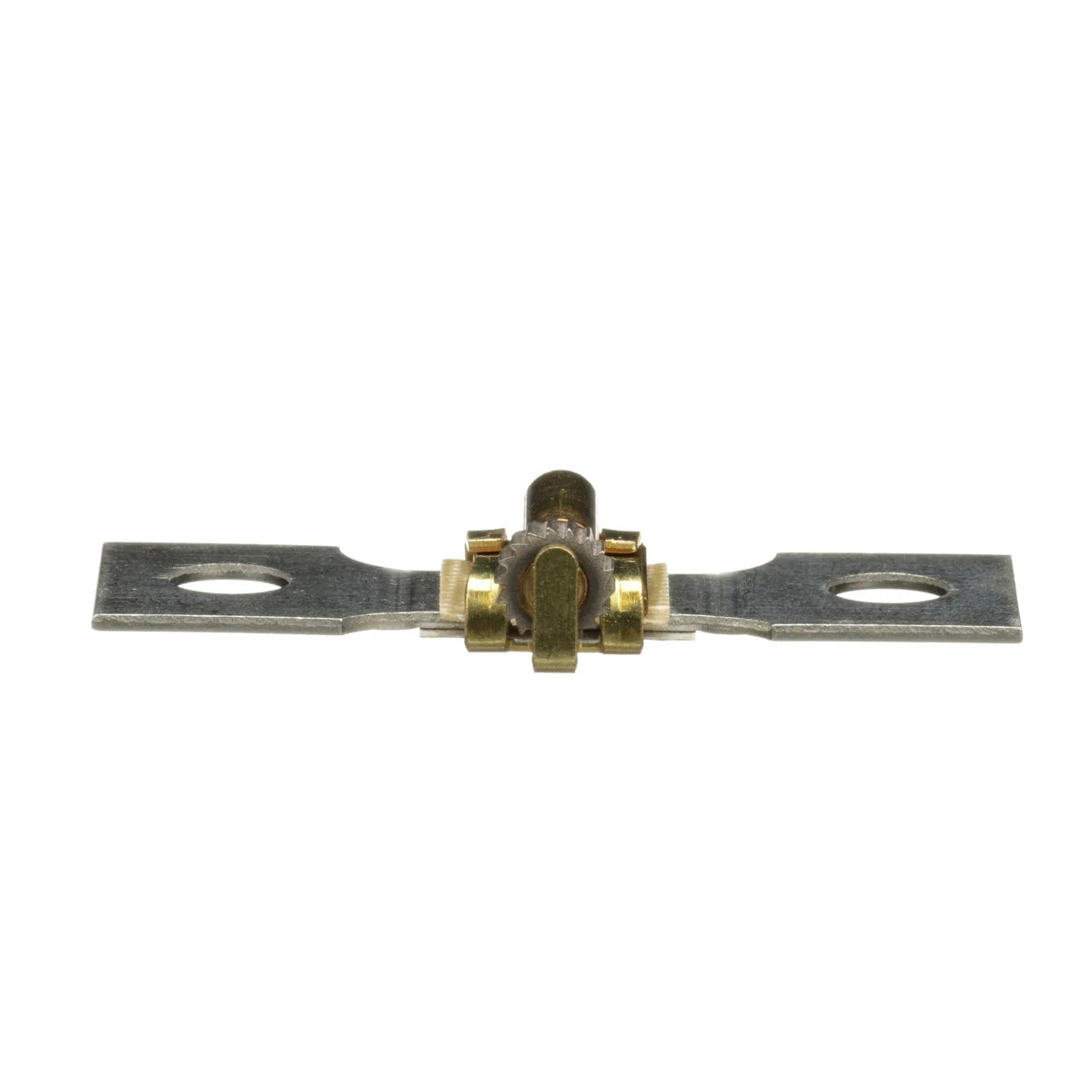

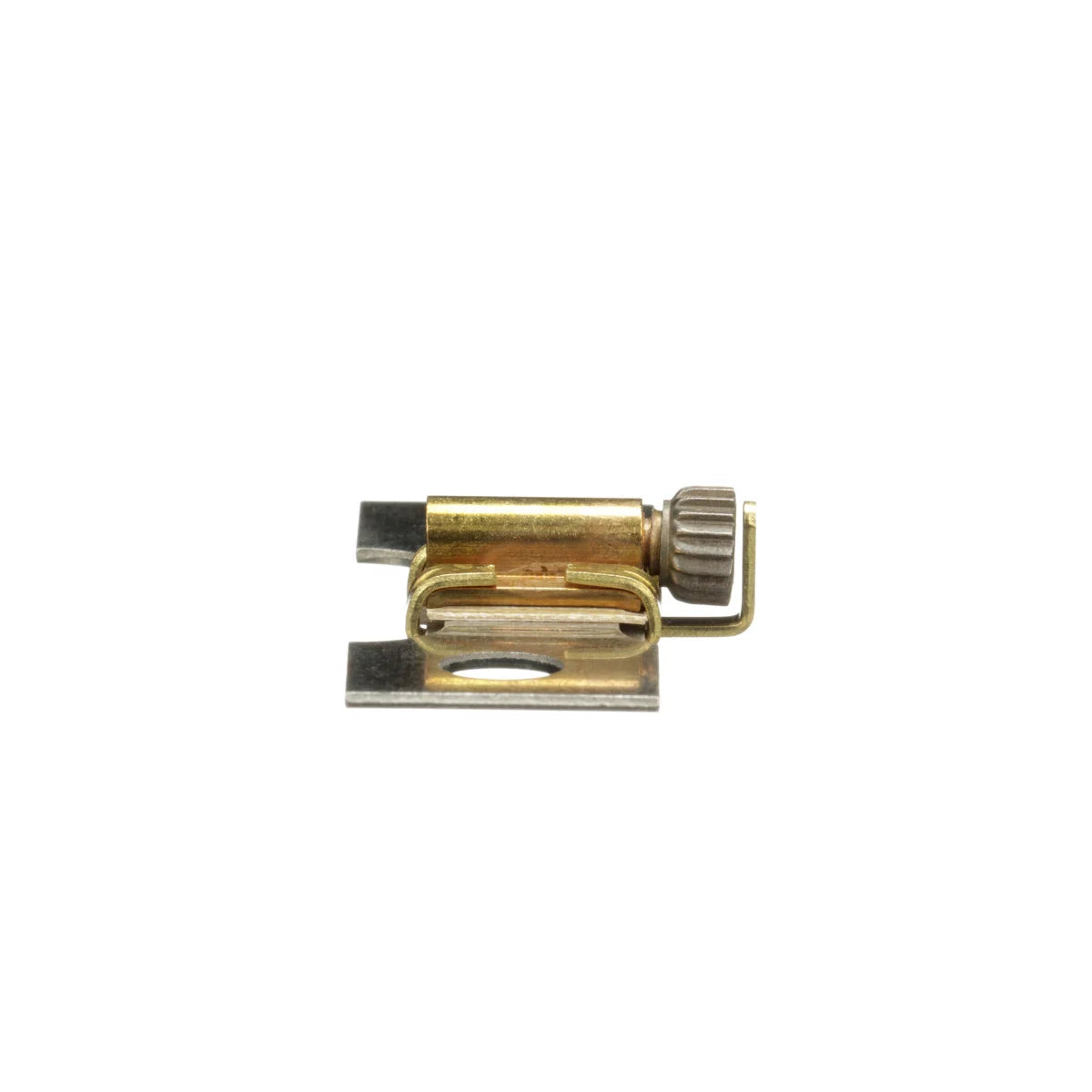

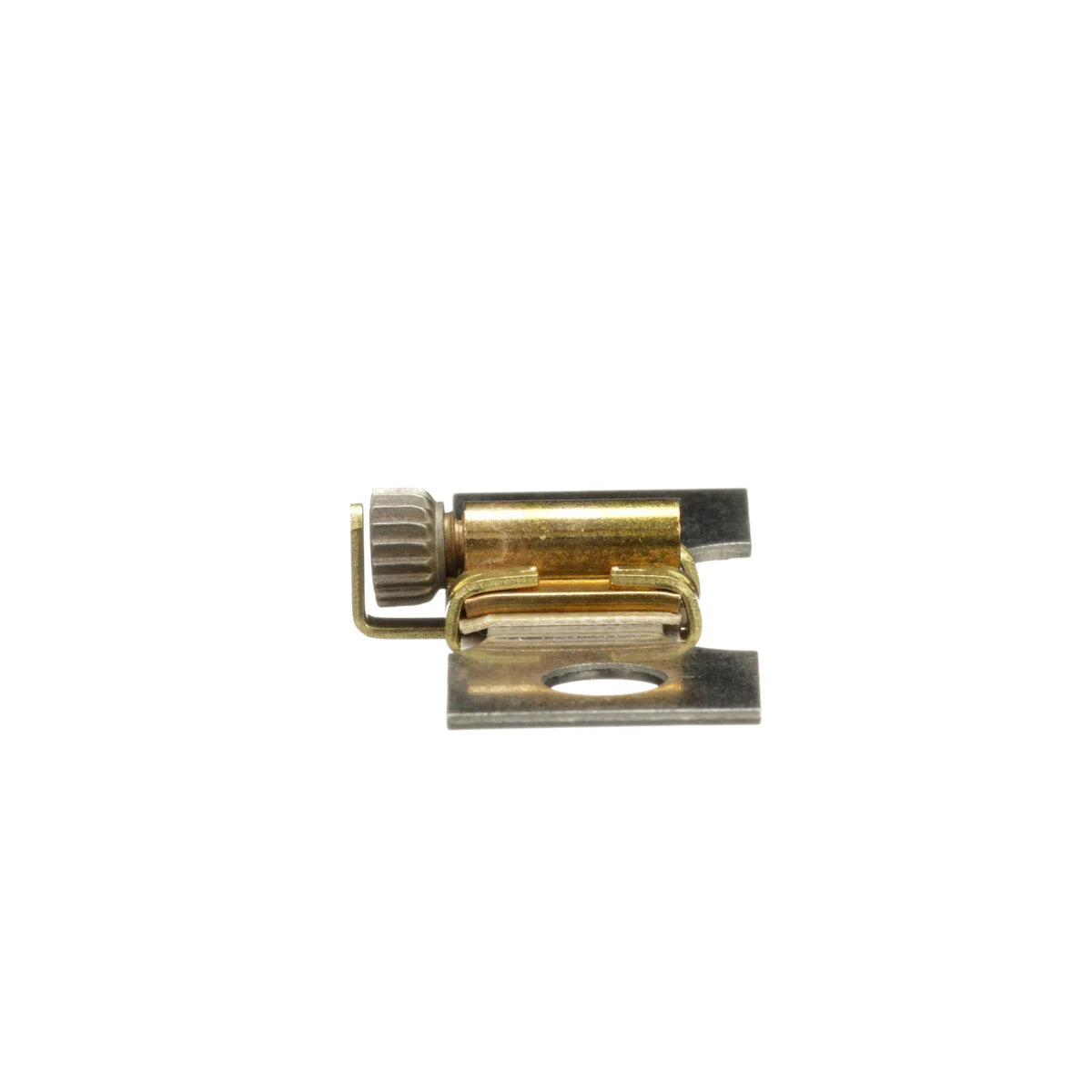

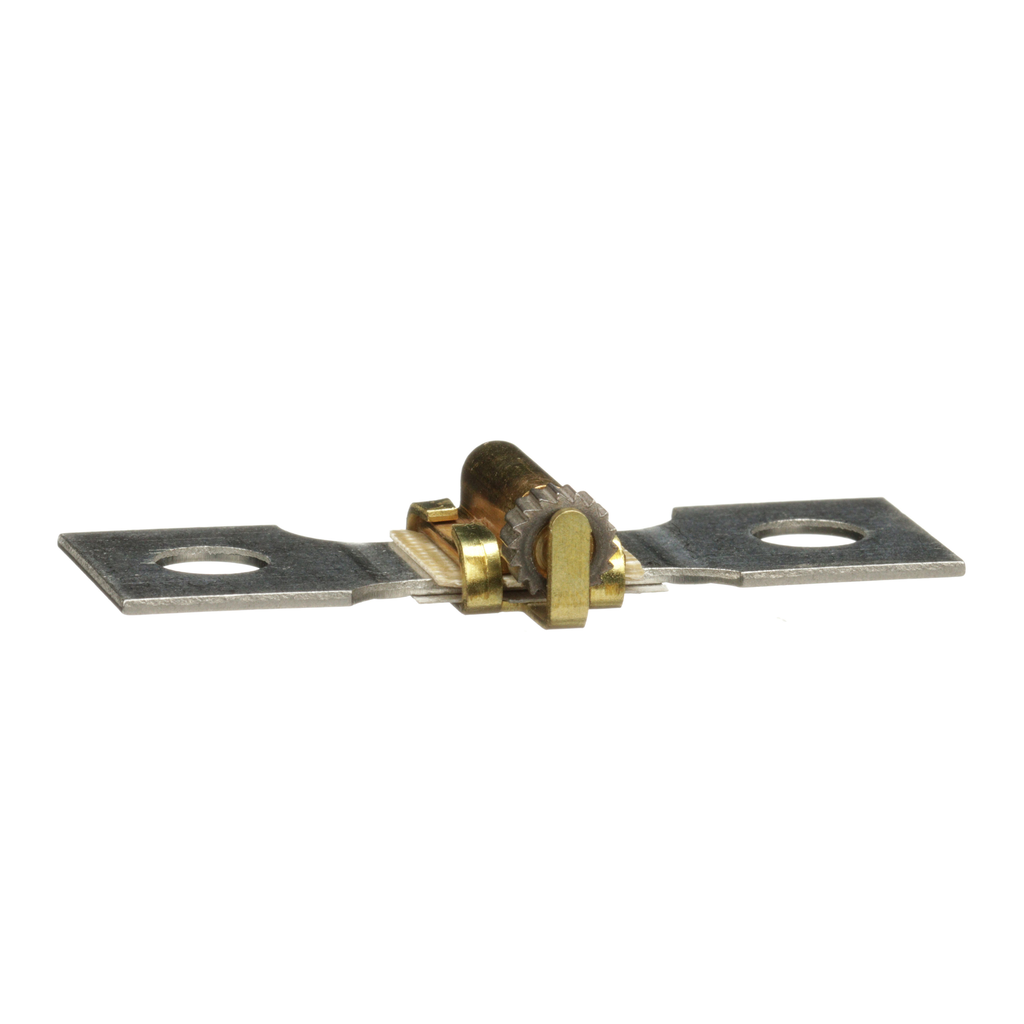

Square D CC132.0 Square D 170 to 181 Amp Thermal Unit

Product Description

The Square D CC132.0 thermal unit is designed to protect motors, controllers, and branch circuit conductors from excessive heating caused by prolonged motor overcurrents, including locked rotor currents. It ensures the safeguard of the motor and other branch circuit components from higher currents due to short circuits or grounds. This device responds to overload current conditions as defined by trip curves, tripping in 20 seconds or less under overload.

• Class 20 thermal unit for precise overload protection
• Single-piece construction for durability
• Manual reset type for ease of operation

Product Highlights

The CC132.0 thermal unit is essential in melting alloy thermal overload relays. It features a built-in heater winding that reacts to excessive heat, melting solder to activate the trip mechanism, ensuring safe operation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: CC132.0
• Type: Thermal - Melting Alloy Thermal Unit
• Trip Type: Standard Trip - Class 86
• Reset Type: Manual
• Country of Origin: Mexico
• Warranty Length: 18 months
• GTIN: 00785901588184
• UPC: 785901588184
