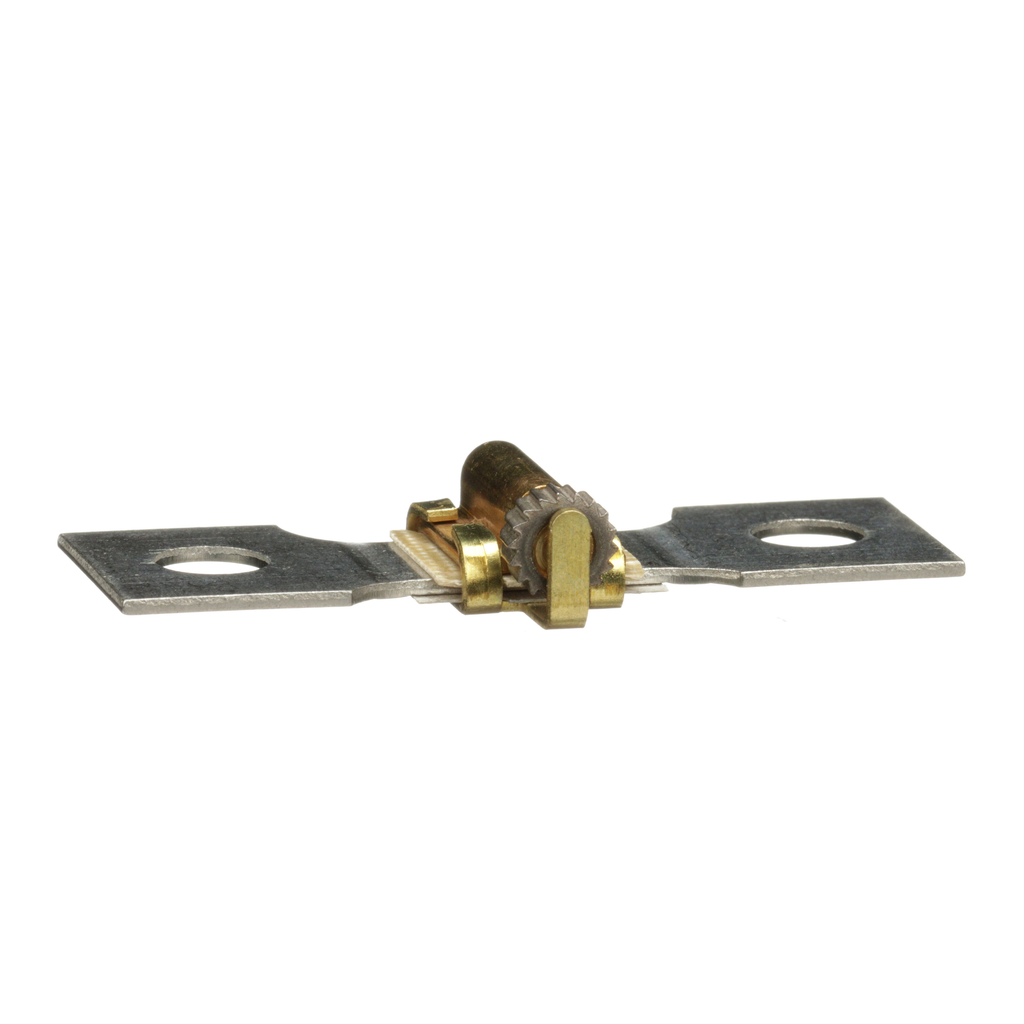

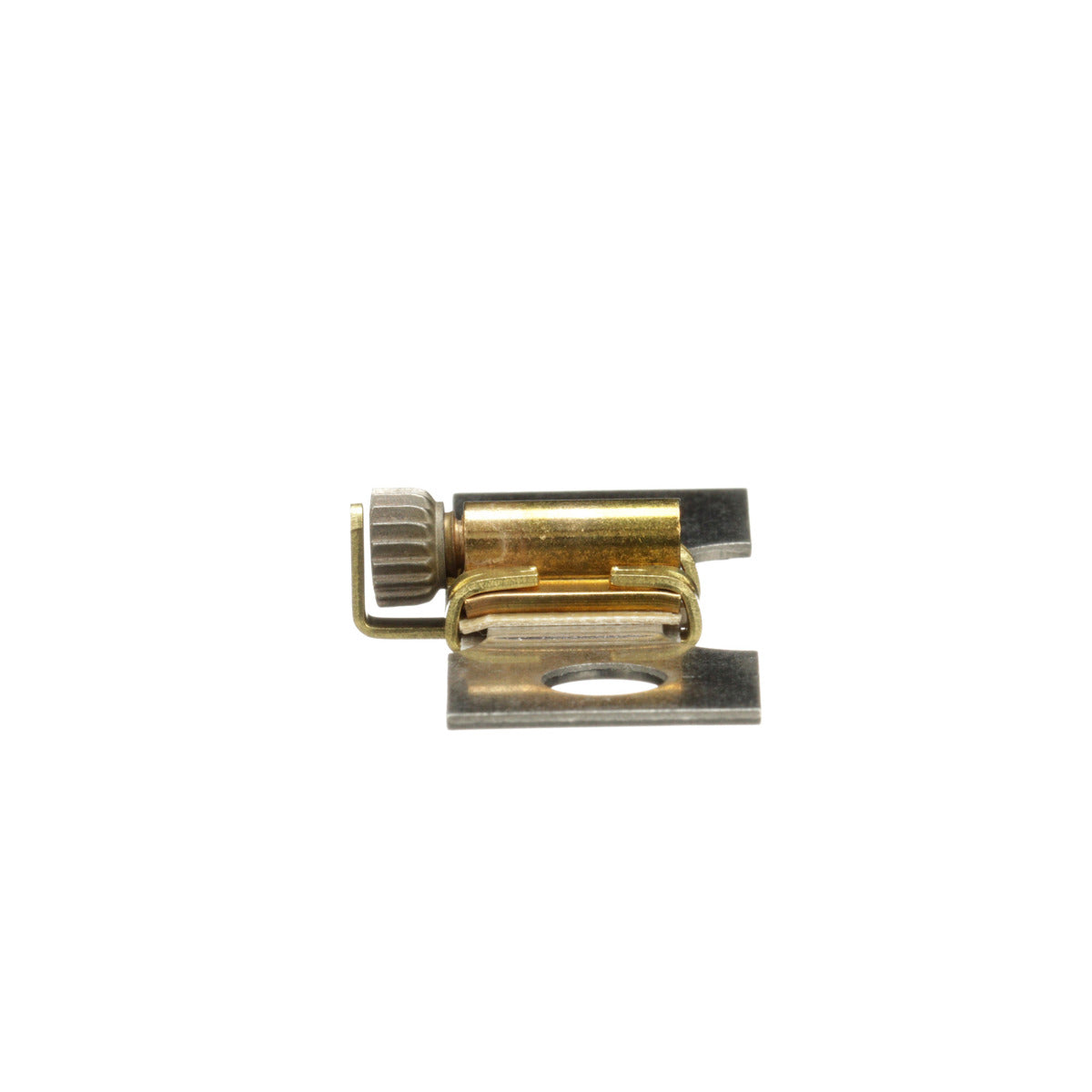

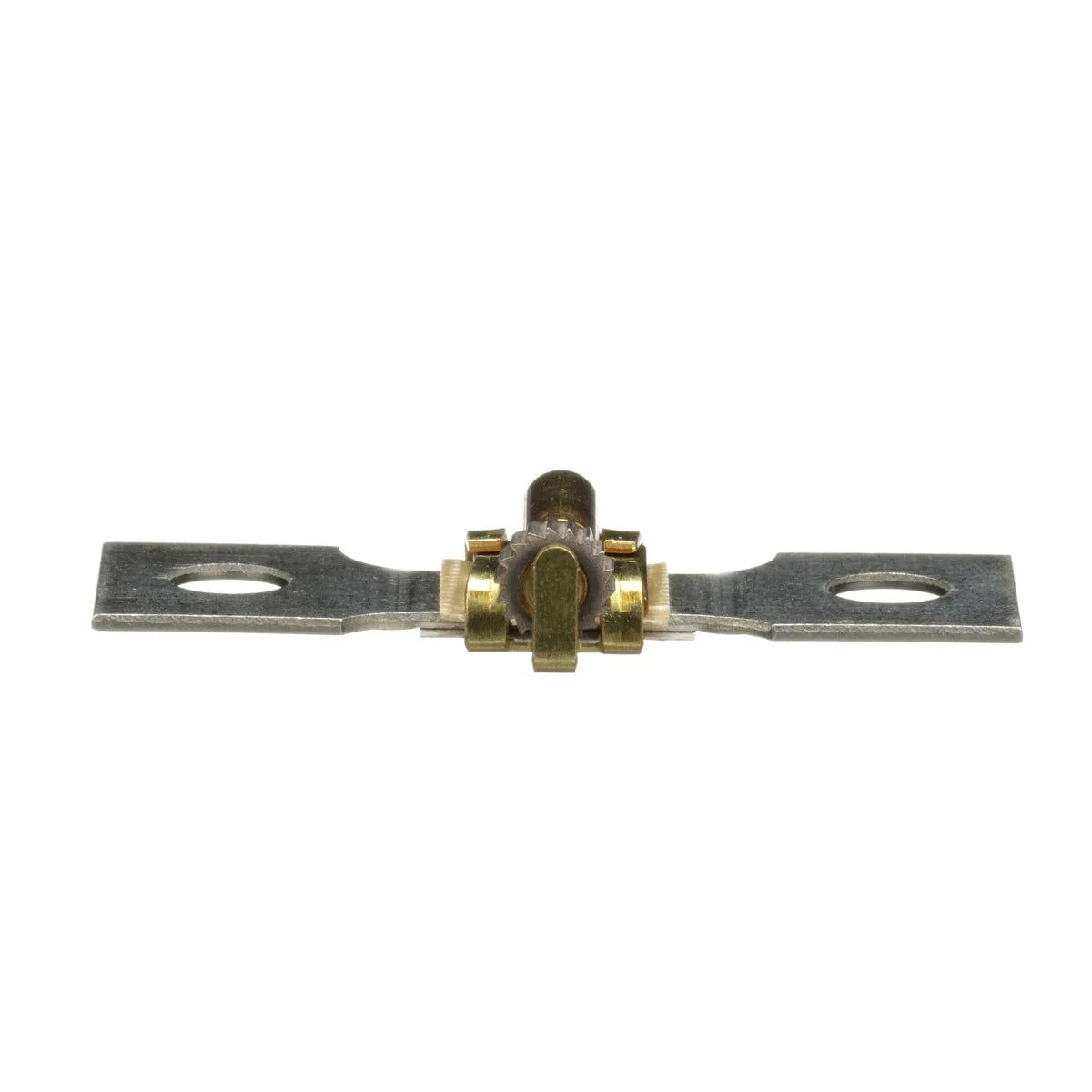

Square D CC103.0 Thermal Unit

Product Description

The Square D CC103.0 Thermal Unit provides essential overload protection for motors and controllers. It is designed to prevent excessive heating caused by prolonged motor over-currents, including locked rotor currents. The unit features a one-piece construction that allows motor current to flow through a heater winding. When an overload occurs, heat causes a solder to melt, enabling a ratchet wheel to rotate and open the control circuit, thus protecting the motor.

• Designed for Class 20 overload conditions
• Responds in 20 seconds or less to trip on overload
• One-piece construction for durability

Product Highlights

This thermal unit is critical for the safety and efficiency of electrical systems, ensuring that components remain protected during overload events.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: CC103.0
• Type: Thermal - Melting Alloy Thermal Unit
• Trip Type: Standard Trip – Class 20
• Reset Type: Manual
• Applications: For use in melting alloy thermal overload relays
• Warranty Length: Eighteen months
• Country of Origin: Mexico
• UPC: 785901588153
