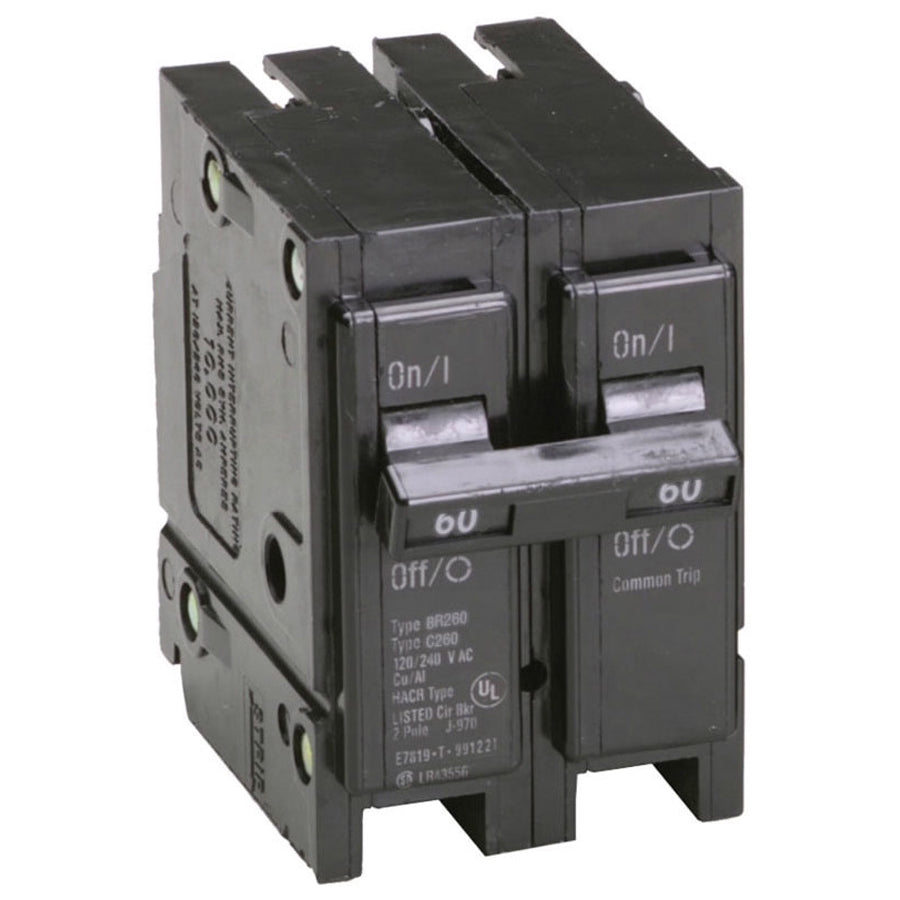

Square D BR260 2-pole Circuit Breaker 60A 120/240V

Product Description

The SQUARE D BR260 is a 2-pole, plug-on circuit breaker rated for 60 amps at 120/240 volts AC with a 10 kiloamp interrupting rating. It uses a common-trip mechanism, meaning both poles open simultaneously on a fault, which is required for double-pole branch circuit protection. This breaker is designed for installation in BR Series load centers and is a direct plug-on mount — no tools required for the breaker-to-bus connection. Licensed electricians handle installation as part of panel service or branch circuit work. The BR260 carries UL 489 approval, confirming it meets the standard for molded-case circuit breakers used in branch circuit applications.

This breaker is suited for residential and light commercial electrical panels where a 60-amp double-pole branch circuit is required. Common applications include sub-panel feeds, electric water heaters, HVAC disconnect circuits, electric dryers, and similar 240-volt loads. It accepts copper or aluminum conductors ranging from 8 AWG to 1/0 AWG, giving installers flexibility when working with existing wiring or pulling new wire for higher-demand circuits.

Key Features

• 60-amp, 2-pole common-trip design opens both poles simultaneously on fault or overload
• Plug-on mounting for fast, tool-free installation into compatible BR Series load centers
• Rated for 10 kiloamp interrupting capacity at 120/240 volts AC
• Accepts 8 AWG to 1/0 AWG copper or aluminum conductors
• UL 489 listed for use in branch circuit applications

Compatibility

Designed for use with BR Series load centers. Verify panel bus compatibility before installation.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the panel at the utility disconnect and verify absence of voltage with a calibrated meter before working inside a load center. Confirm the panel bus accepts plug-on BR Series breakers and that the new circuit conductor gauge matches the 60-amp rating. Do not attempt to field-modify the breaker or its trip mechanism.

Technical Specifications

• Current Rating: 60 amps
• Voltage Rating: 120/240 volts AC
• Number of Poles: 2
• Interrupting Rating: 10 kiloamps
• Trip Type: Common Trip
• Mounting: Plug-On
• Wire Size: 8 to 1/0 AWG (Copper/Aluminum)
• Length: 1.9 inches
• Width: 2.9 inches
• Height: 2.5 inches
• Approval: UL 489
• Used On: BR Series Load Center

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: BR260
