Square D BJL36020 Circuit Breaker, P 20A 3 Pole 600Y/347VAC Replacement MPN

Product Description

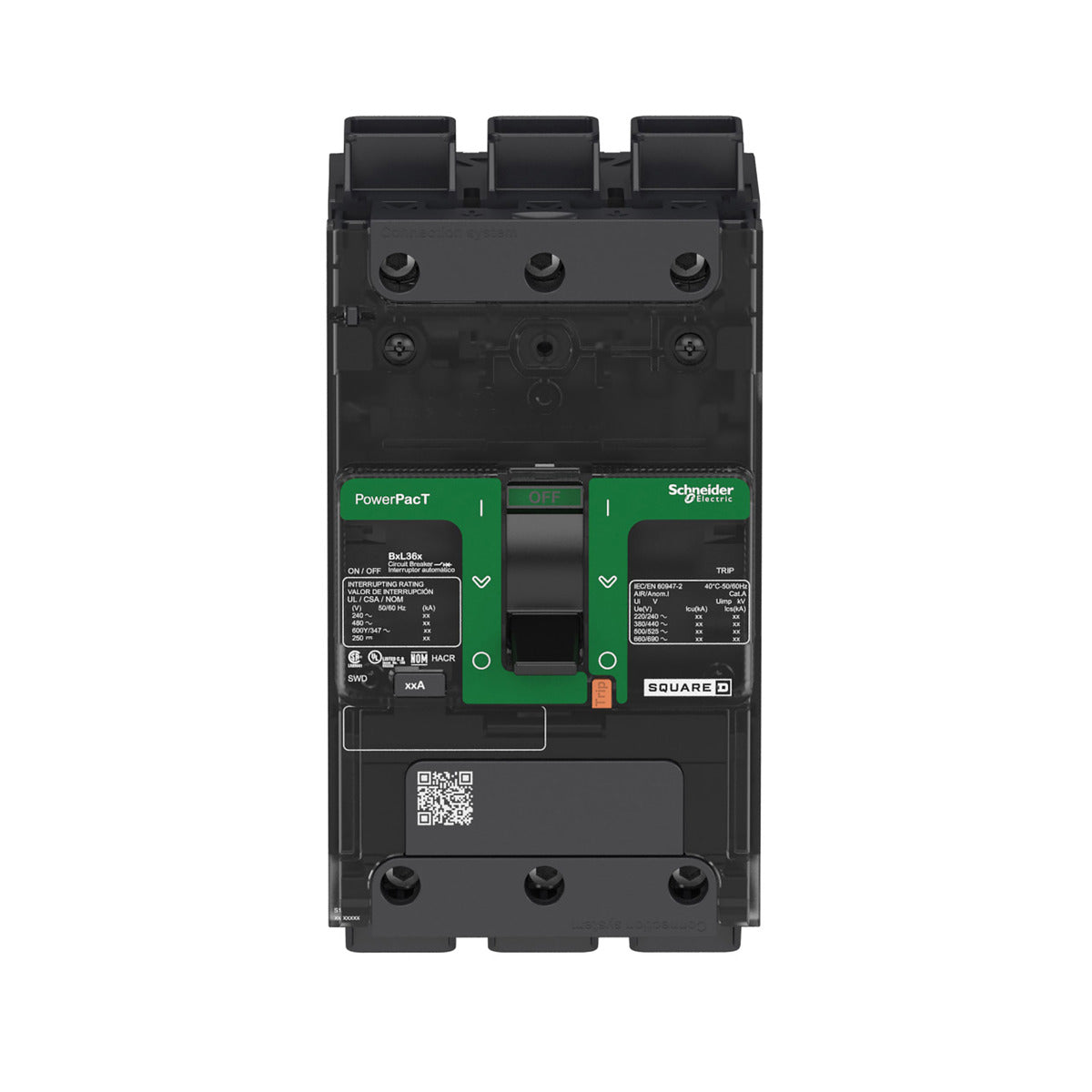

The Square D BJL36020 circuit breaker provides thermal-magnetic circuit protection at a breaking capacity of twenty-five kiloamperes at six hundred Y/three hundred forty-seven VAC. This model features dual-break rotating contacts which minimize peak current during short-circuit faults. It is designed with a push-to-trip button for manual operation.

• Thermal-magnetic protection
• Breaking capacity of 25kA
• Integral push-to-trip button

Product Highlights

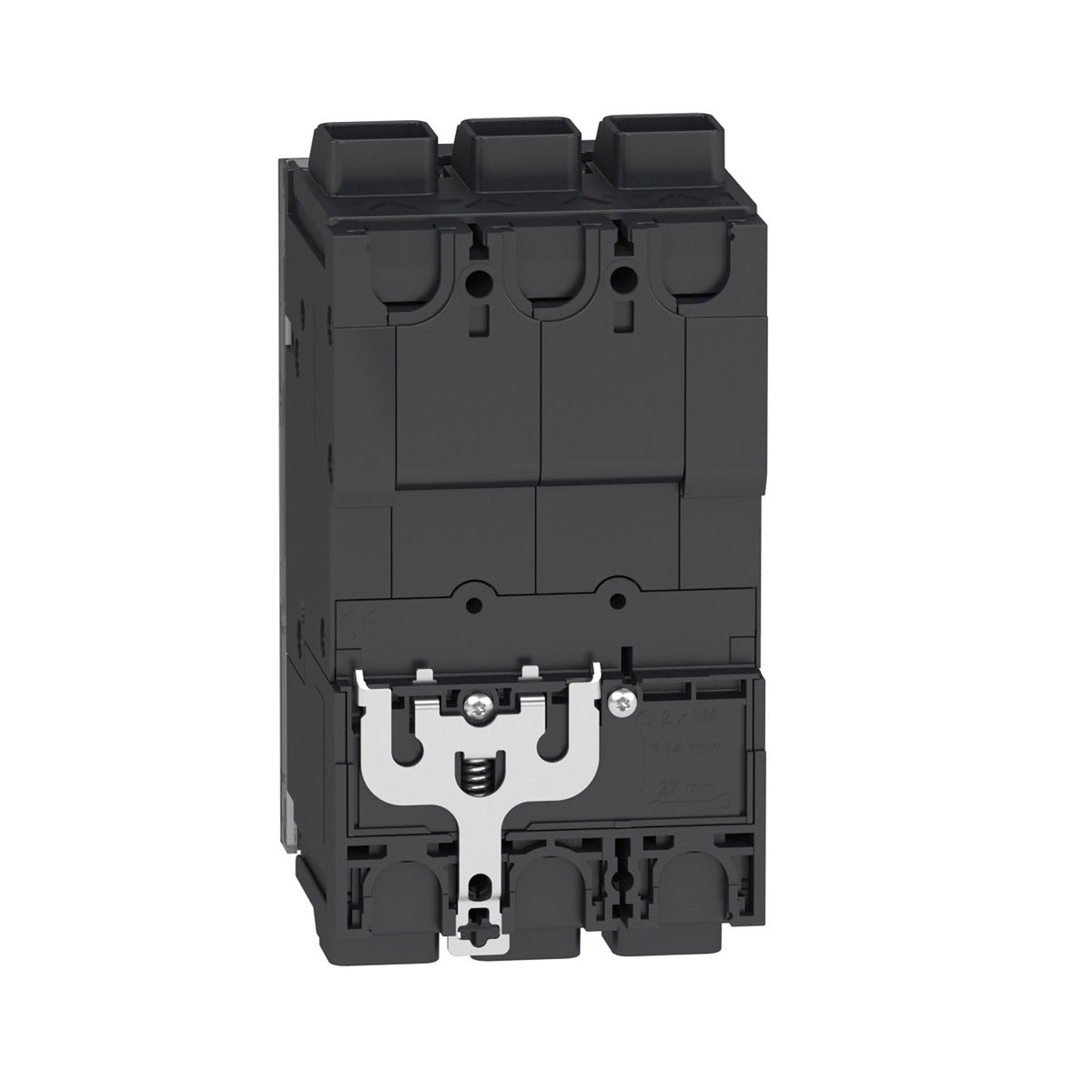

This circuit breaker supports flexibility in mounting with options for both traditional screw and DIN rail installations. It utilizes EverLink lugs, reducing cable loosening over time. This model has a continuous current rating of 80% and is compliant with various standards including UL, CSA, and IEC.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: BJL36020
• Voltage: 690 Volt
• Amperage: 20 Amp
• Number of Poles: 3 Pole
• Depth: 80 mm
• Width: 81 mm
• Height: 137 mm
• Weight: 2.37 lb
• Country of Origin: Mexico
