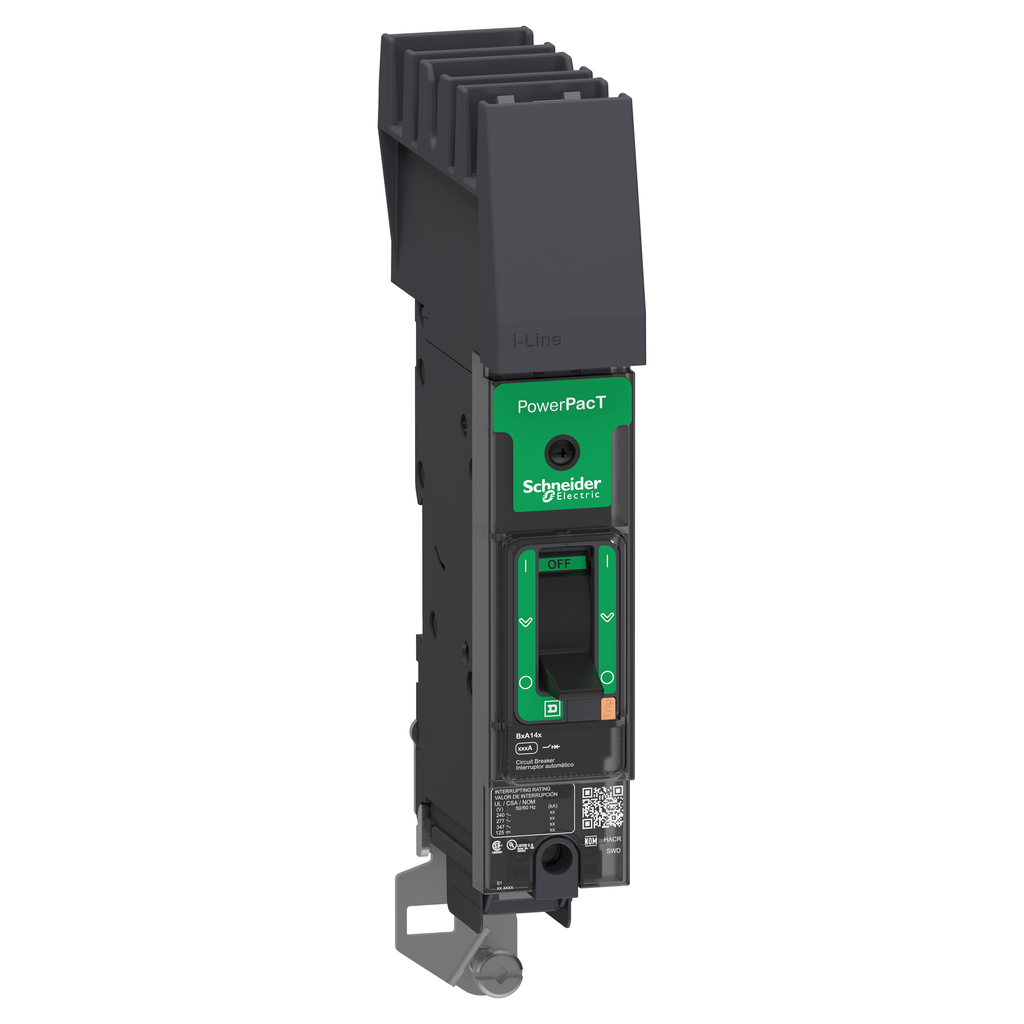

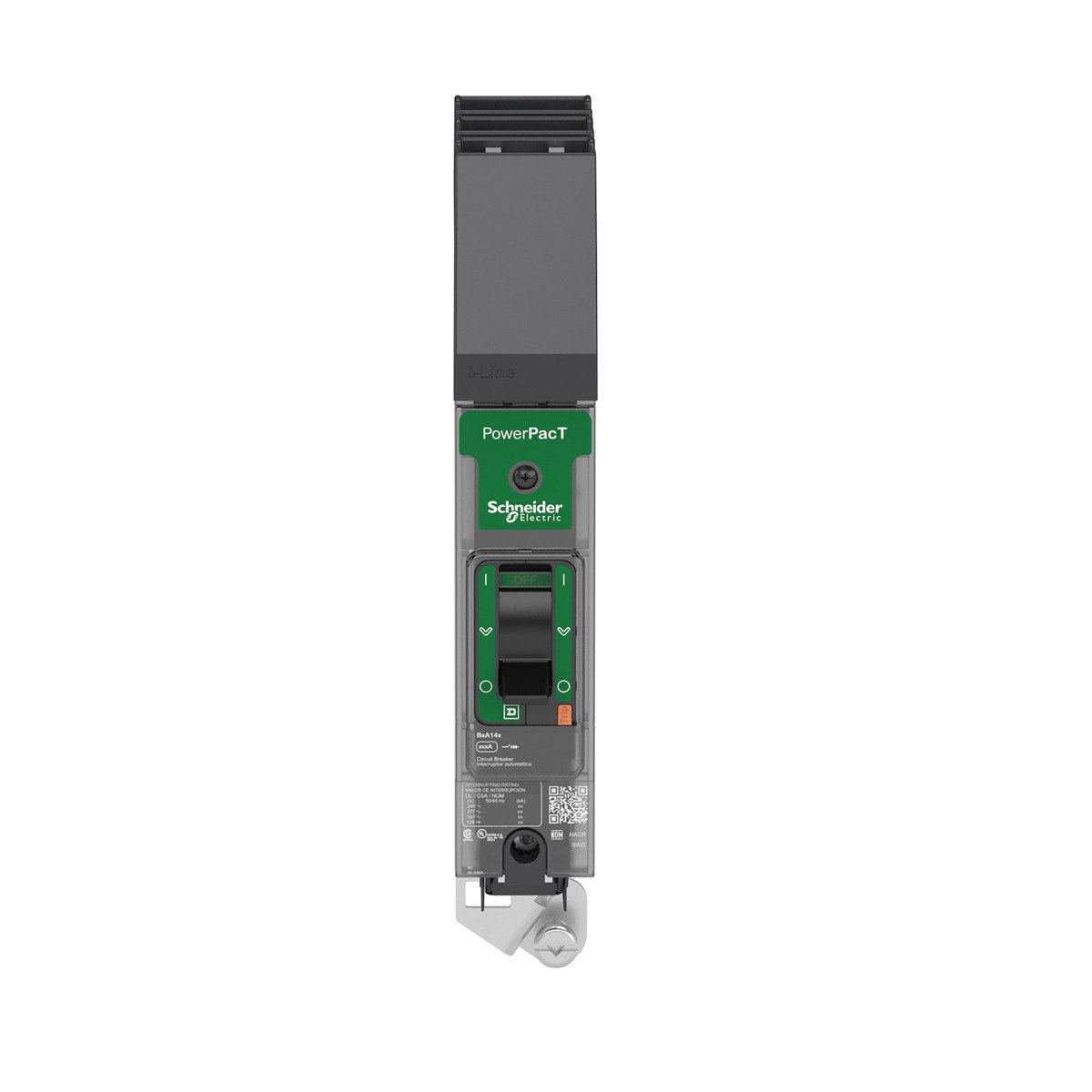

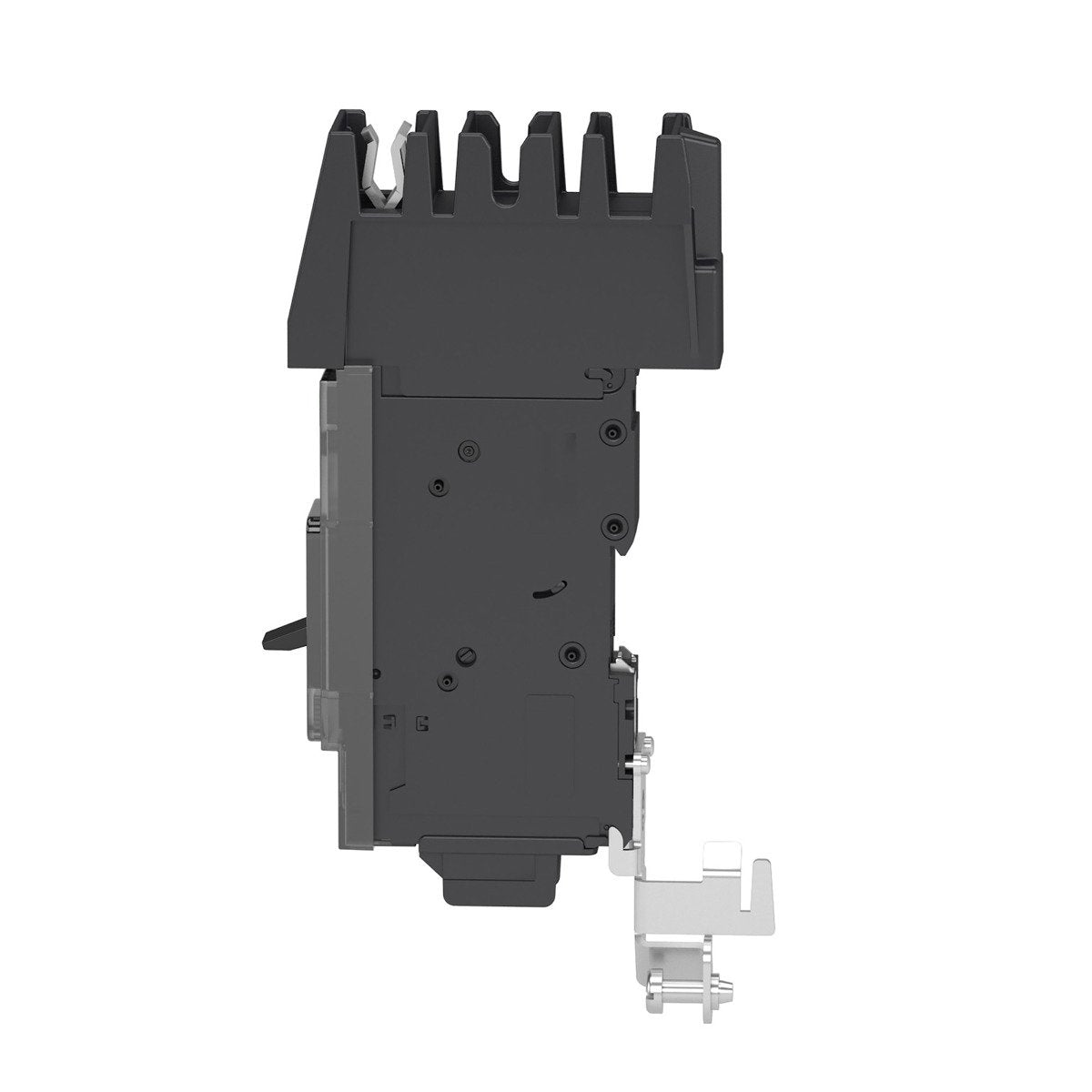

Square D BJA160205 Circuit Breaker PowerPacT B 20A 1 Pole 600Y/347VAC 25kA

Product Description

The Square D BJA160205 is a PowerPacT B-Frame circuit breaker offering thermal-mechanical protection in a compact design. It features thermal magnetic protection with a breaking capacity of twenty-five kiloamps at six hundred volts Y/three hundred forty-seven volts AC. This circuit breaker includes dual-break rotating contacts to decrease peak current during a short circuit. An integral push-to-trip button is implemented in the cover for manual tripping.

• Thermal magnetic circuit protection
• Breaking capacity of 25kA at 600Y/347VAC
• Meets UL, CSA, NOM, and IEC standards

Product Highlights

The PowerPacT B-Frame circuit breaker is available in one to four-pole unit mount constructions and one to three-pole I-Line constructions. This unit features I-Line terminations on the line side and mechanical lugs on the load side, allowing for seamless integration into various electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: BJA160205
• Number of Poles: 1 Pole
• Voltage: 240 Volt
• Amperage: 20 Amp
• Weight: 1.41 lb
• Width: 27 mm
• Height: 137 mm
• Depth: 89 mm
