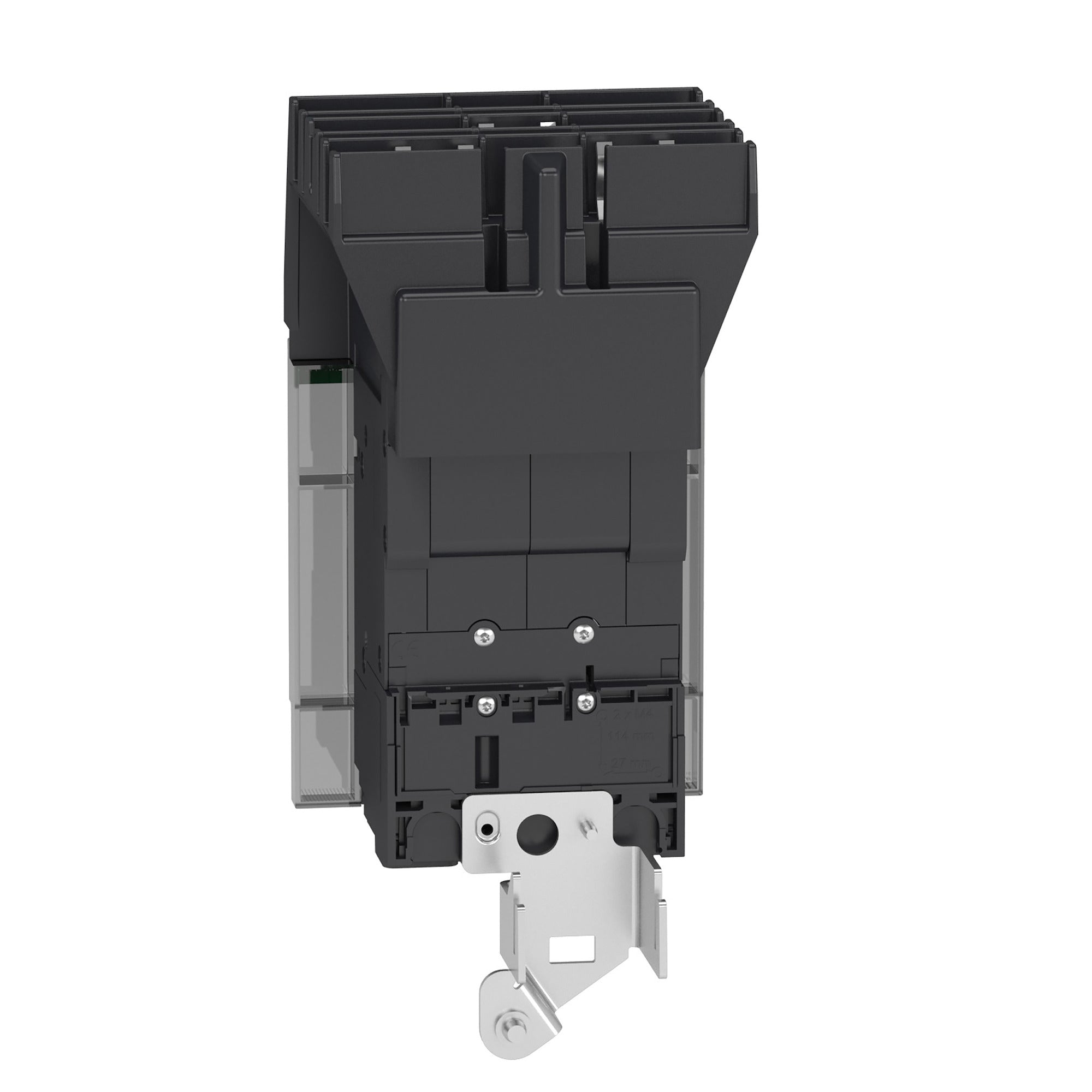

Square D BGA36110 Circuit Breaker Power 110A (3 Pole) Replacement MPN

Product Description

Square D BGA36110 is a circuit breaker designed for power distribution applications. It offers thermal and mechanical protection in a compact design. This PowerPacT B-Frame circuit breaker has a thermal magnetic protection with a breaking capacity of eighteen kiloamperes at six hundred volt, three hundred forty-seven volt alternating current. The dual-break rotating contacts minimize peak current during short circuit events. A push-to-trip button allows manual tripping of the circuit breaker. The circuit breaker features I-Line terminations on the line side and mechanical lugs on the load side.

• Continuous current rating of eighty percent with ABC phase connections.
• Available in one to four pole configurations.
• Meets UL, CSA, NOM, and IEC standards; CE marked.

Product Highlights

This circuit breaker is ideal for providing overload and short circuit protection. It is suitable for various applications in low voltage power distribution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: BGA36110
• Frame Type: B-FRAME
• Voltage Rating: 525 Volt
• Amperage: 110 Amp
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 18kA, 35kA, 65kAIC
• Weight: 2.90 lb
• Dimensions: 3.70 inches (Height) x 3.19 inches (Width) x 0.79 inches (Depth)
