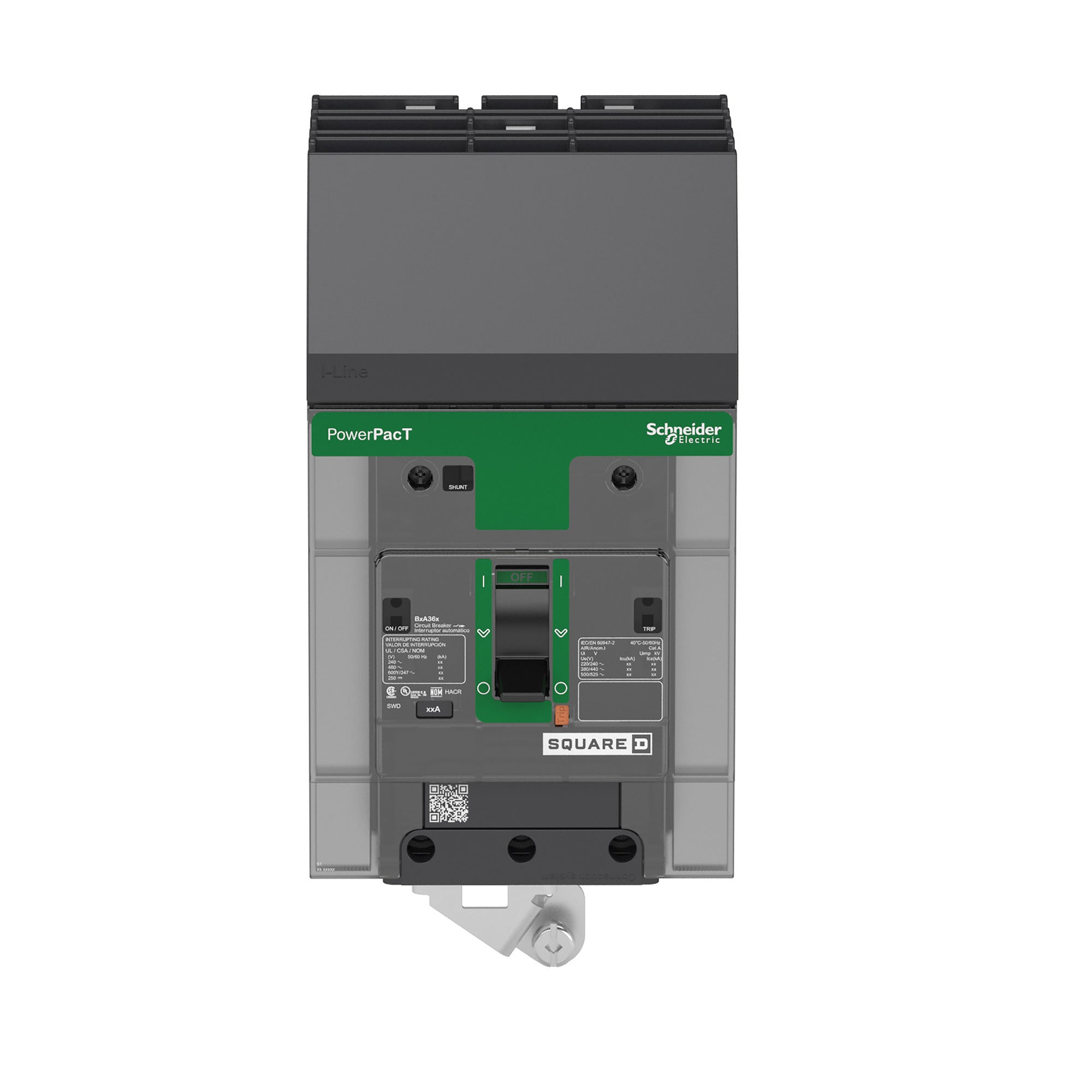

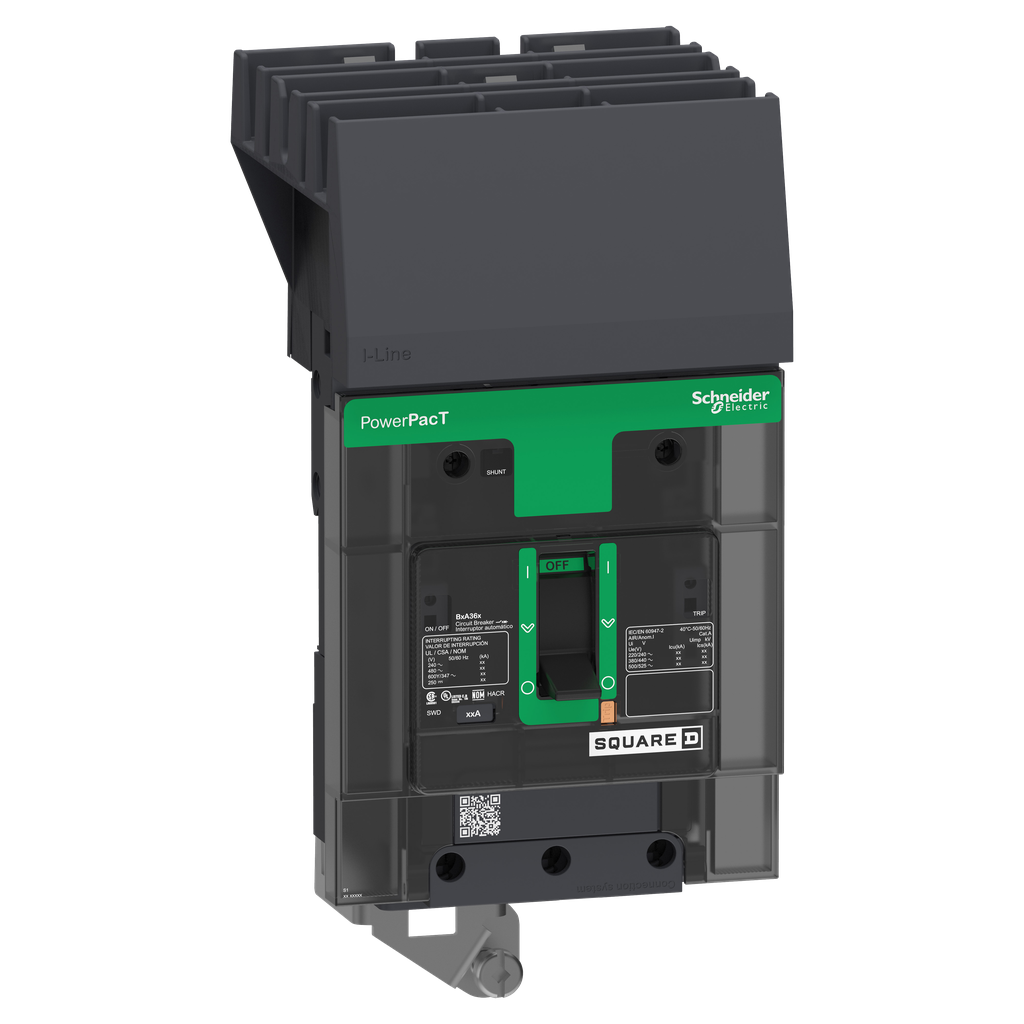

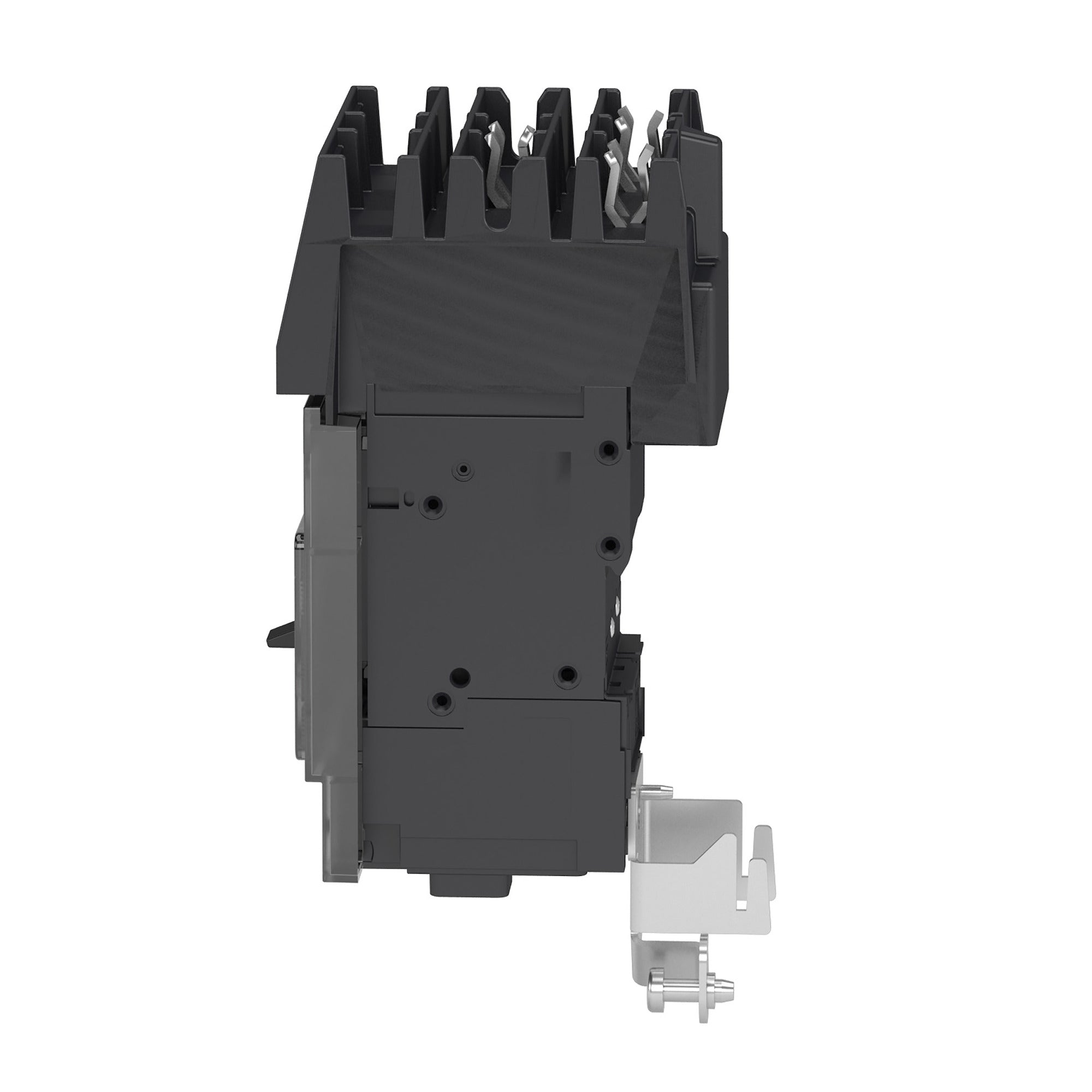

Square D BGA36070 Circuit Breaker PowerPacT B 70A 3 Pole 600Y/347VAC 18kA

Product Description

This Square D BGA36070 circuit breaker provides reliable thermal-mechanical protection. It features a compact design and a wide range of connection options. The breaker offers thermal magnetic protection with a breaking capacity of eighteen kiloamperes at six hundred volts Y/three hundred forty-seven volts AC. Its dual-break rotating contacts help manage peak current during short circuit conditions. The built-in push-to-trip button allows for manual circuit interruption.

It is available in configurations of one to four poles for unit mount and one to three poles for I-Line construction. The I-Line circuit breakers come with a shrouded plug for added safety. The BGA36070 unit has I-Line terminations on the line side and mechanical lugs for load connections. This breaker has a continuous current rating of eighty percent with an ABC phase connection and complies with UL, CSA, NOM, and IEC standards.

• Breaking capacity of eighteen kiloamperes
• Rated for three poles
• Complies with multiple international standards

Product Highlights

This product is designed for thermal and mechanical circuit protection.

Product Information

Standard Information

• Catalog Number: BGA36070
• Brand: Square D

Technical Specifications

• Voltage: 525 Volt
• Amperage: 70 Amp
• Number of Poles: 3 Pole
• Weight: 2.90 lb
• Country of Origin: Mexico
• Standard: UL, CSA, NOM, IEC
• Mounting Type: I-Line
• Storage Temperature: -50 to 85 degrees C
